126
Remote I/O Terminals with Transistors Section 5-5

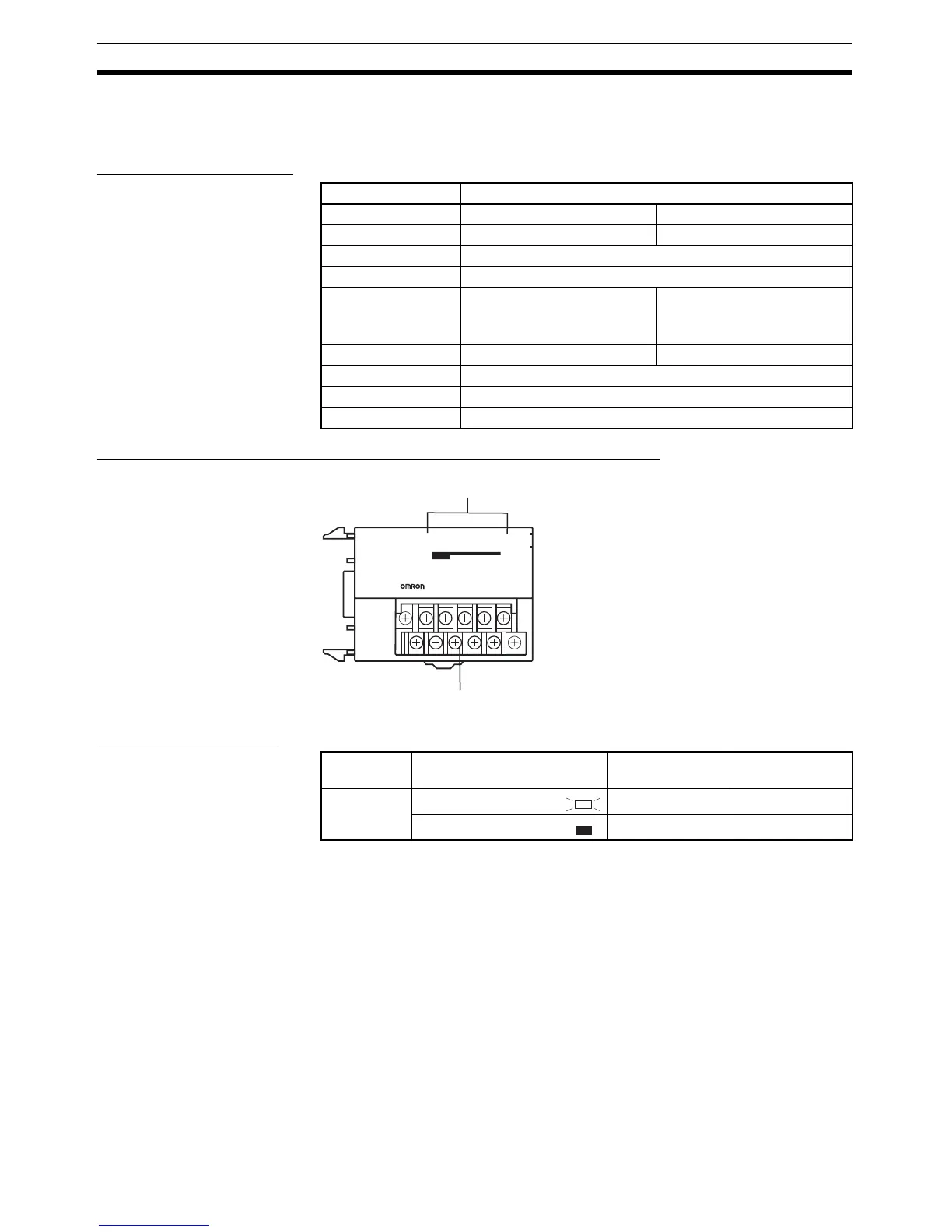

5-5-11 Remote I/O Terminal Expansion Units with 8 Transistor Outputs:
XWT-OD08 (NPN) and XWT-OD08-1 (PNP)
Output Specifications
Component Names and Functions: XWT-OD08 and XWT-OD08-1
Operation Indicators The operation indicators show the status of the outputs.
Item Specifications
Model XWT-OD08 XWT-OD08-1
Internal I/O common NPN PNP
Output points 8 points
Rated output current 0.5 A/point, 2.0 A/common
Residual voltage 1.2 V max.
(at 0.5 A between each output
terminal and G)
1.2 V max.
(at 0.5 A between each output
terminal and V)
Leakage current 0.1 mA max. 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
XWT-OD08
REMOTE TERMINAL
0UT
07654321
Operation indicators
Indicate the output status of each contact.
Detachable terminal block
Indicator
name
Indicator status Definition Meaning
0 to 7
Lit yellow.
Contacts ON Contacts are ON
OFF
Contacts OFF Contacts are OFF
