Connector Terminals with Transistors Section 5-6

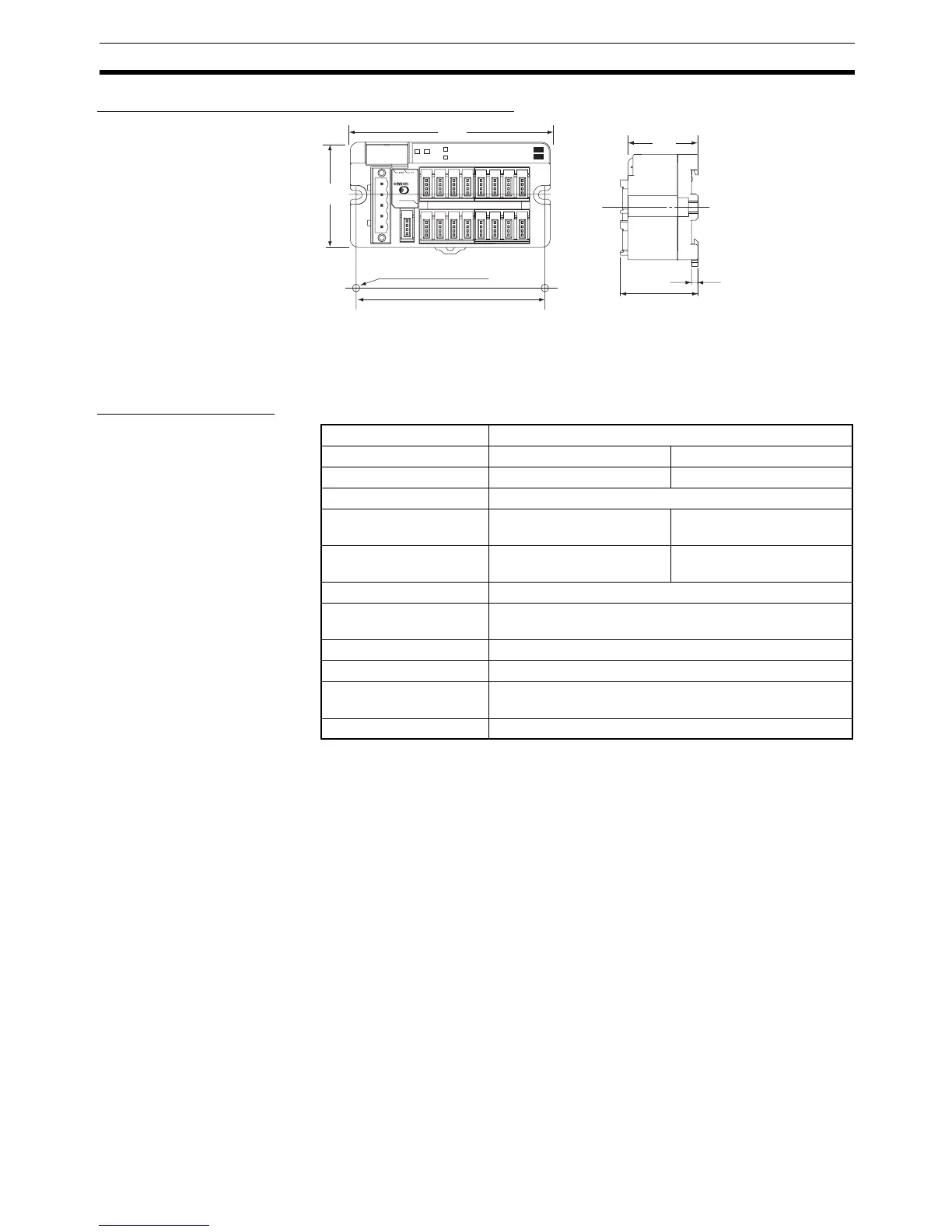

Dimensions (DRT2-MD16S and DRT2-MD16S-1)
5-6-5 Transistor Remote Input Terminals with 16 Points and
Connectors: DRT2-ID16ML(X) (NPN) and DRT2-ID16ML(X)-1 (PNP)
Input Specifications
Note All 16 inputs can be ON simultaneously if the Remote I/O Terminal is mounted
facing up, but sufficient space will need to be allowed between Units depend-
ing on the ambient temperature. Refer to the Dimensions diagram on
page 156 for details.
95
33.3
50
88±0.2
MS NS
SHT O 0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
IN
SHT 1
OUT
NODE ADDRESS
IN
0-7
OUT 0-7
36.8
3
Two, 4.2 dia. or M4 mounting holes
Item Specification
Model DRT2-ID16ML(X) DRT2-ID16ML(X)-1
Internal I/O common NPN PNP
Input points 16 points
ON voltage 17 V DC min. (between
each input terminal and V)
17 V DC min. (between
each input terminal and G)
OFF voltage 5 V DC max. (between
each input terminal and V)
5 V DC max. (between
each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max./point at 24 V DC
3.0 mA min./point at 17 V DC
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Max. simultaneously ON
input points
16 points (See note.)
Number of circuits 16 points with one common
