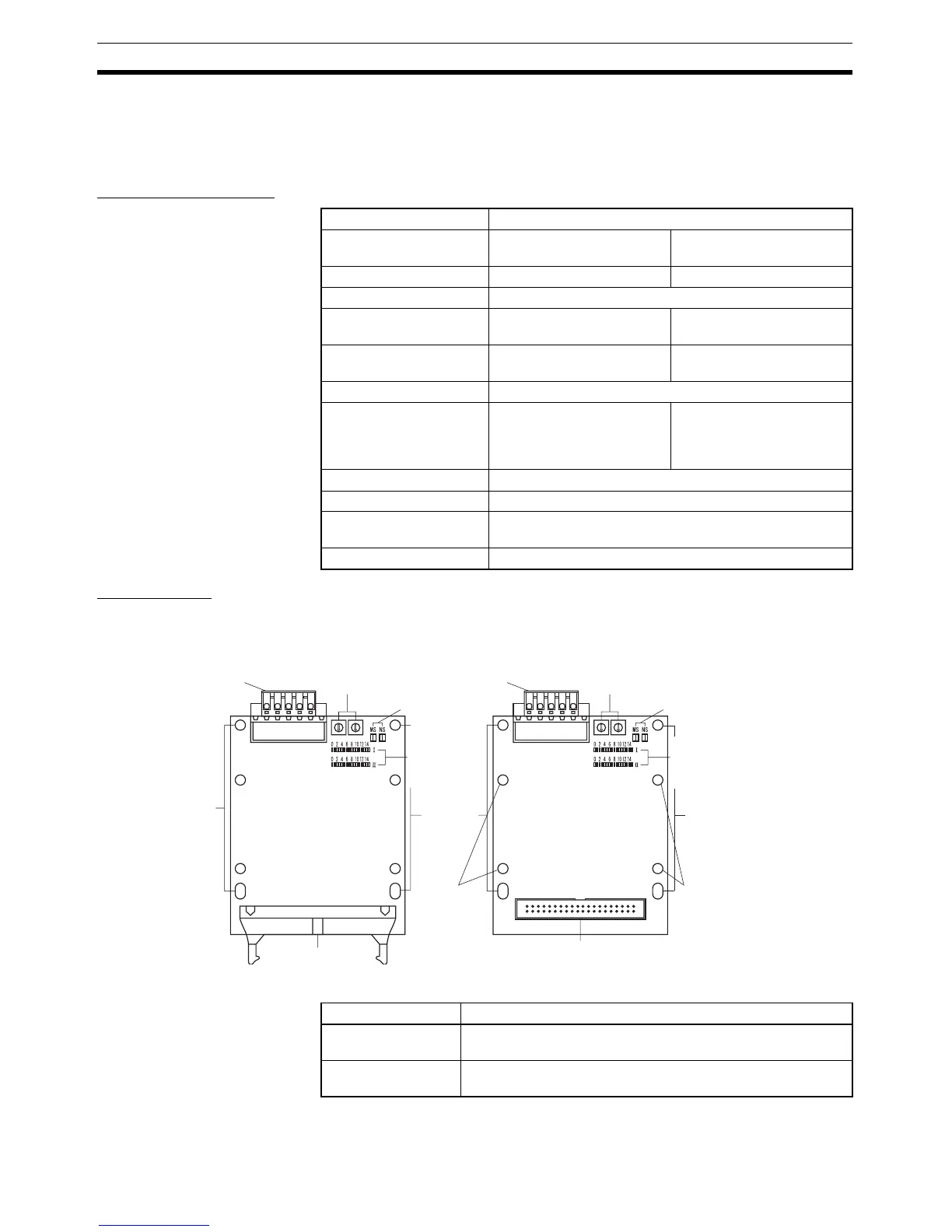

Connector Terminals with Transistors Section 5-6
5-6-10 Board-type Connector Terminals with 32 Inputs and MIL
Connectors: DRT2-ID32B (NPN)/DRT2-ID32B-1 (PNP) and
DRT2-ID32BV (NPN)/DRT2-ID32BV-1 (PNP)
Input Specifications
Components
Input Indicators
Note “m” is the first word allocated to the Remote I/O Terminal.
Item Specification
Model DRT2-ID32B
DRT2-ID32BV
DRT2-ID32B-1
DRT2-ID32BV-1
Internal I/O common NPN PNP
Input points 32 points
ON voltage 17 V DC min. (between
each input terminal and V)
17 V DC min. (between
each input terminal and G)
OFF voltage 5 V DC max. (between
each input terminal and V)
5 V DC max. (between
each input terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. at 24 V DC
3.0 mA min. at 17 V DC
(between each input termi-
nal and V terminal)
6.0 mA max. at 24 V DC
3.0 mA min. at 17 V DC
(between each input termi-
nal and G terminal)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Max. simultaneously ON
input points
32 points
Number of circuits 32 points with one common circuit
DeviceNet
communications
connector
Node address
switches
(×10)
DeviceNet
operation
indicators
I/O
operation
indicators
Board
mounting
holes
Board
mounting
holes
I/O connector (MIL) I/O connector
DeviceNet
operation
indicators
Node address
switches
(×10)
DeviceNet
communications
connector
I/O
operation
indicators
Board
mounting
holes
User
customized
board
mounting
holes
User
customized
board
mounting
holes
(×1) (×1)
DRT2-ID32B (NPN)/DRT2-ID32B-1 (PNP)
DRT2-ID32BV (NPN)/DRT2-ID32BV-1 (PNP)
Name Meaning
I0 to I15 Indicate the status of bits (contacts) 0 to 15 in word m. Lit
when input is ON; not lit when input is OFF.
II0 to II15 Indicate the status of bits (contacts) 0 to 15 in word m+1. Lit
when input is ON; not lit when input is OFF.
