Connector Terminals with Transistors Section 5-6
simultaneously. For example, at an ambient temperature of 55°C, the Ter-
minals must be separated by at least 10 mm.

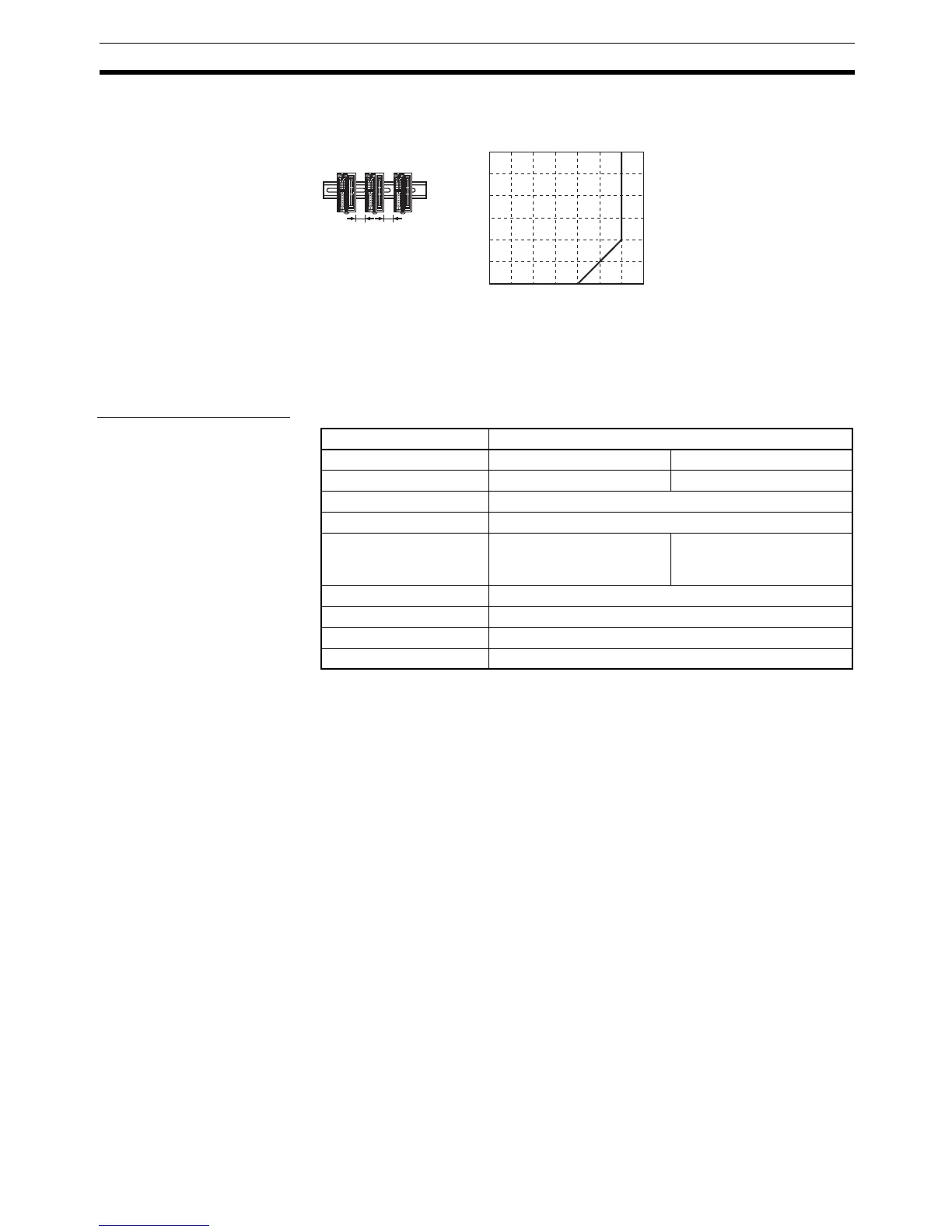

5-6-6 Connector Terminals (MIL Connector Type with 16 Outputs):
DRT2-OD16ML(X) (NPN) and DRT2-OD16ML(X)-1 (PNP)
Output Specifications
Note Do not allow the total load current to exceed 2 A and do not allow the load cur-
rent on either the V or G terminal to exceed 1 A.
30
20
10
0
40 45 50 55
L L
Ambient operating temp. (°C)
Distance between
Units L (mm)
Item Specification
Model DRT2-OD16ML(X) DRT2-OD16ML(X)-1
Internal I/O common NPN PNP
Output points 16 points
Rated output current 0.3 A/point, 2 A/common (See note.)
Residual voltage 1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
