Connecting Communications Cables to Environment-resistive Slaves Section 6-2
6-2-2 System with Slaves Using Round Connectors and Regular Square
Connectors
6-2-3 Communications Cables for Environment-resistive Terminals

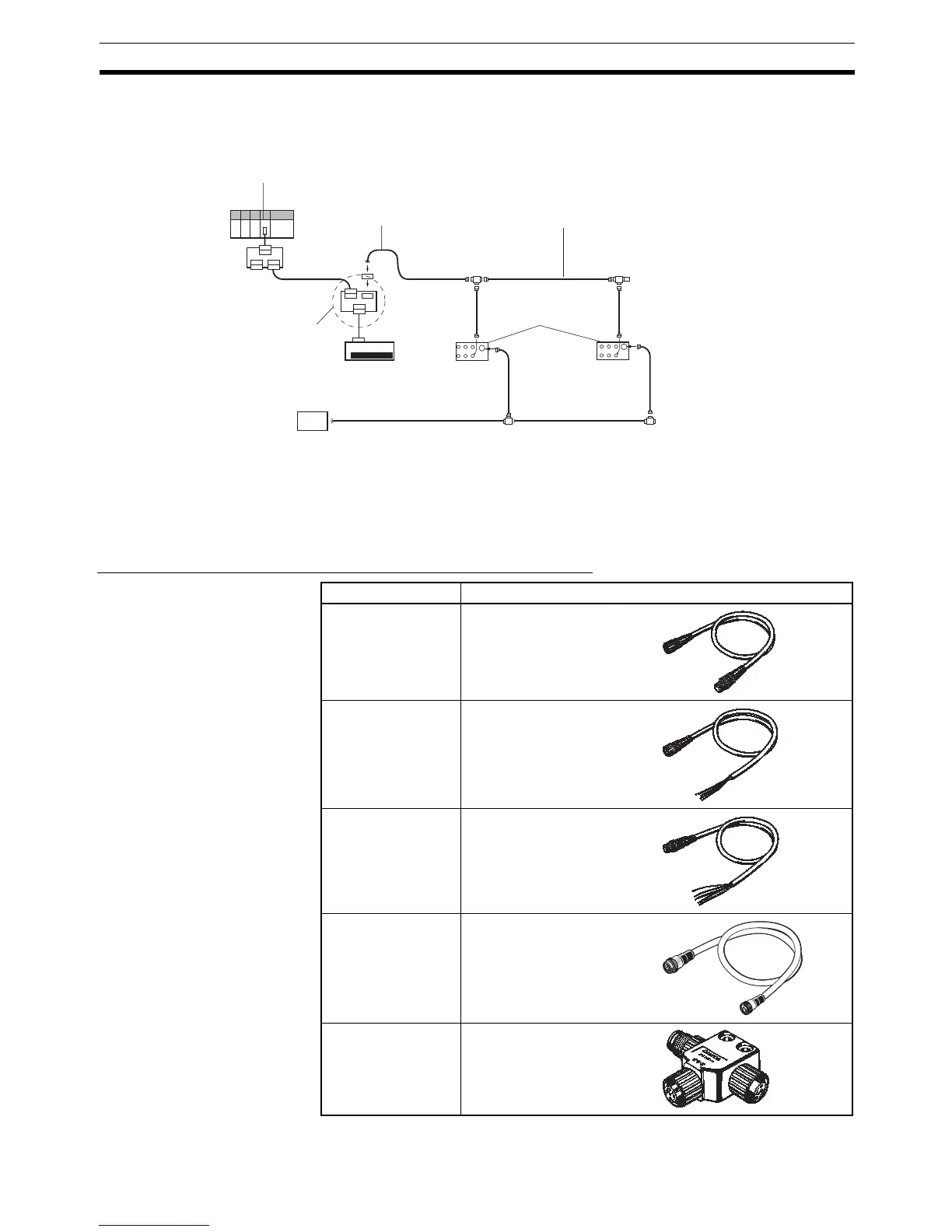

Always use the following communications cables with connectors with Envi-
ronment-resistive Terminals.
Thin Cables with Connectors: Micro-size (previous M12)
CS/CJ-series
DeviceNet Master Unit
DCA1-5CN@@ @1 Thin Cable or
DCA2-5CN@@ @1 Thick Cable with
shielded connector on one end
DCA1-5CN@@W1 Thin Cable or
DCA2-5CN@@W1 Thick Cable with
shielded connectors on both ends.
Slaves using different
kinds of connectors can
be connected through a
T-branch Tap
Environment-resistive
Output Terminal
T-branch Tap
DCN2-1 (micro-size),
DCN3-11 or DCN3-12
(mini-size) T-branch
Connector
Power supply
T-branch Tap
I/O power supply cable
Slave with normal
connector
Model Description
DCA1-5CN@@W1 Cable with shielded connec-
tors on both ends
DCA1-5CN@@F1 Cable with shielded connector
(female socket) on one end
DCA1-5CN@@H1 Cable with shielded connector
(male plug) on one end
DCA1-5CN@@W5 Cable with shielded connector
on both ends (male plug on
mini-size end, female socket
on micro-size end)
DCN2-1 Shielded T-branch Connector
(for one branch line)
