Remote I/O Terminals with Transistors Section 5-5

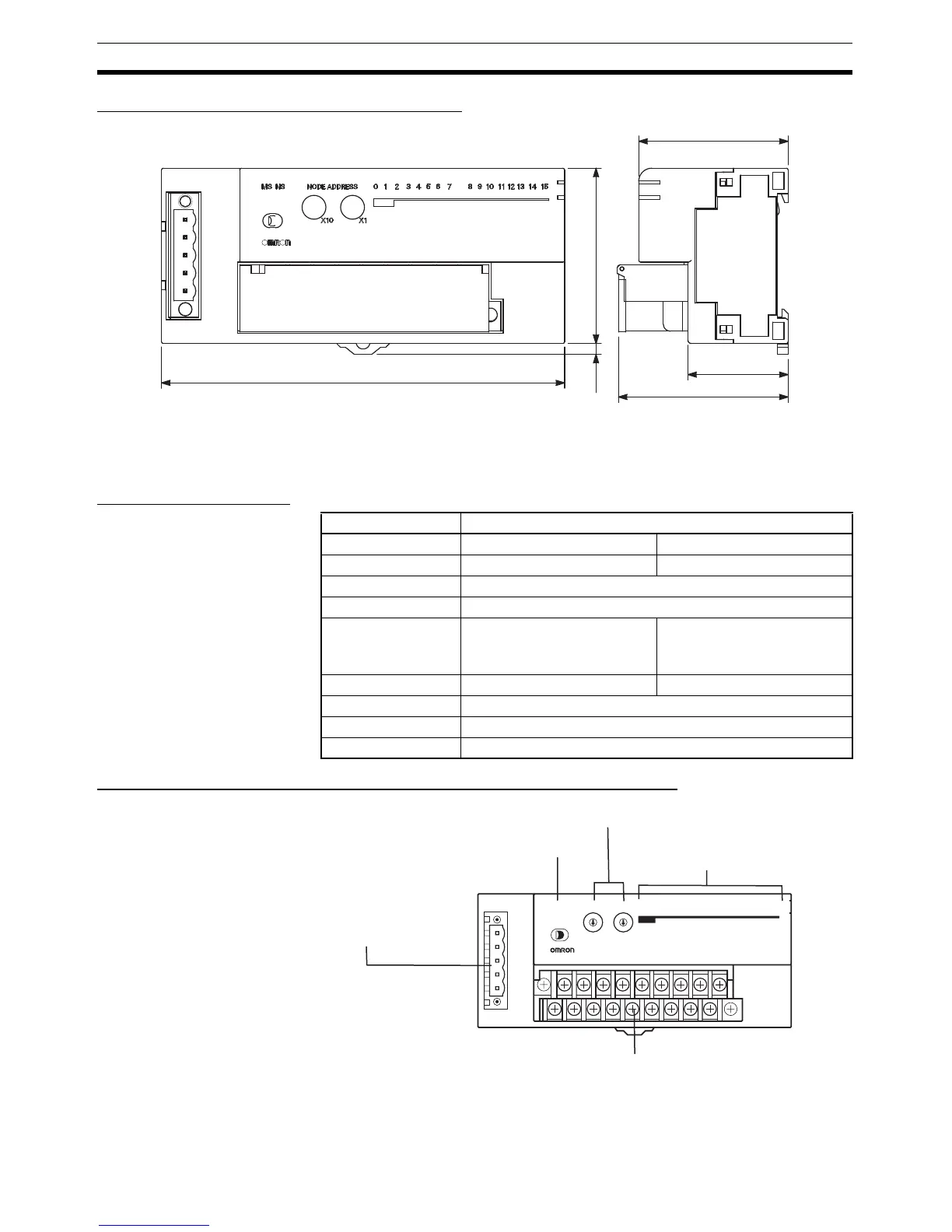

Dimensions: DRT2-ID16 and DRT2-ID16-1
5-5-6 Remote I/O Terminals 16 Transistor Outputs: DRT2-OD16 (NPN)
and DRT2-OD16-1 (PNP)
Output Specifications
Component Names and Functions: DRT2-OD16 and DRT2-OD16-1
43.9
115
3.1
49.7
29.9
50
Item Specifications
Model DRT2-OD16 DRT2-OD16-1
Internal I/O common NPN PNP
Output points 16 points
Rated output current 0.5 A/point, 4.0 A/common
Residual voltage 1.2 V max.
(at 0.5 A between each output
terminal and G)
1.2 V max.
(at 0.5 A between each output
terminal and V)
Leakage current 0.1 mA max. 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
DRT2-OD16
REMOTE TERMINAL
5
X1
4
3
2
1
0
9
8
7
6
5
X10
4
3
2
1
0
9
8
7
6
MS NS
OUT
NODE ADDRESS
014151312111098765432
1
Communications
connector
DeviceNet
indicators
Rotary switches
Used to set node address.
Output indicators
Indicate the output status of each contact.
Detachable
terminal block.
