310
Maintenance Information Window Section 7-3
Specifications in 7-6-1 DRT2-TS04T and DRT2-TS04P Temperature Input
Terminals.

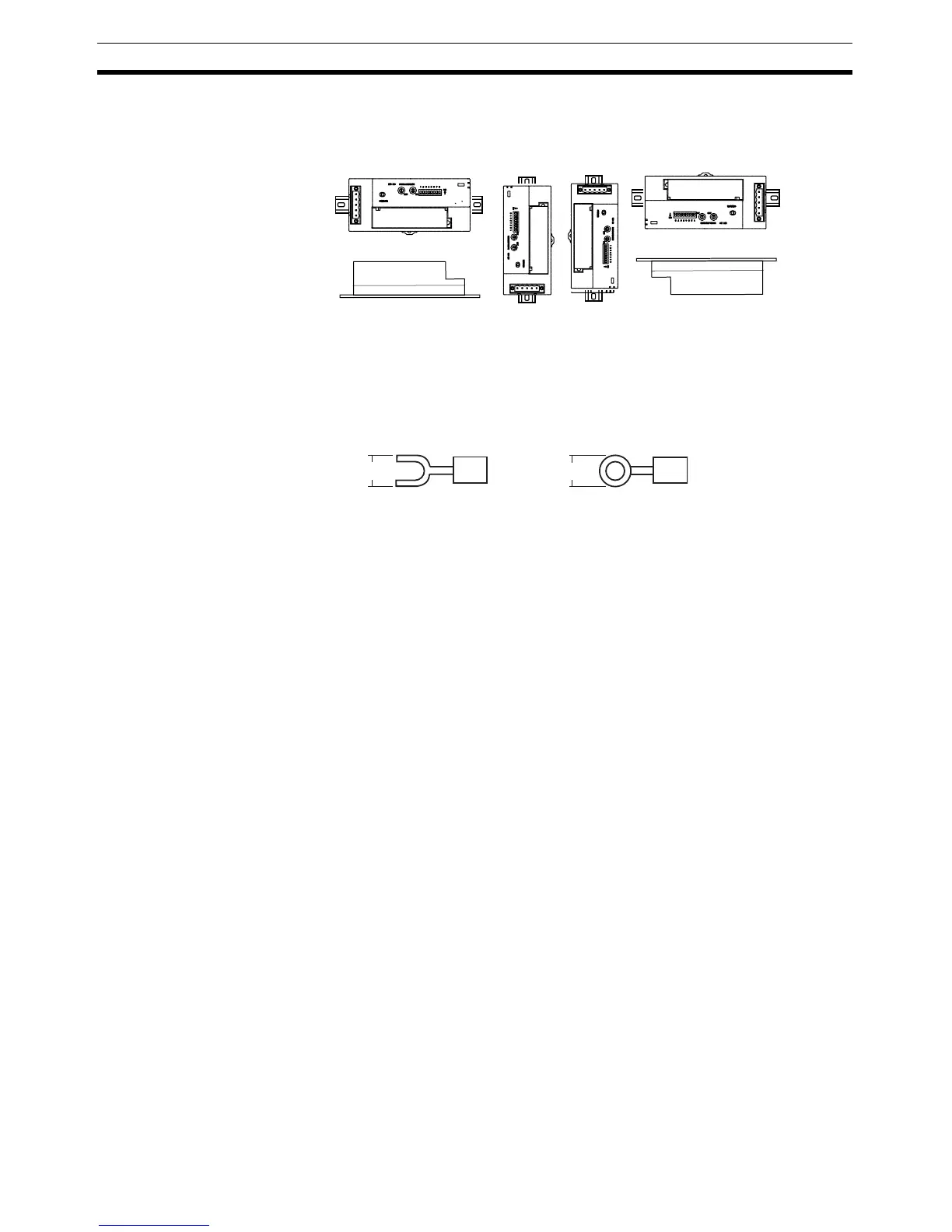

7-2-4 Wiring the I/O Lines
The I/O lines are all wired to M3 screw terminals.
Connect M3 crimp terminals to the wires and then connect them to the Termi-
nal Block.
Tighten the screws to a torque of 0.5 N·m.
7-3 Maintenance Information Window
This section describes the Maintenance Information Window, which can be
used to monitor the status of Analog Slaves. The Monitor Device Window can
be used to check the same Slave status information, but the examples in this
section uses the Maintenance Information Window. Refer to 4-1-2 Mainte-
nance Mode Window for details on the differences between the Maintenance
Information Window and the Monitor Device Window.
7-3-1 Checking Maintenance Information
The Maintenance Mode Window can be opened in two ways.
1. Right-click the Main Window to display the popup menu and select Main-
tenance Information.
2. Open the Maintenance Mode Window and double-click the desired Slave’s
icon.
(1)
(2)
(5)(4)(3)
(6)
6.0 mm max.
6.0 mm max.
