61
Functions of General-purpose Slaves and Environment-resistive Slaves Section 4-3

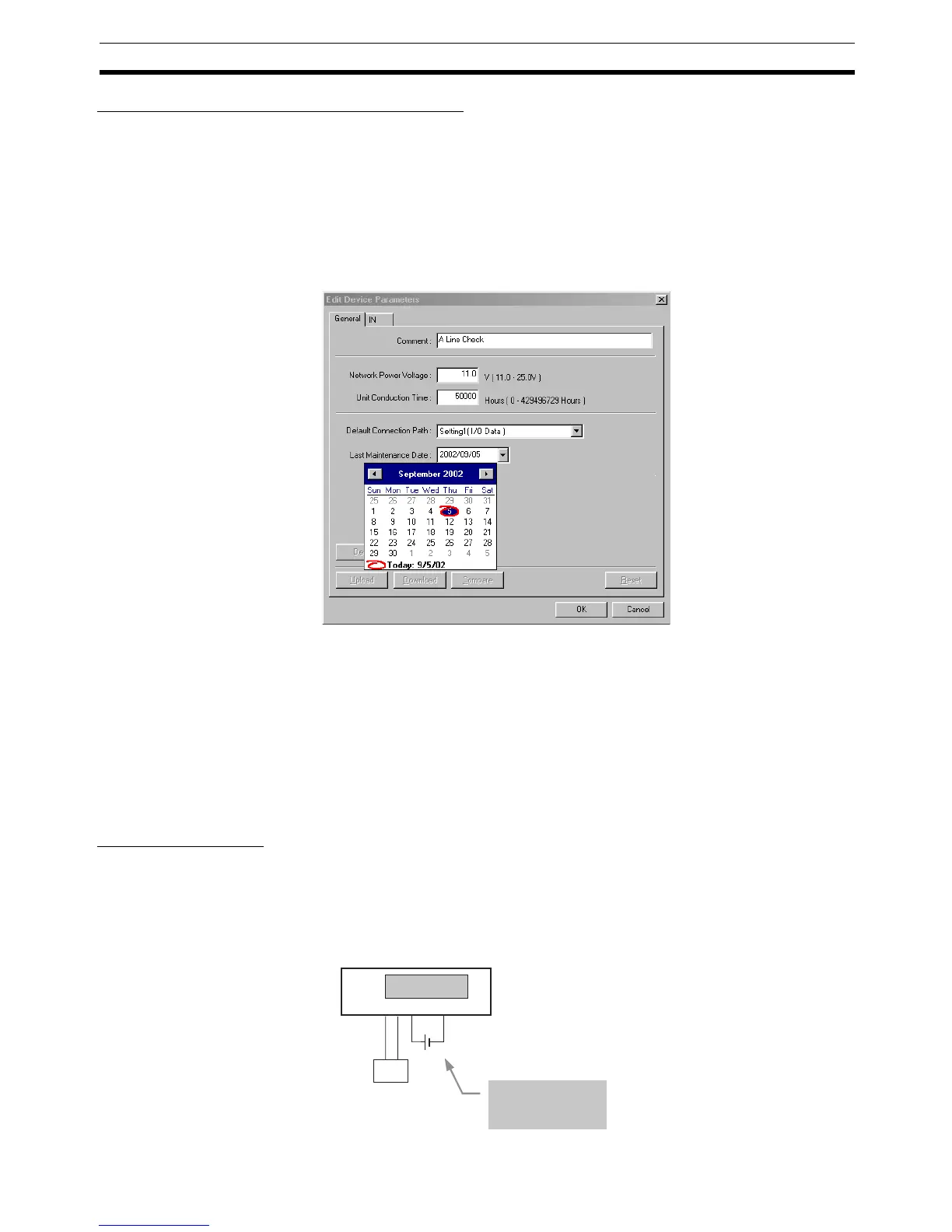

Setting Using the DeviceNet Configurator
1,2,3... 1. From the Main Window, double-click the icon of the Smart Slave to be set
to display the Edit Device Parameters Window. (From the Maintenance
Mode Window, click the right mouse button over the icon of the Smart
Slave to be set and select Parameter and Edit to display the Edit Device
Parameters Window.)
2. Click the General Tab, and select the desired date from the pull-down
menu for the Last Maintenance Date field. (Click the Today Button to enter
the current date.)
3. Click the Download Button, and then click the Reset Button to reset the
Unit.
4. Click the OK Button.
4-3 Functions of General-purpose Slaves and Environment-
resistive Slaves
4-3-1 I/O Power Status Monitor
Function Overview This function is used to detect whether the I/O power is ON.
When the I/O power supply is turned OFF, the Basic Unit I/O Power Voltage
Status Flag or Expansion Unit I/O Power Status Flag in the Status Area is
turned ON. (The Configurator or explicit messages can be used to read the
information.)
Slave
I/O power
voltage
I/O power
Sensor
Monitors whether I/O
power is ON.
