7
DRT2 Slaves Section 1-2
1-2 DRT2 Slaves
The DRT2-series Smart Slaves are classified into the following categories.
• General-purpose Slaves
Slaves with digital I/O functions using standard connectors for communi-
cations cables.
• Environment-resistive Slaves
Slaves with I/O functions using round waterproof connectors for communi-
cations cables.
• Analog Slaves
Slaves with analog I/O functions using standard connectors for communi-
cations cables.

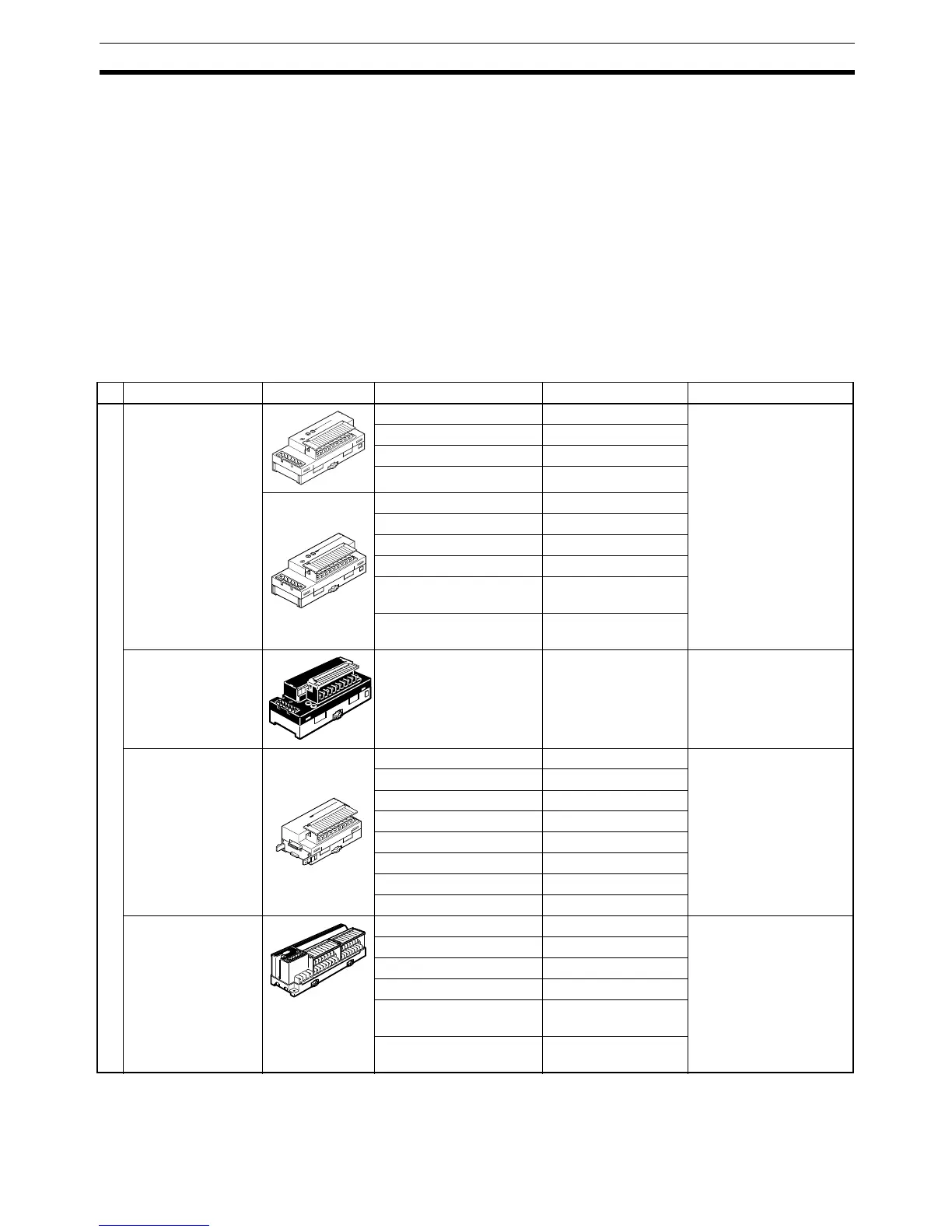

1-2-1 General-purpose Slaves
Name Appearance I/O points Model number Remarks
Remote I/O Terminals
Remote I/O Termi-
nals with Transistors
8 input points (NPN) DRT2-ID08 Terminal block mounted/
removed using screws.
8 input points (PNP) DRT2-ID08-1
8 output points (NPN) DRT2-OD08
8 output points (PNP) DRT2-OD08-1
16 input points (NPN) DRT2-ID16
16 input points (PNP) DRT2-ID16-1
16 output points (NPN) DRT2-OD16
16 output points (PNP) DRT2-OD16-1
8 input points/8 output
points (NPN)
DRT2-MD16
8 input points/8 output
points (PNP)
DRT2-MD16-1
Remote I/O Termi-
nal with Relay Out-
puts
16 output points DRT2-ROS16 Relay outputs
Remote I/O Termi-
nal Expansion Units
with Transistors
16 input points (NPN) XWT-ID16 Expansion Unit for
increasing inputs or out-
puts of the Basic Unit.
16 input points (PNP) XWT-ID16-1
16 output points (NPN) XWT-OD16
16 output points (PNP) XWT-OD16-1
8 input points (NPN) XWT-ID08
8 input points (PNP) XWT-ID08-1
8 output points (NPN) XWT-OD08
8 output points (PNP) XWT-OD08-1
Remote I/O Termi-
nals with 3-tier Ter-
minal Blocks and
Transistors
16 input points (NPN) DRT2-ID16TA Wiring locations easy to
find (wiring to the same
terminal not required).
Cannot be expanded
with an Expansion Unit.
16 input points (PNP) DRT2-ID16TA-1
16 output points (NPN) DRT2-OD16TA
16 output points (PNP) DRT2-OD16TA-1
8 input points/8 output
points (NPN)
DRT2-MD16TA
8 input points/8 output
points (PNP)
DRT2-MD16TA-1
