Maintenance Mode Window and Main Window Section 4-1
Device Parameter
Editing Window

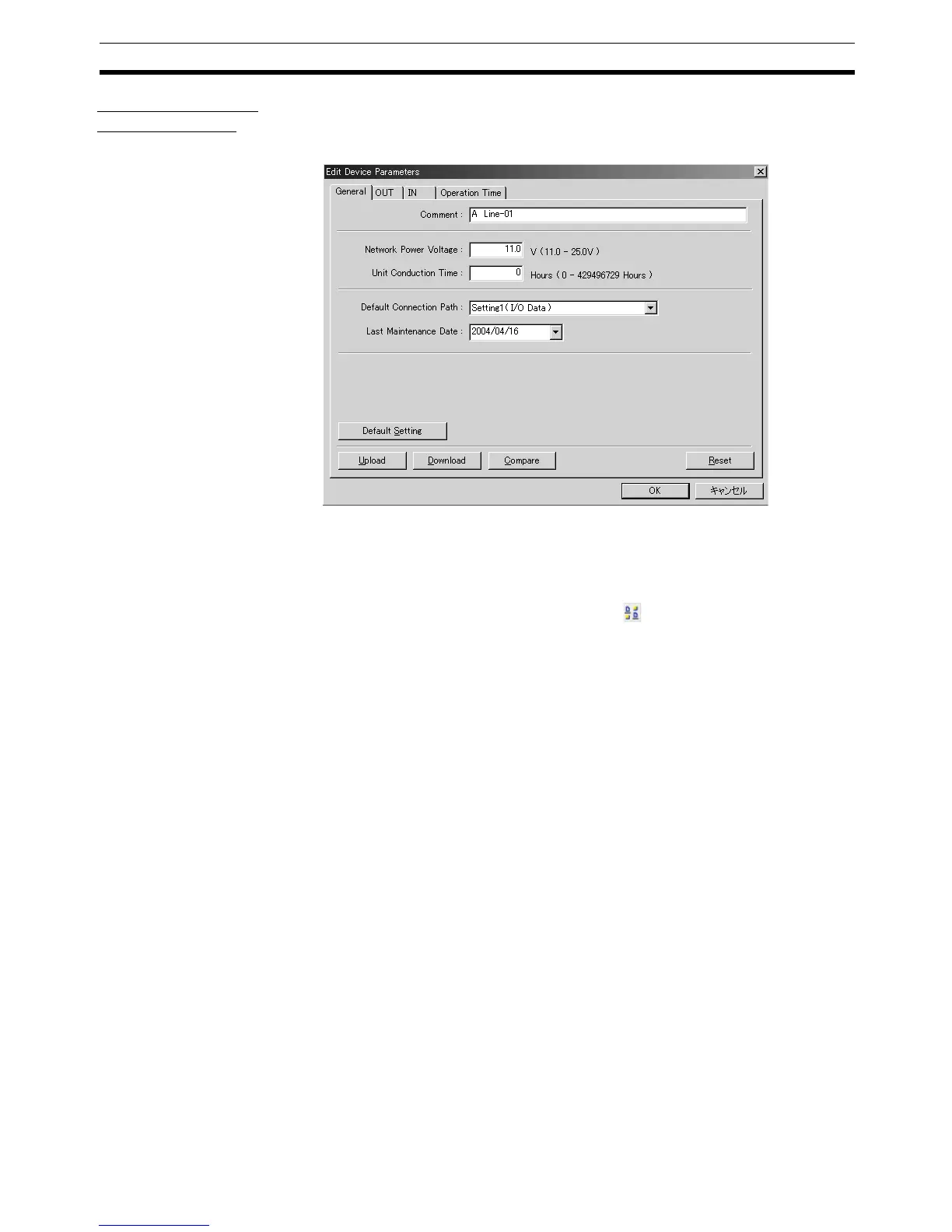

This window is used to set and edit settings for functions. Double-click any
Slave or select the slave, right-click, and select Parameter - Edit from the
popup menu.
4-1-2 Maintenance Mode Window
The Maintenance Mode Window is different from the Main Window and is
used to easily monitor information on the DRT2-series Smart Slaves. The win-
dows can be easily switched by clicking the icon or selecting maintenance
mode under the View Menu. The Maintenance Mode Window is displayed
with a pale blue background.
The Maintenance Mode Window displays information on the DRT2-series
Smart Slaves in the Maintenance Information Window. Open the Maintenance
Mode Window when to access status information on any of the Smart Slaves.
In the Network Configuration Window, when an error is detected in any of the
Slaves' settings, a yellow warning icon indicating the error details will be dis-
played next to the corresponding Slave icon. This function allows the user to
know the status of each device, the maintenance period, and the location
where an error has been detected.
Note The Maintenance Mode Window is not refreshed continuously. The status that
is display is read when the network is uploaded. To see the most recent sta-
tus, click the refresh maintenance information icon to read the current status
information, or use the Device Monitor Window to see continuously updated
Smart Slave status. (Refer to 4-1-3 Device Monitor Window.)
