129
Remote I/O Terminals with Transistors Section 5-5

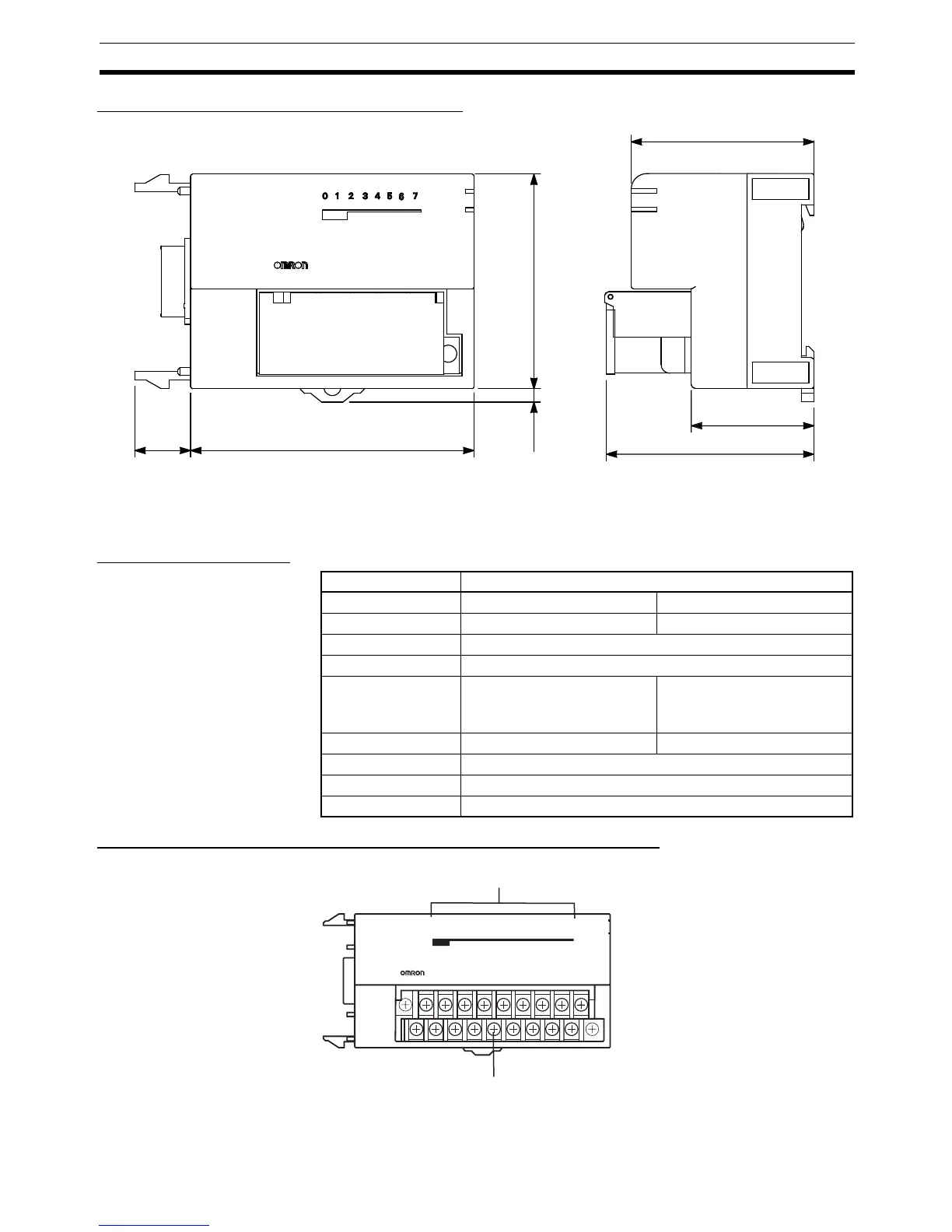

Dimensions: XWT-OD08 and XWT-OD08-1
5-5-12 Remote I/O Terminal Expansion Units with 16 Transistor Outputs:
XWT-OD16 (NPN) and XWT-OD16-1 (PNP)
Output Specifications
Component Names and Functions: XWT-OD16 and XWT-OD16-1
13
66
3.1
50
4
Item Specifications
Model XWT-OD16 XWT-OD16-1
Internal I/O common NPN PNP
Output points 16 points
Rated output current 0.5 A/point, 4.0 A/common
Residual voltage 1.2 V max.
(at 0.5 A between each output
terminal and G)
1.2 V max.
(at 0.5 A between each output
terminal and V)
Leakage current 0.1 mA max. 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 16 points with one common
XWT-OD16
REMOTE TERMINAL
OUT
0141513121110987654321
Operation indicators
Indicate the output status of each contact.
Detachable terminal block
