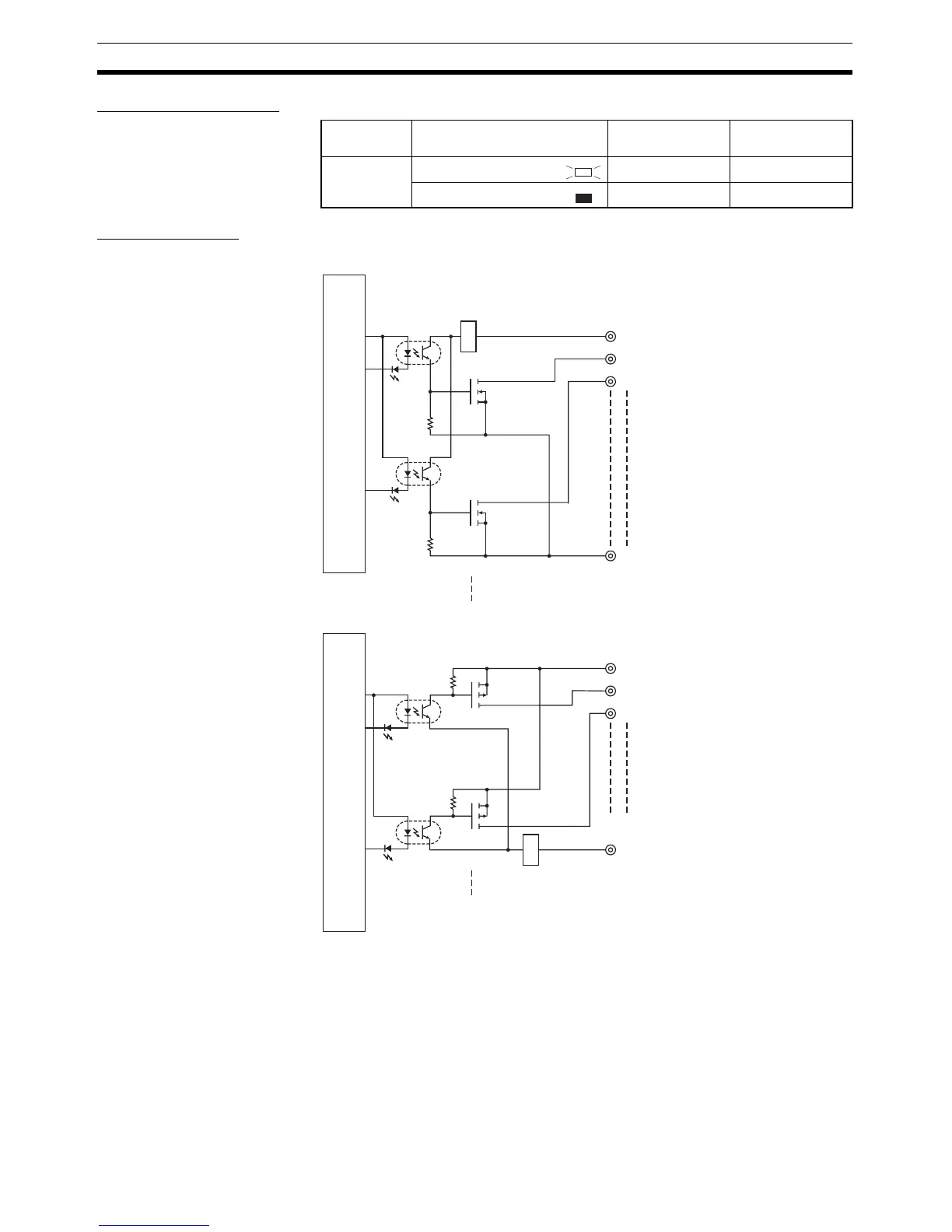

Remote I/O Terminals with Transistors Section 5-5
Operation Indicators The operation indicators show the status of the outputs.
Internal Circuits
XWT-OD16 (NPN)
XWT-OD16-1 (PNP)
Indicator
name
Indicator status Definition Meaning
0 to 15
Lit yellow.
Contacts ON Contacts are ON
OFF
Contacts OFF Contacts are OFF
0
1
G
V 24 V DC
Internal circuits
Photo-
coupler
Photo-
coupler
Voltage step-down
0
1
G
V 24 V DC
Internal circuits
Photo-
coupler
Photo-
coupler
Voltage step-down
