113
Remote I/O Terminals with Transistors Section 5-5
5-5-7 Remote I/O Terminals with 8 Transistor Inputs and 8 Transistor
Outputs: DRT2-MD16 (NPN) and DRT2-MD16-1 (PNP)
Input Specifications
Output Specifications

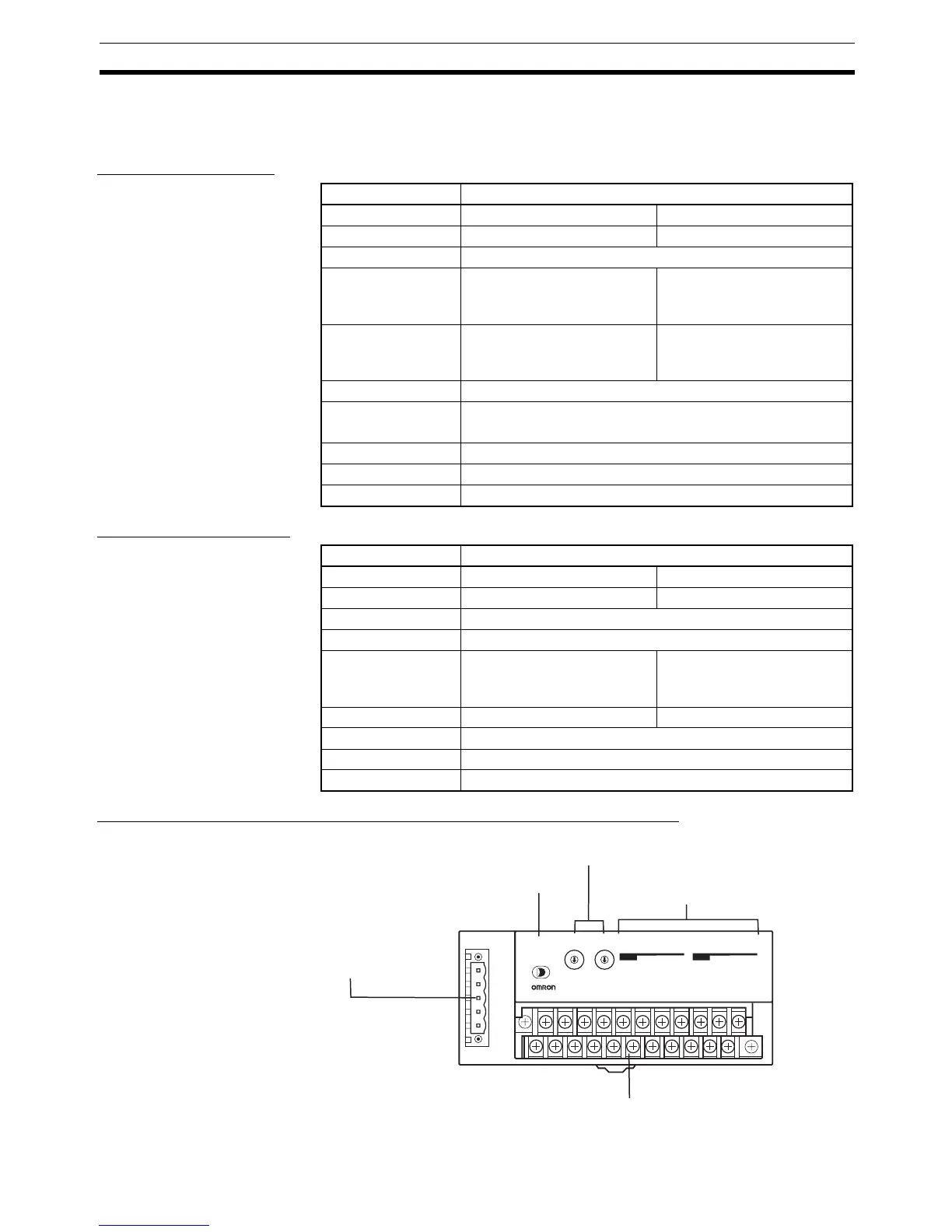

Component Names and Functions: DRT2-MD16 and DRT2-MD16-1
Item Specifications
Model DRT2-MD16 DRT2-MD16-1
Internal I/O common NPN PNP
Input points 8 points
ON voltage 15 V DC min.
(between each input terminal
and V)
15 V DC min.
(between each input terminal
and G)
OFF voltage 5 V DC max.
(between each input terminal
and V)
5 V DC max.
(between each input terminal
and G)
OFF current 1 mA max.
Input current 6.0 mA max./point (for 24 V DC)
3.0 mA min./point (for 17 V DC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
Item Specifications
Model DRT2-MD16 DRT2-MD16-1
Internal I/O common NPN PNP
Output points 8 points
Rated output current 0.5 A/point, 4.0 A/common
Residual voltage 1.2 V max.
(at 0.5 A between each output
terminal and G)
1.2 V max.
(at 0.5 A between each output
terminal and V)
Leakage current 0.1 mA max. 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 8 points with one common
Input indicators
Indicate the input status of each contact.
DRT2-MD16
REMOTE TERMINAL
5
X1
4
3
2
1
0
9
8
7
6
5
X10
4
3
2
1
0
9
8
7
6
MS NS NODE ADDRESS
07654321
IN
07654321
OUT
Communications
connector
DeviceNet
indicators
Rotary switches
Used to set node address.
Detachable
terminal block.
