Connecting Communications Cables to Environment-resistive Slaves Section 6-2
Standard Slaves
(DRT2-@D@@CL(-1)
The following table describes the meanings of the I/O indicators provided on
Standard Environment-resistive Slaves. Two I/O indicators, @-A and @-B, are
provided for each connector.
The box indicates the number of the corresponding connector.
6-2 Connecting Communications Cables to Environment-
resistive Slaves
Communications cables are connected to Environment-resistive Slaves using
round connectors.
Either Thin Cables or Thick Cables can be used as communications cables
with the round connectors. Slaves that use the standard square connectors
can also be connected to the Master Unit through a T-branch Tap.
The following wiring examples are for systems using Environment-resistive
Slaves.

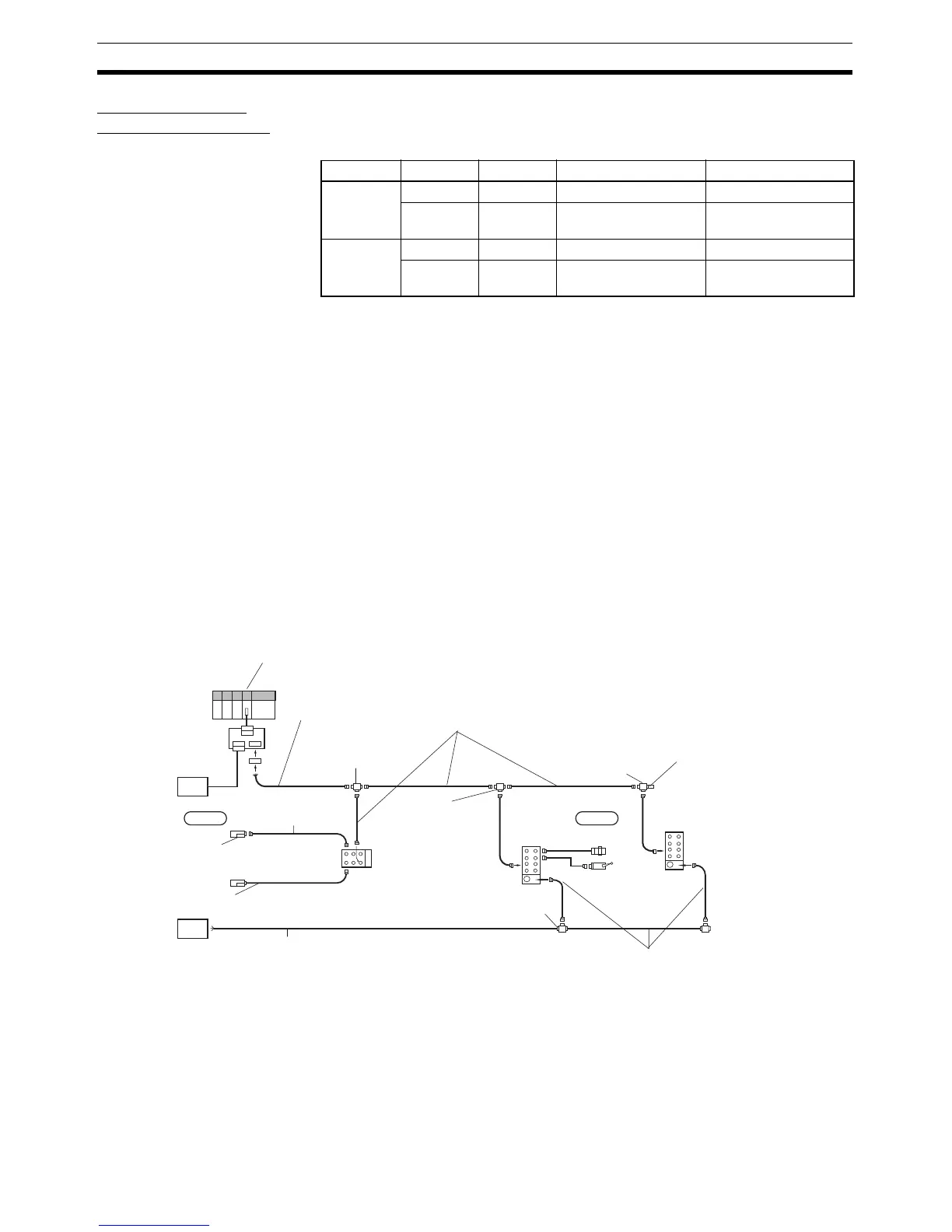

6-2-1 System with Slaves Using Round Connectors Only
Indicator Color Status Definition Meaning
@-A Yellow ON Device operational Input ON/Output ON
--- OFF Device operational Input OFF/output
OFF/input power OFF
@-B Yellow ON Device operational Input ON
--- OFF Device operational Input OFF/input power
OFF
CS/CJ-series
DeviceNet Master Unit
DCA1-5CN@@@1 Thin Cable or
DCA2-5CN@@@1 Thick Cable
with shielded connector on one
end
DCA1-5CN@@W1 Thin Cable or DCA2-5CN@@W1
Thick Cable with shielded connectors on both ends.
DCN2-1 (micro-size),
DCN3-11 or DCN3-12
(mini-size) T-branch
Connector
XS2W-D42@-@81-A Cable
with shielded socket on one
end and plug on the other
XS4F-D421-1@@-A
Cable with connector on
one end (socket/plug)
I/O power
supply cable
XS4R-D424-5
T-joint; Power
supply
XS4W-D421-1@@-A
Cable with connector
on both ends
DRS2-@ (micro-size) or
DRS3-1 (mini-size)
Connector with
terminating resistance
Environment-resistive Output
Te r m i na l
Sensor with Junction
Connector
Sensor with
Connector
I/O
Communications
power supply
T-branch Tap
Environment-
resistive Input
Terminal
DCN2-1 (micro-size),
DCN3-11 or DCN3-12
(mini-size) T-branch
Connector
DCN2-1 (micro-size),
DCN3-11 or DCN3-12
(mini-size) T-branch
Connector
I/O
Environment-
resistive Output
Terminal
Power supply
