214
Screw-less Clamp Terminals Section 5-7
Note 1. The I/O power supply’s right-side and left-side V terminals, and the right-
side and left-side G terminals, are not connected internally. Supply power
separately between V and G on the right and left sides respectively.
2. Wire colors have been changed according to revisions in the JIS standards
for photoelectric and proximity sensors. The colors in parentheses are the
wire colors prior to the revisions.

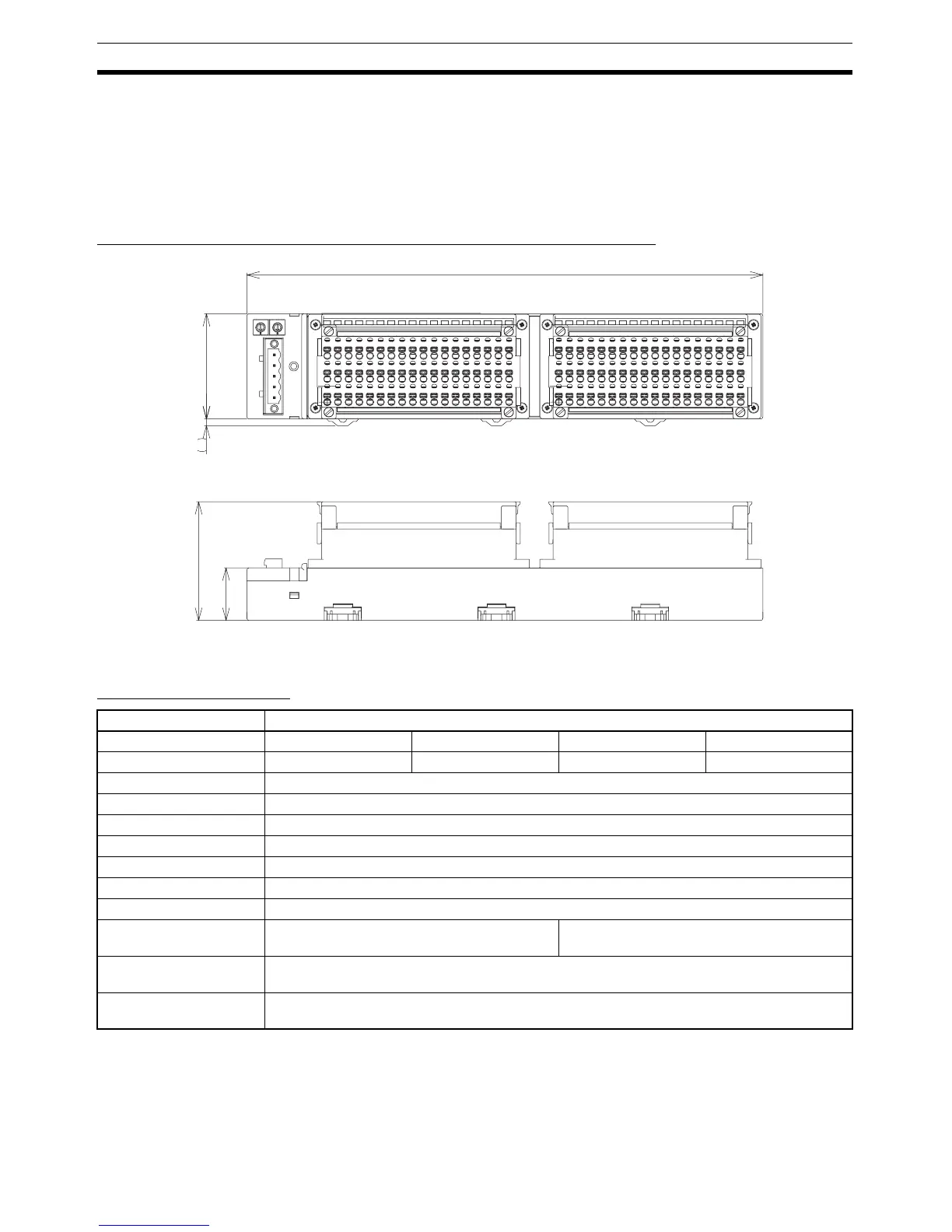

Dimensions (Same for DRT2-ID32SL(-1) and DRT2-ID32SLH(-1))
5-7-6 Screw-less Clamp Terminals with and 16 Transistor Outputs
Output Specifications
50
245
56.4
25
3
Item Specification
Model DRT2-OD16SL DRT2-OD16SL-1 DRT2-OD16SLH DRT2-OD16SLH-1
Internal I/O common NPN PNP NPN PNP
Output points 16 points
I/O power supply voltage 20.4 to 26.4 V DC (24 V DC, −15% to 10%)
Output current 0.5 A/point, 4.0 A/common
Residual voltage 1.2 V max.
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Disconnection detection --- Operates at current consumption of 3 mA/
point max. (Not detected at 3 mA or less.)
Current supplied to
output devices
100 mA/output
Output when error
detected
According to hold/clear setting when error is detected. (The factory setting is for clear.)
To Next Page
