166
Connector Terminals with Transistors Section 5-6
5-6-8 Transistor Remote Output Terminals with 32 Points and
Connectors: DRT2-OD32ML (NPN) and DRT2-OD32ML-1 (PNP)
Output Specifications
Note Do not allow the total load current to exceed 4 A and do not allow the load cur-
rent on either the V or G terminal to exceed 1 A.

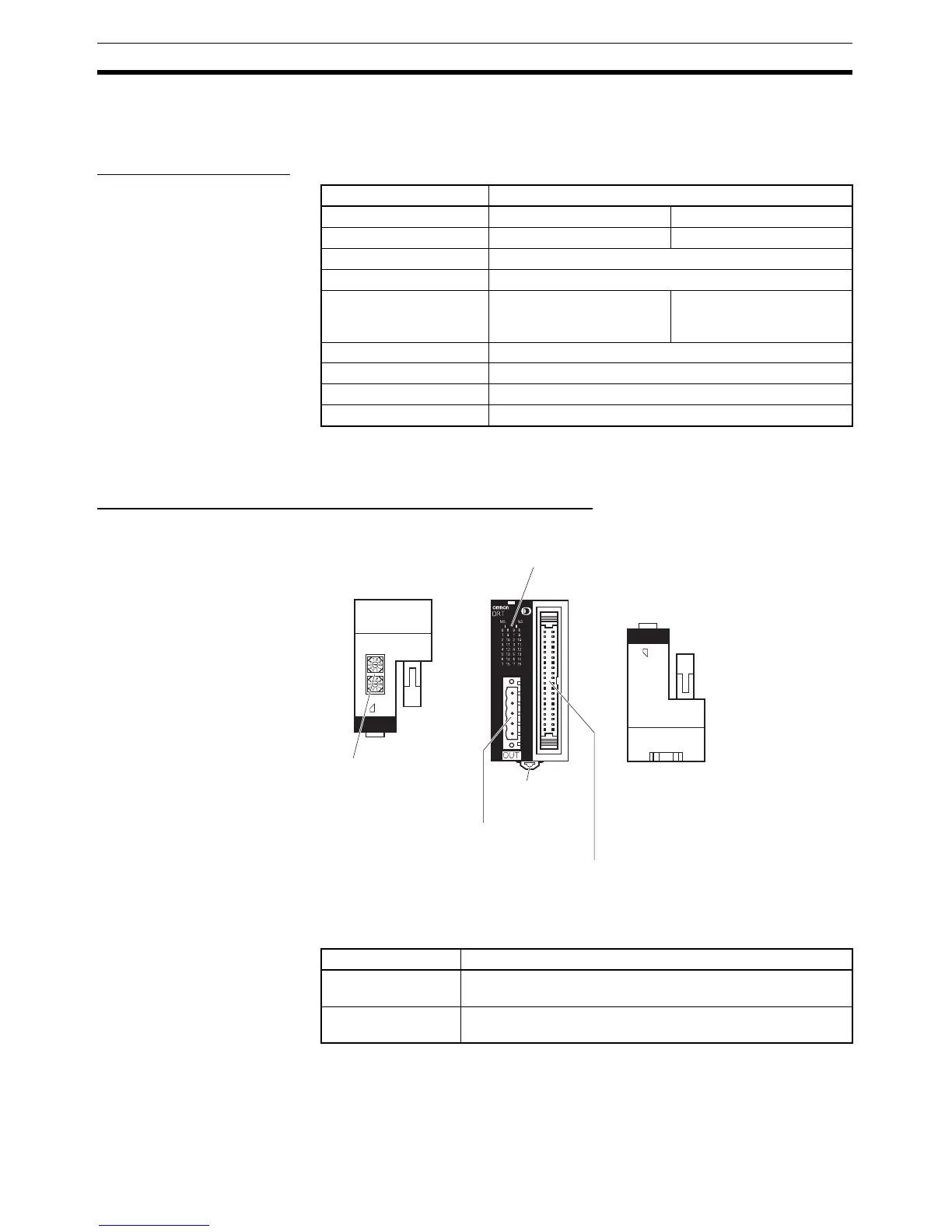

Components of the DRT2-OD32ML and DRT2-OD32ML-1
Output Indicators
Note “m” is the first word allocated to the Remote Output Terminal.
Item Specification
Model DRT2-OD32ML DRT2-OD32ML-1
Internal I/O common NPN PNP
Output points 32 points
Rated output current 0.3 A/point, 4 A/common (see note)
Residual voltage 1.2 V max. (at 0.3 A,
between each output termi-
nal and G)
1.2 V max. (at 0.3 A,
between each output termi-
nal and V)
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits 32 points with one common
(×10)
(×1)
2
DeviceNet indicators
Indicate the status of the Slave, communications,
and outputs (lit when output is ON).
Top panel Front panel Bottom panel
Rotary switches
Set the node address.
DIN track
mounting hooks
Communications
connector
Output connector (MIL)
Connects the 32 outputs via a MIL connector.
The MIL cable is sold separately.
Name Meaning
I0 to I15 Indicate the status of bits (contacts) 0 to 15 in word m. Lit
when output is ON; not lit when output is OFF.
II0 to II15 Indicate the status of bits (contacts) 0 to 15 in word m+1. Lit
when output is ON; not lit when output is OFF.
