165
Connector Terminals with Transistors Section 5-6

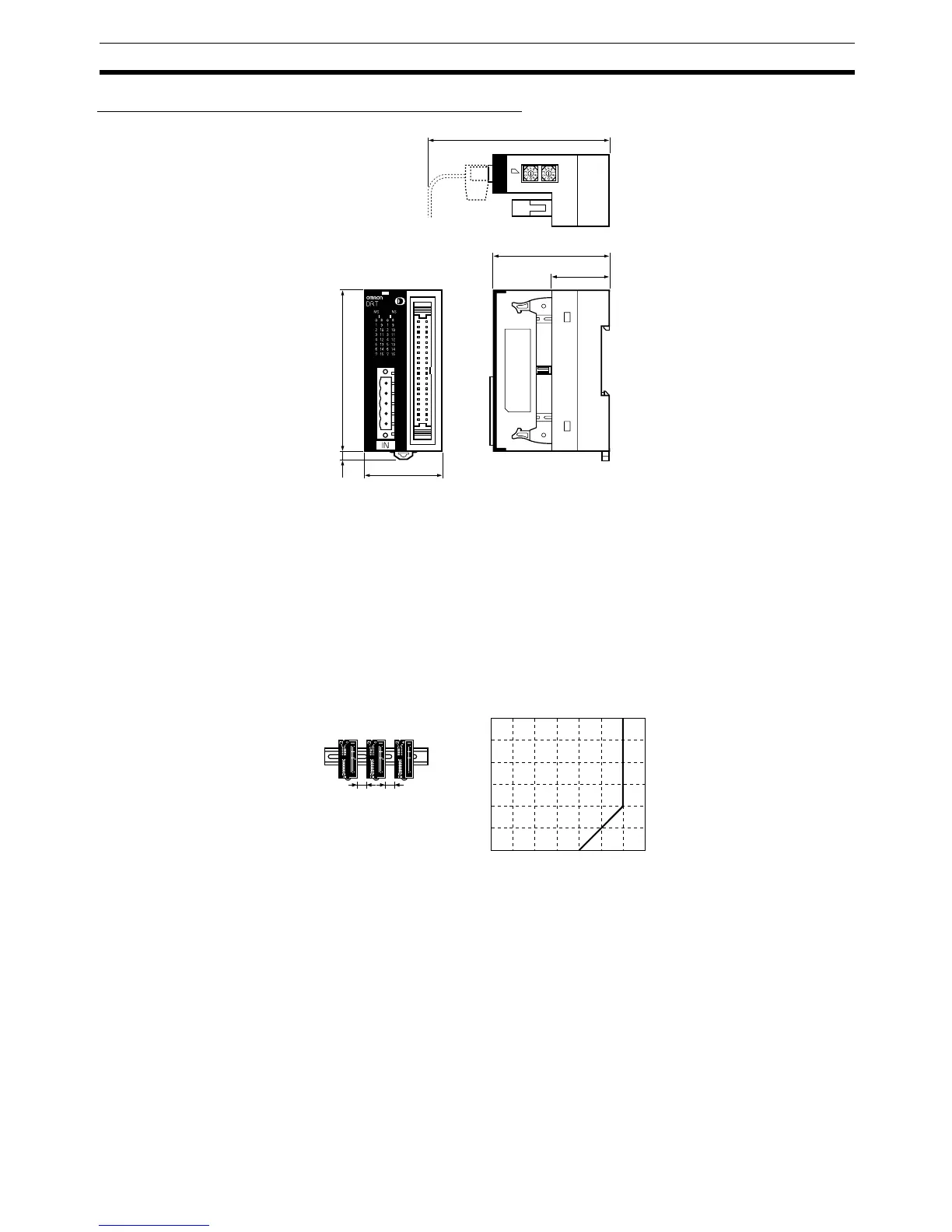

Dimensions (DRT2-ID32ML and DRT2-ID32ML-1)
Note There are restriction when using the 32-point Transistor Remote Input Termi-
nals with Connectors depending on the ambient operating temperature.
• If the Terminals are not mounted facing up, they can be mounted side-by-
side and all inputs can be turned ON simultaneously at 55
°C or less.
• If the Terminals are mounted facing up, the distances and temperatures in
the graph given below must be maintained to enable turning ON all inputs
simultaneously. For example, at an ambient temperature of 55
°C, the Ter-
minals must be separated by at least 10 mm.
27.8
60
(83)
35
80
5
2
Values in parentheses are
reference values.
30
20
10
0
40 45 50 55
L L
Distance between
Units L (mm)
Ambient operating temp. (°C)
