Remote I/O Terminals with Transistors Section 5-5

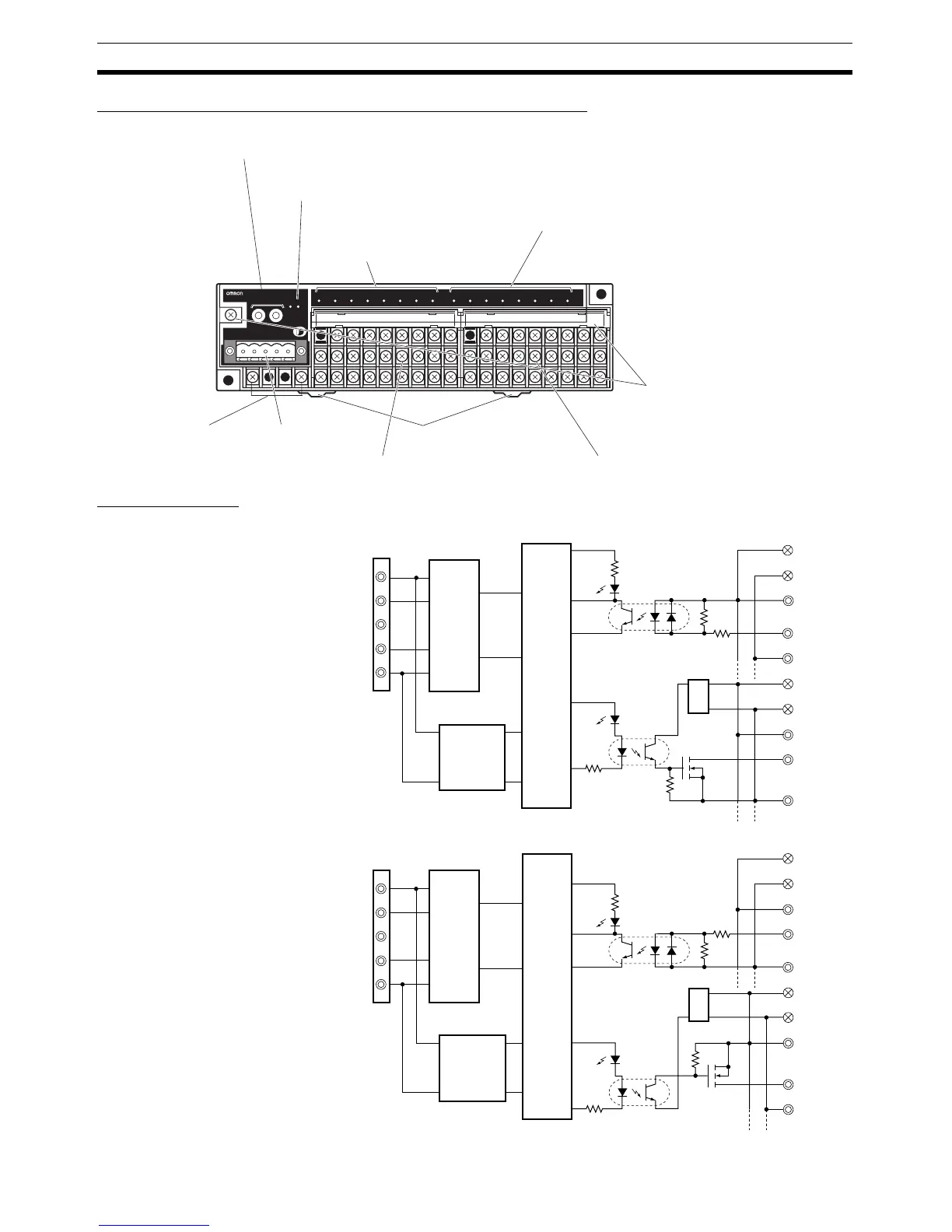

Components of the DRT2-MD16TA and DRT2-MD16TA-1
Internal Circuits
DRT2-MD16TA (NPN)
DRT2-MD16TA-1 (PNP)
Rotary switches (×10, ×1)
Set the node address.
DeviceNet Indicators
Output indicators
Indicate the output status of each contact.
(Lit when the output is ON.)
Input indicators
Indicate the output status of each
contact. (Lit when the input is ON.)
DIN track mounting hooks
Communications
connector
Input terminal block Output terminal block
Circuit removal screws.
DRT2-MD16TA
REMOTE TERMINAL DC24V
NS
MS
Spare
terminals
V1 24 V D
C
G1
V1
0 to 7
G1
Photocoupler
V2 24 V D
C
G2
V2
0 to 7
G2
Physical
layer
DC-DC
converter
(non-
isolated)
Internal
circuitry
Photo-
coupler
Voltage
step-down
V+
CAN_H
DRAIN
CAN_L
V−
V+
CAN_H
DRAIN
CAN_L
V−
V1 24 V D
C
G1
V1
0 to 7
G1
V2 24 V D
C
G2
V2
0 to 7
G2
Photocoupler
Physical
layer
DC-DC
converter
(non-
isolated)
Internal
circuitry
Voltage
step-down
Photo-
coupler
