Remote I/O Terminals with Transistors Section 5-5
Components of the DRT2-OD16TA and DRT2-OD16TA-1

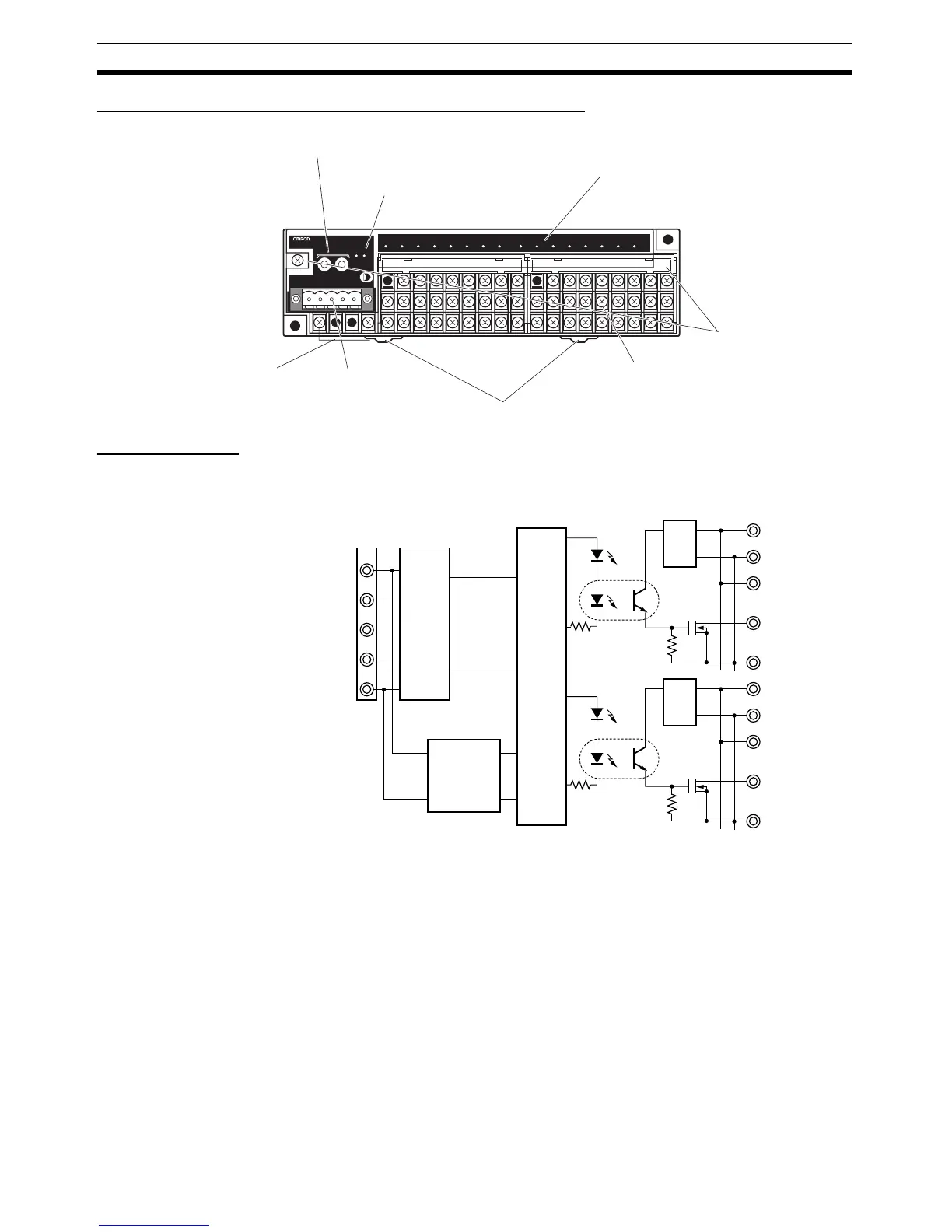

Internal Circuits
DRT2-OD16TA (NPN)
Rotary switches (×10, ×1)
Set the node address.
DeviceNet Indicators
Output indicators
Indicate the output status of each contact.
(Lit when the output is ON.)
Communications
connector
DIN track mountin
g
hooks
Terminal block
Circuit removal screws.
DRT2-OD16TA
REMOTE TERMINAL DC24V
NS
MS
Spare
terminals
V
−
CANL
Photocoupler
DRAIN
CANH
V+
V2 24 VDC
G2
V2
G2
Photocoupler
V1 24 VDC
G1
V1
G1
Physical
layer
Internal
circuirty
DC-DC
converter
(non-
isolated)
Voltage
step-down
Voltage
step-down
Output (8 to 15)
Output (0 to 7)
