204
Screw-less Clamp Terminals Section 5-7

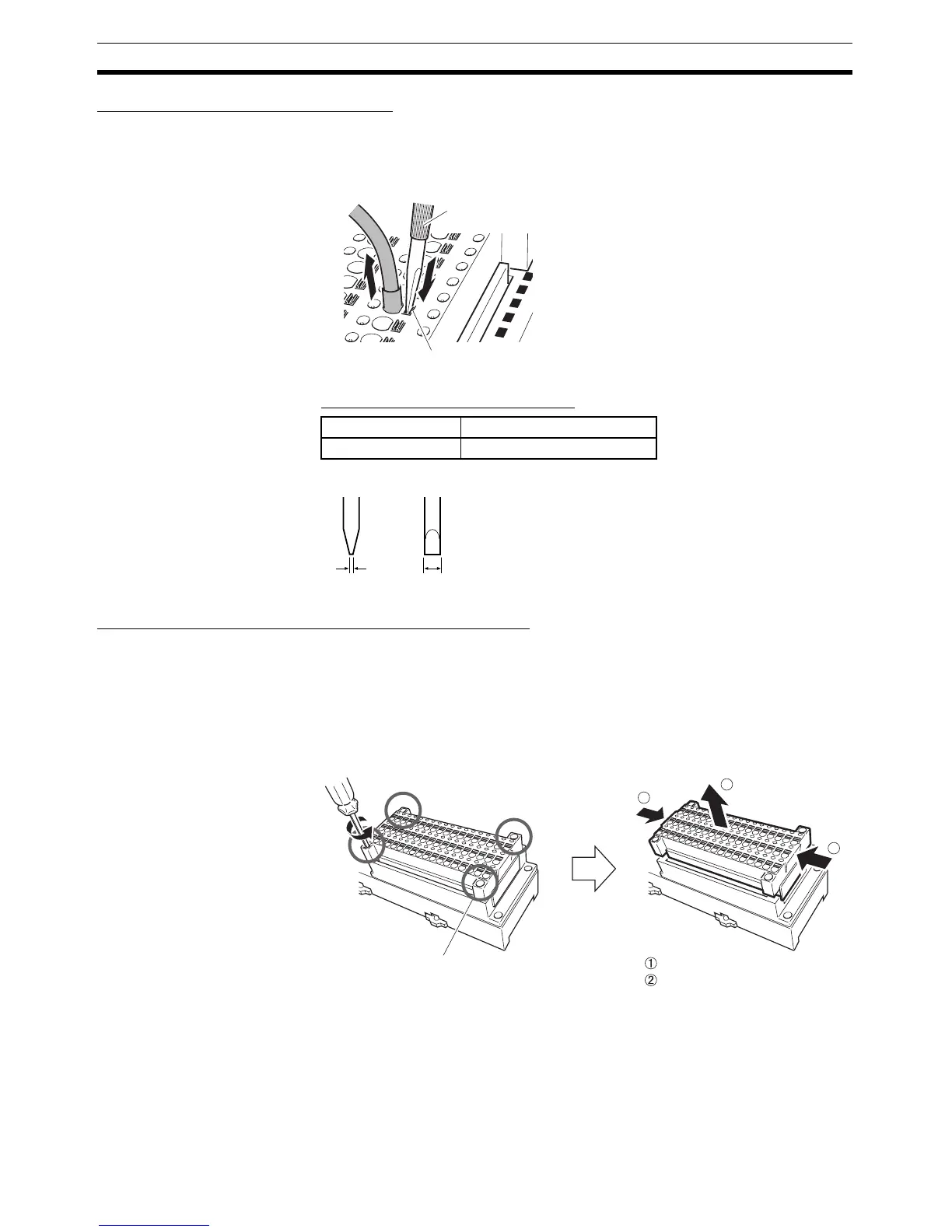

Wiring to a Clamp Terminal Block
Insertion Insert the post terminal all the way to the end in any terminal hole.
Removal Pull out the power line while pressing down with a small flat-blade screwdriver
on the release button above the terminal hole.
The following screwdriver is recommended for use when removing cables.
Recommended Screwdriver Model
Removing and Mounting a Clamp Terminal Block
Removal Use a flat-blade screwdriver to loosen the four screws on the top of the termi-
nal block, and then grasp the handles on both sides and remove the terminal
block.
Mounting Grasp the handles on both sides of the terminal block, and insert the terminal
block firmly in place. Then use a flat-blade screwdriver to tighten the four
screws on the top of the terminal block.
Note Tighten the screws to a torque of 0.2 to 0.25 N·m.
Model Manufacturer
SZF1 PHOENIX CONTACT
0
8
0
7
0
6
0
5
0
4
0
3
0
2
+
V
+
V
+
V
+
V
+
V
+
V
+
V
NC
4
3
2
1
3.5 mm0.6 mm
Side View Front View
1
2
1
Four 2.6x6 standard screws
Grasp handles on both sides.
Pull out the terminal block.
