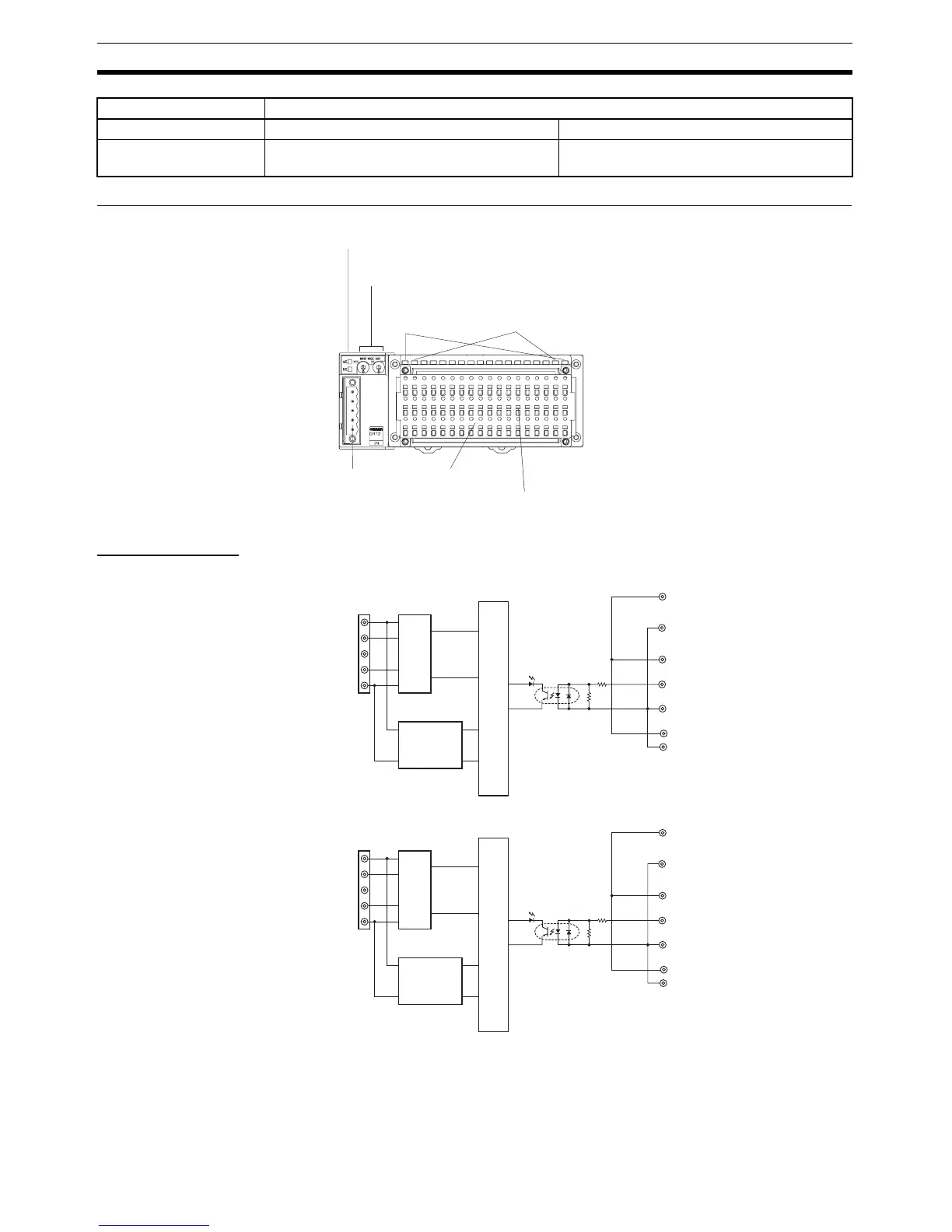

Screw-less Clamp Terminals Section 5-7
Component Names and Functions (Same for DRT2-ID16SL(-1) and DRT2-ID16SLH(-1))
Internal Circuits
DRT2-ID16SL (NPN)
DRT2-ID16SL-1 (PNP)
Disconnection detection --- Operates at 0.3 mA/pt. max.
Current supplied to input
devices
100 mA/input 50 mA/input
Item Specification
Rotary Switches
Used to set the node address.
DeviceNet Indicators
I/O Power Indicators
Used to check I/O
power supply status.
Input Indicators
Used to check detection results and
input status for each contact.
Communications
Connector
Input Terminal
Block
Releases terminal when pressed down.
Release Button
Internal circuits
Physi-
cal
layer
DC-DC
converter
V
0 to 1
5
G
Photo-
coupler
G
V
V
G
V+
CAN H
DRAIN
CAN L
V−
Internal circuits
Physi-
cal
layer
DC-DC
converter
G
0 to 1
5
V
Photo-
coupler
V
G
G
V
V+
CAN H
DRAIN
CAN L
V−
