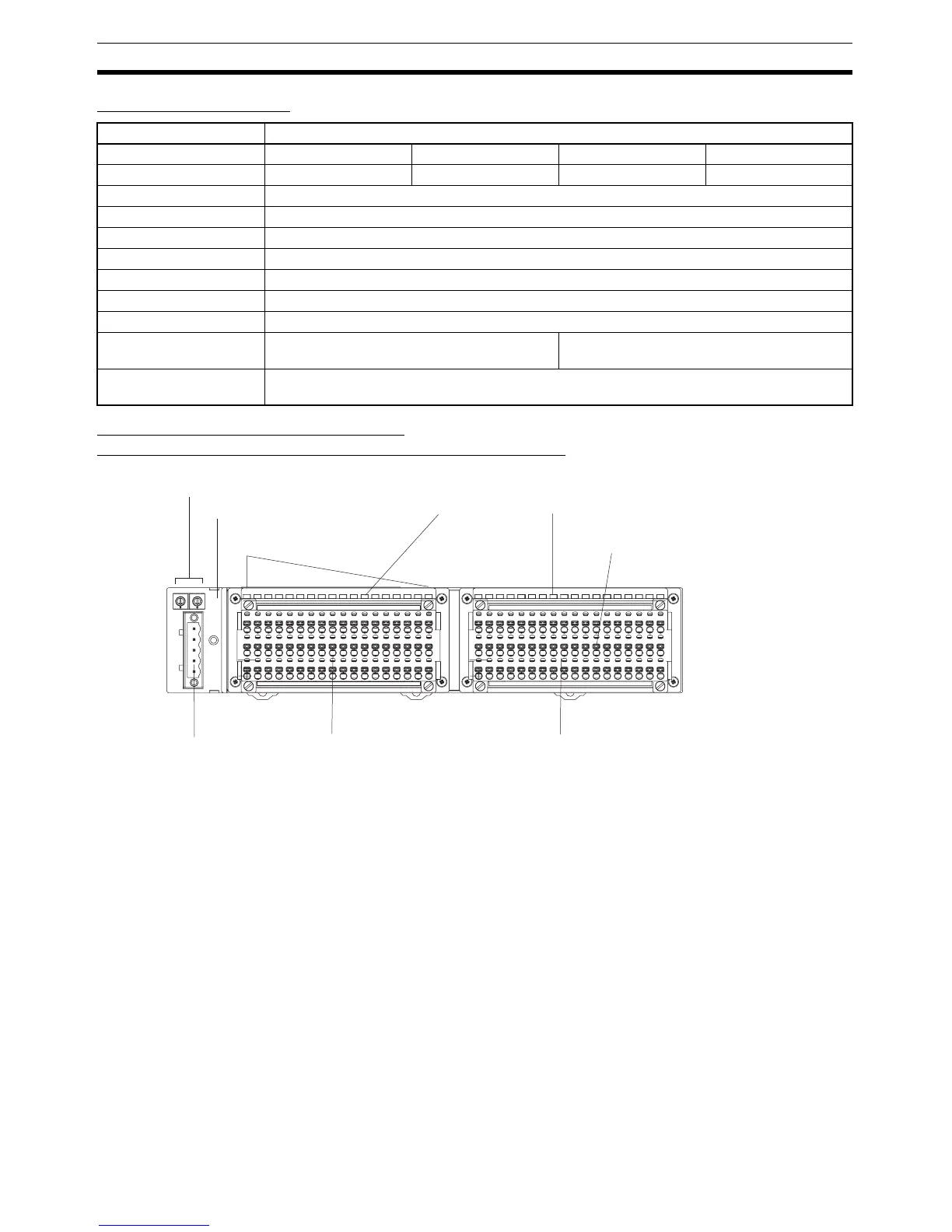

Screw-less Clamp Terminals Section 5-7
Output Specifications
Component Names and Functions
(Same for DRT2-MD32SL(-1) and DRT2-MD32SLH(-1))
Item Specification
Model DRT2-MD32SL DRT2-MD32SL-1 DRT2-MD32SLH DRT2-MD32SLH-1
Internal I/O common NPN PNP NPN PNP
Output points 16 points
I/O power supply voltage 20.4 to 26.4 V DC (24 V DC, −15% to 10%)
Output current 0.5 A/point, 4.0 A/common
Residual voltage 1.2 V max.
Leakage current 0.1 mA max.
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Disconnection detection --- Operates at current consumption of 3 mA/
point max. (Not detected at 3 mA or less.)
Output when error
detected
According to hold/clear setting when error is detected. (The factory setting is for clear.)
MS
NS
I/O
I/O
I/O
I/O
DeviceNet indicators
Release Button
Releases terminal when pressed down.
Communications
Connector
Input Terminal Block Output Terminal Block
I/O Power Indicators
Used to check I/O power supply
status.
Input Indicators
Used to check detection results
and input status for each contact.
Output Indicators
Used to check detection results
and output status for each contact.
Rotary Switches (×10, ×1)
Used to set the node address.
