287
Mounting and Wiring Environment-resistive Slaves Section 6-6
DRT2-ID04CL(-1),
DRT2-OD04CL(-1),
DRT2-OD08C(-1),
DRT2-ID08CL(-1),
DRT2-OD08CL(-1),
DRT2-HD16CL(-1),
DRT2-WD16CL(-1)
and DRT2-MD16CL(-1)
The internal power supply shares the communications power supply, but the
I/O power supply must be supplied from external power supply connectors.
The DRT1-series Environment-resistive Terminals used I/O power supply
cables with connectors (XS2W-D42@-@8@-@) that are different to the con-
nectors used with the DRT2-series Terminals. Always use the compatible
power supply connectors listed in the following table.

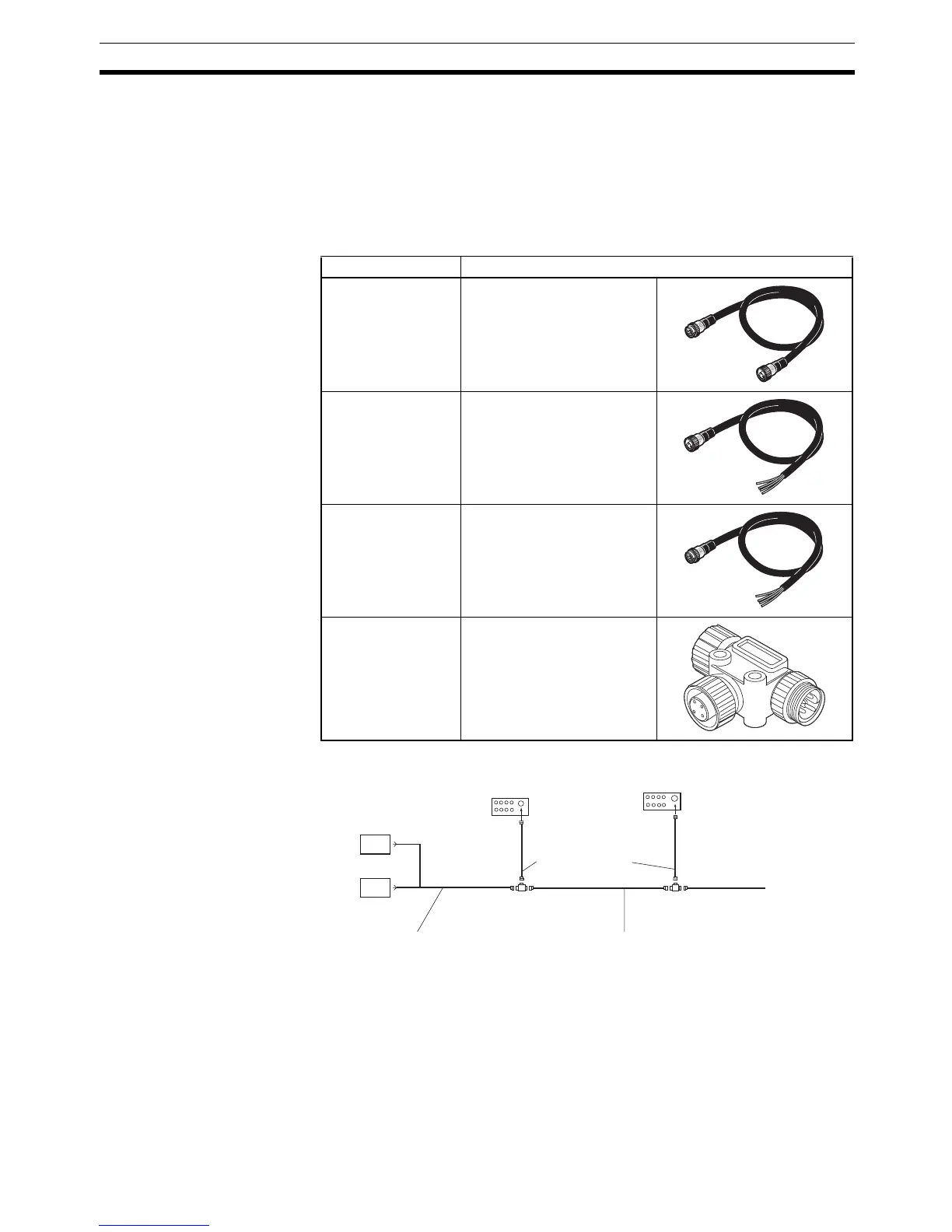

Compatible Connectors
Example System Assembly
Note 1. Tighten the connector by hand to a torque of 0.39 to 0.49 N·m. If the con-
nector is not tightened sufficiently, it will not provide the expected degree
of protection and may become loose due to vibration. Do not use pliers or
other tools to tighten the connectors, because these tools may damage the
connectors.
2. The OMRON S8@@ Power Supply Unit is recommended for the I/O power
supply. The load short-circuit detection function uses the transistor's ther-
Connector Mode
Cable with connec-
tors on both ends
(socket and plug)
XS4W-D421-1@@-A
Cable with connector
on one end (female
socket)
XS4F-D421-1@@-A
Cable with connector
on one end (male
plug)
XS4H-D421-1@@-A
T-joint XS4R-D424-5
DRT2-ID08CL
DRT2-OD08CL
I/O power supply
XS4R-D424-5
T-joint
XS4R-D424-5
T-joint
Input power supply
Output power supply
XS4F-D421-1@@-A
Cable with round
waterproof connector
on one end (socket)
XS4W-D421-1@@-A
Cable with round
waterproof connectors
on both ends
(socket/plug)
XS4W-D421-1@@-A
Cable with round
waterproof connector on
both ends (socket/plug)
To Next Page
