322
Analog Input Terminals Section 7-4
DRT2-AD04H Input
Ranges

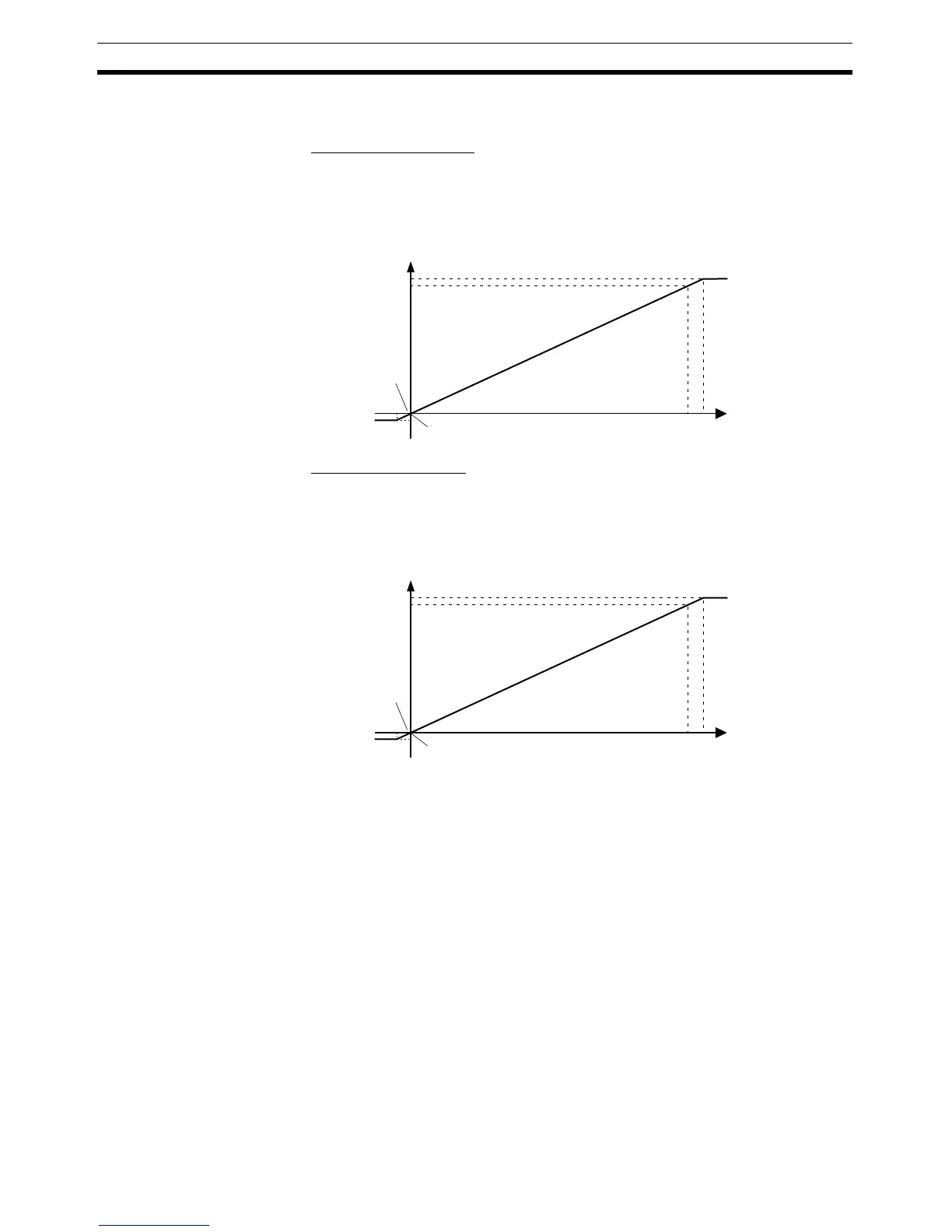

â– Input Range: 0 to 10 V
The voltage range 0 to 10 V corresponds to 0000 to 7530 hex (0 to 30,000).
The convertible data range is FA24 to 7B0C hex (
–1,500 to 31,500). Negative
voltages are expressed as two’s complements.
â– Input Range: 0 to 5 V
The voltage range 0 to 5V corresponds to 0000 to 7530 hex (0 to 30,000). The
convertible data range is FA24 to 7B0C hex (
–1,500 to 31,500). Negative volt-
ages are expressed as two’s complements.
Conversion data
Hexadecimal (decimal)
7B0C (31500)
7530 (30000)
0000 (0)
0 V
FA24 (−1500)
−0.5 V
10 V 10.5 V
Voltage
Conversion data
Hexadecimal (decimal)
7B0C (31500)
7530 (30000)
0000 (0)
0 V
FA24 (−1500)
−0.25 V
5 V 5.25 V
Voltage
