Analog Input Terminals Section 7-4

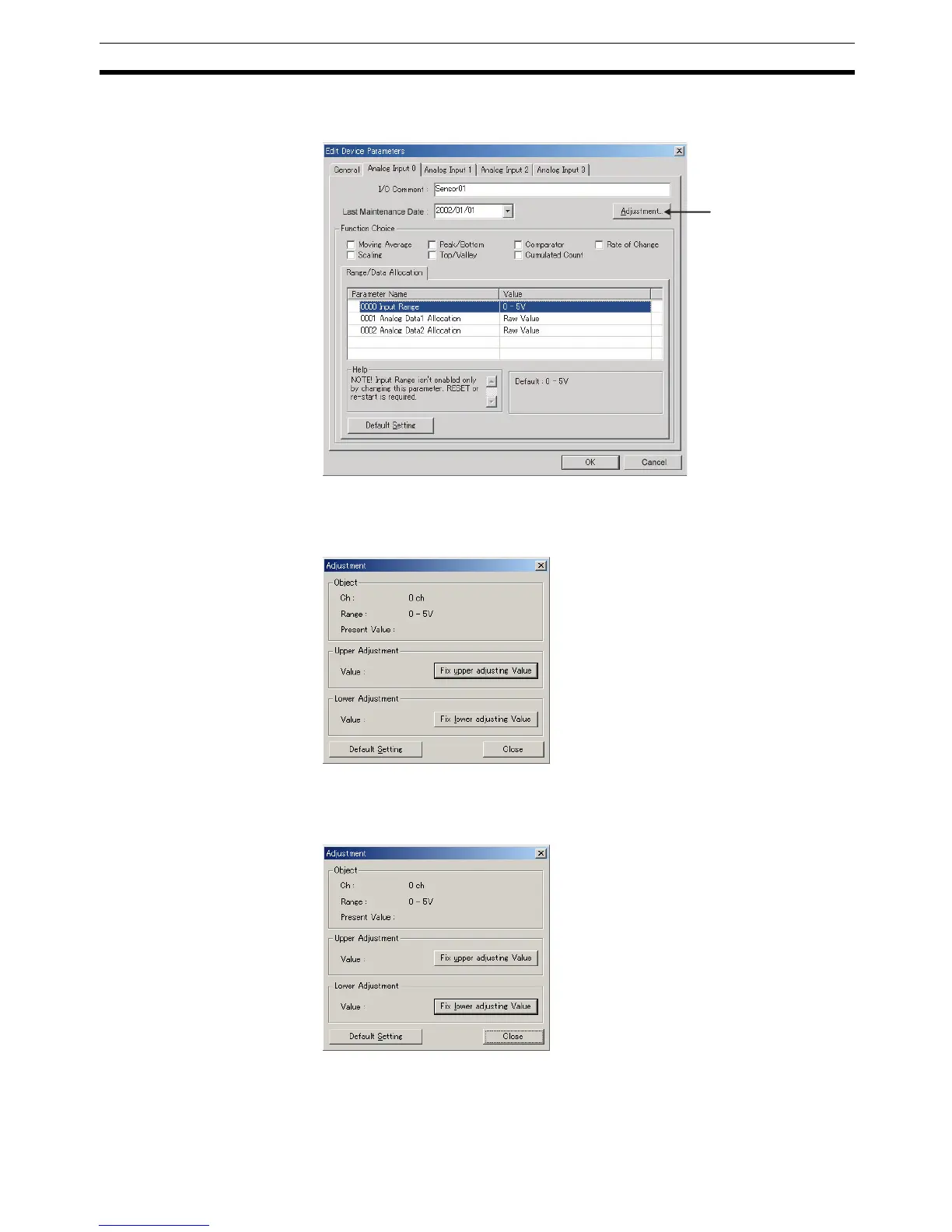

2. Select the Tab Page for the input to be adjusted, and click the Adjustment
Button. (At the same time set the input range again.)
3. Input the voltage (or current) transmitted from the connected device to the
Unit’s input terminal that is equivalent to the 100% value.
4. Click the Fix upper adjusting value Button, and input the adjusted value.
5. Input the voltage (or current) transmitted from the connected device to the
Unit’s input terminal that is equivalent to the 0% value.
6. Click the Fix lower adjusting value Button, and input the adjusted value.
7. To return an adjusted value to the default setting, click the Default Setting
Button.
8. Close the Adjustment Window, return to the General Ta b, c li ck th e Down-
load Button, and then click the Reset Button to reset the Unit.
