366
Analog Output Terminals Section 7-5
Note The settings in the Master are given priority, so the default connection path
settings in the Slaves are not required.
Setting Using the DeviceNet Configurator

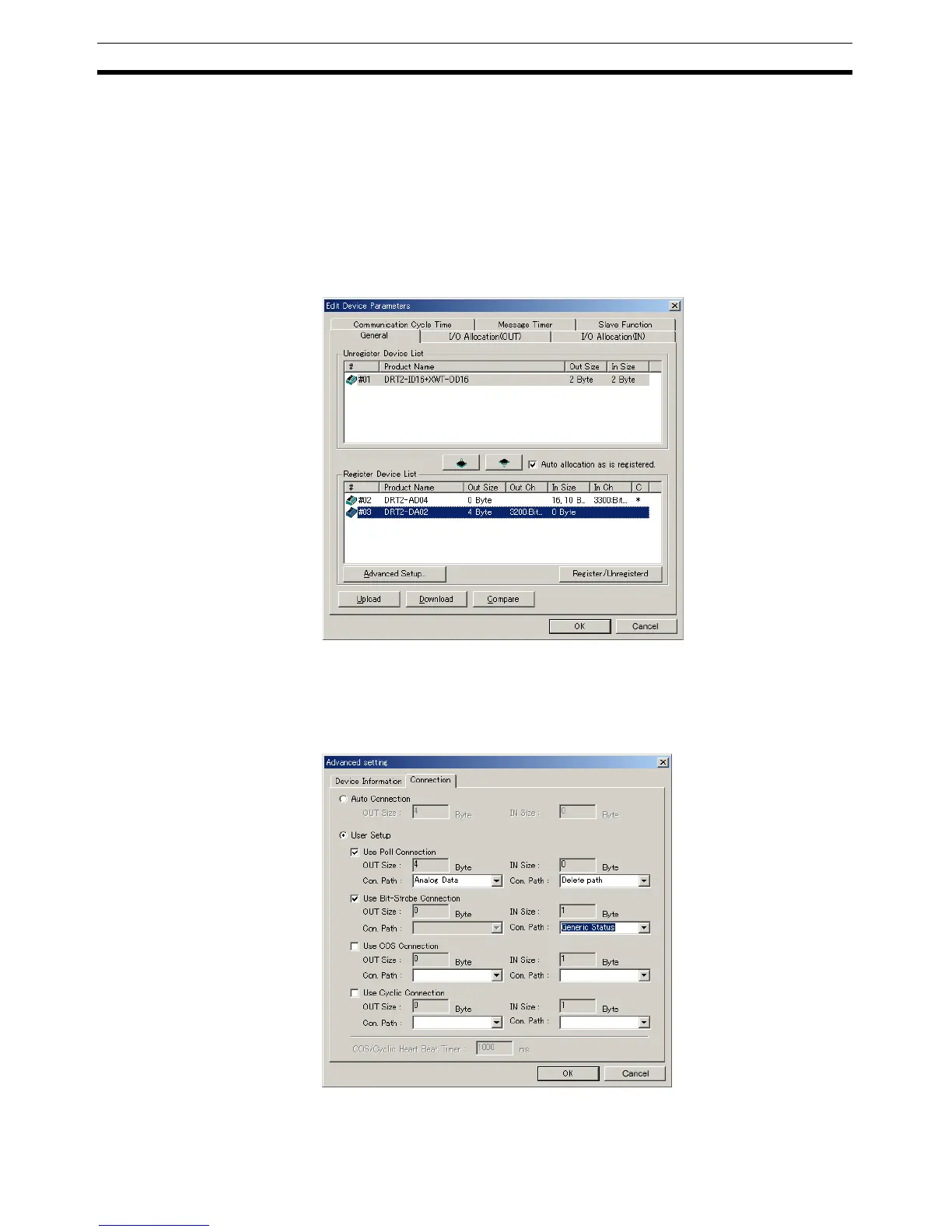

1,2,3... 1. Double-click the icon of the Slave to be set in the Main Window and open
the Edit Device Parameters Window. (From the Maintenance Mode Win-
dow, click the right mouse button over the Slave icon and select Parame-
ters and Edit.)
2. Click the General Tab, select the Analog Slave to be set from the device
list, and click the Advanced Setup Button.
3. Click the Connection Tab, and select User Setup. Select Use Poll Con-
nection and then select Analog Data from the pull-down menu in the Con.
(Connection) Path field for output. At the same time, select Use Bit-Strobe
Connection, and then select Generic Status from the pull-down menu in
the Con. Path field for input.
4. Click the OK Button.
