Restrictions on Reading Total ON Time/Contact Operation Counter for All Slaves at Once
Appendix C

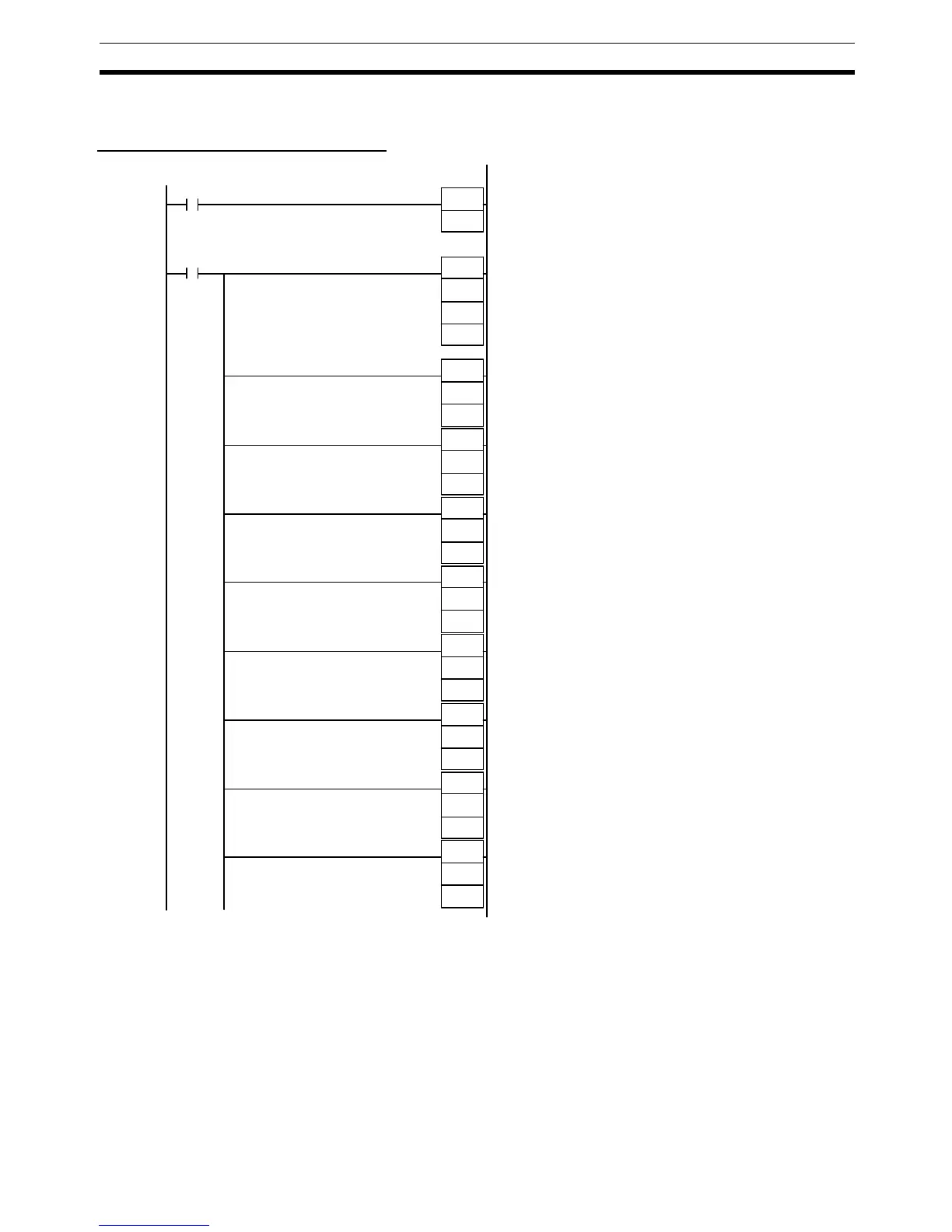

Ladder Programming Sample
Processing to Set the Initial Data
000000
(000000)
0.00
Command Start Bit
DIFU
(013)
0.01
Initial Data Setting Bit
(sets initial data) a002
000001
(000002)
0.01
Initial Data
Setting Bit
...(sets initial
data) a001
BSET
(071)
#0
D0
Number of send data bytes
D999
MOV
(021)
#9
D0
Number of send data bytes
MOV
(021)
#A
D1
Number of receive data bytes
MOV
(021)
#0
D2
Destination network address
MOV
(021)
#1EFE
D3
Destination node address, unit address
MOV
(021)
#3
D4
Communications port setting
MOV
(021)
#64
D5
Response monitoring time
MOV
(021)
#200
D6
Pointer indicating storage area of response for data read from individual Input Unit
MOV
(021)
#600
D7
Pointer indicating storage area of response for data read from individual Output Unit
