Appendix C
Restrictions on Reading Total ON Time/Contact Operation Counter for All Slaves at Once

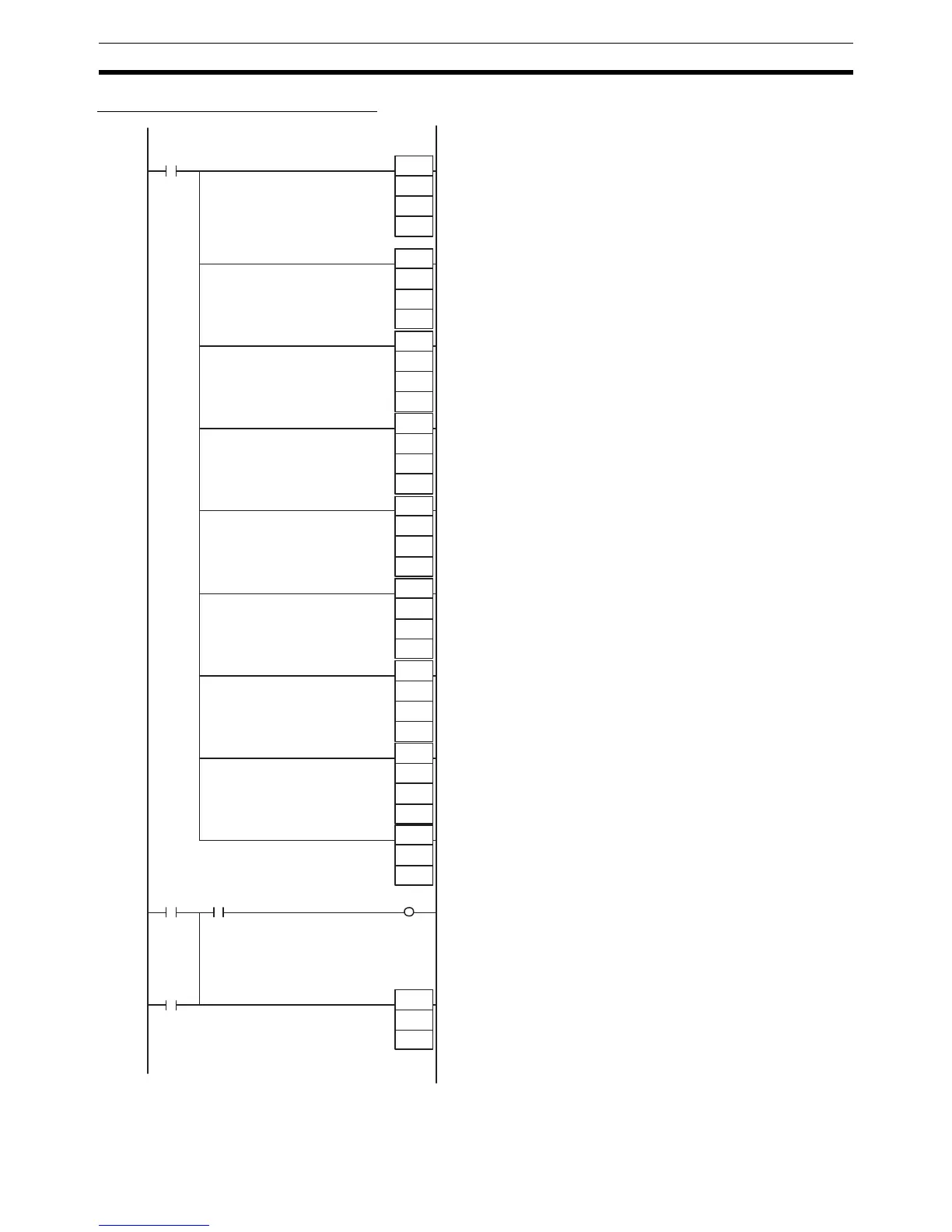

Processing to Create Final Data
000000
(000137)
T0001
MOVD
(083)
D101
Combined data input bits 00 to 15
#012
D52
Final data input bits 16 to 31
MOVD
(083)
D101
Combined data input bits 00 to 15
#210
D52
Final data input bits 16 to 31
MOVD
(083)
D102
Combined data input bits 16 to 31
#012
D53
Final data output bits 00 to 15
MOVD
(083)
D102
Combined data input bits 16 to 31
#210
D53
Final data output bits 00 to 15
MOVD
(083)
D103
Combined data output bits 00 to 15
#012
D54
Final data output bits 16 to 31
MOVD
(083)
D103
Combined data output bits 00 to 15
#210
D54
Final data output bits 16 to 31
MOVD
(083)
D104
Combined data output bits 16 to 31
#012
D55
Error response code when error occurs
MOVD
(083)
D104
Combined data output bits 16 to 31
#210
D55
Error response code when error occurs
TIM
0002
#10
000001
(000147)
T0002 0.00
Command Start Bit
0.02
Processing
Completed
Flag
Processing Completed Flag
0.02
Processing Completed Flag
MOV
(021)
#0
1
Processing control words
