56
Common Slave Functions Section 4-2

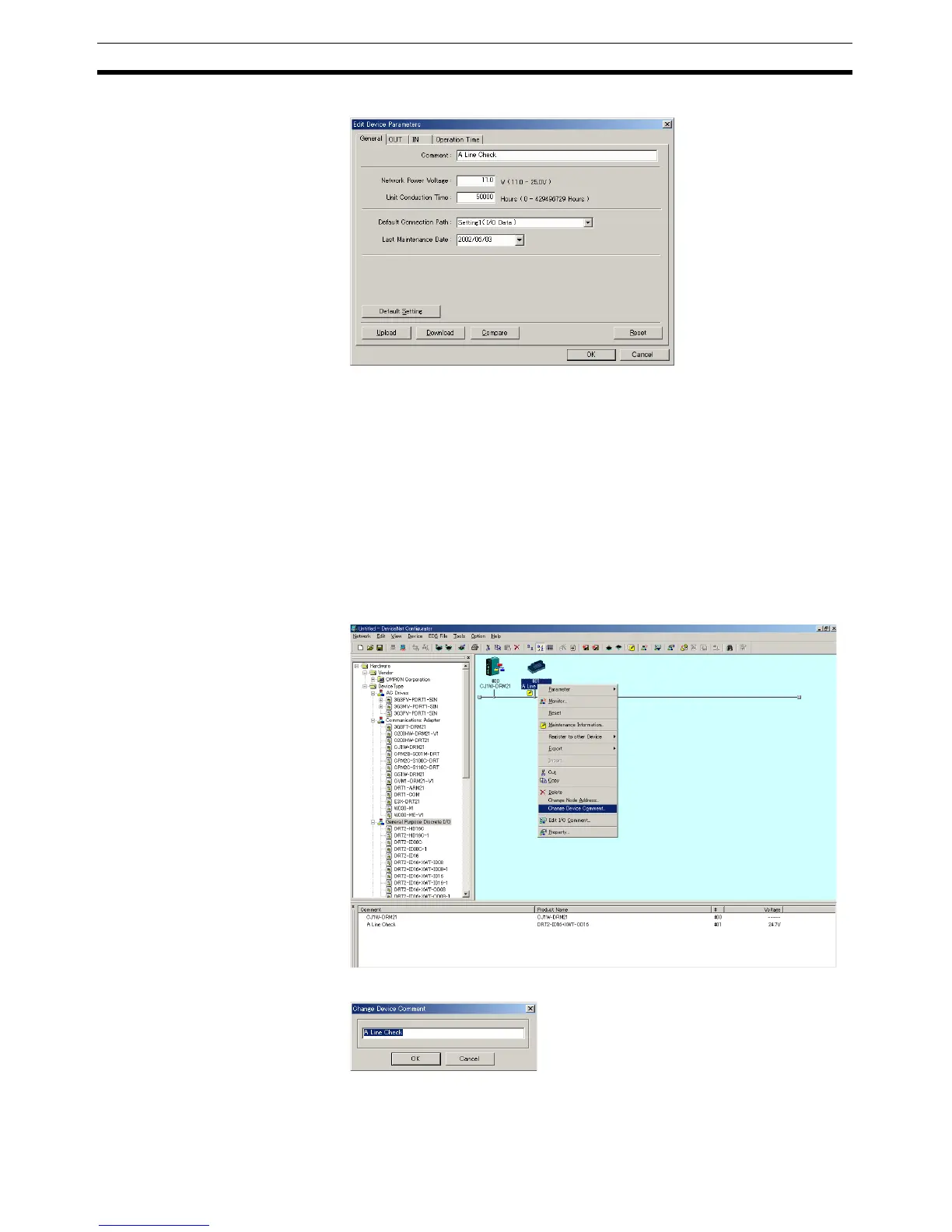

3. Select the General Tab.
4. Enter the desired name in the Comment field.
5. Click the Download Button, and then click the Reset Button to reset the
Unit.
6. Click the OK Button.
Setting Method 2 The procedure for this setting method is the same from both the Main Window
and the Maintenance Mode Window.
1,2,3... 1. Turn ON the power to the DRT2-series Smart Slave.
2. Click the right mouse button over the icon of the DRT2-series Smart Slave
to be set in the Network Configuration Window, and select Change Device
Comment.
3. The following window will be displayed. Enter the desired name.
4. Click the OK Button.
5. Click the right mouse button over the icon of the DRT2-series Smart Slave
to be set, and select Parameter and Download.
To Next Page
