65
Functions of General-purpose Slaves and Environment-resistive Slaves Section 4-3
• Counting unit: One operation
Note 1. The Contact Operation Counter and Total ON Time Monitor cannot be
used at the same time for a single contact. Select the function to be used
under the Detection Mode heading.
2. The Contact Operation Counter will operate when the I/O power is ON
only.
Setting Using the
DeviceNet
Configurator
The method used to set values from the DeviceNet Configurator (Ver. 2.20 or
later) is described here.
1,2,3... 1. Turn ON the power to the DRT2-series Smart Slave.
2. From the Main Window, open the Network Configuration Window and dou-
ble-click or click the right mouse button over the icon of the DRT2-series
Smart Slave to be set. Select Parameter and Edit to display the Edit De-
vice Parameters Window.
From the Maintenance Mode Window, click the right mouse button over the
icon of the DRT2-series Smart Slave to be set. Select Parameter and Edit
to display the Edit Device Parameters Window.
3. Select the IN Tab.

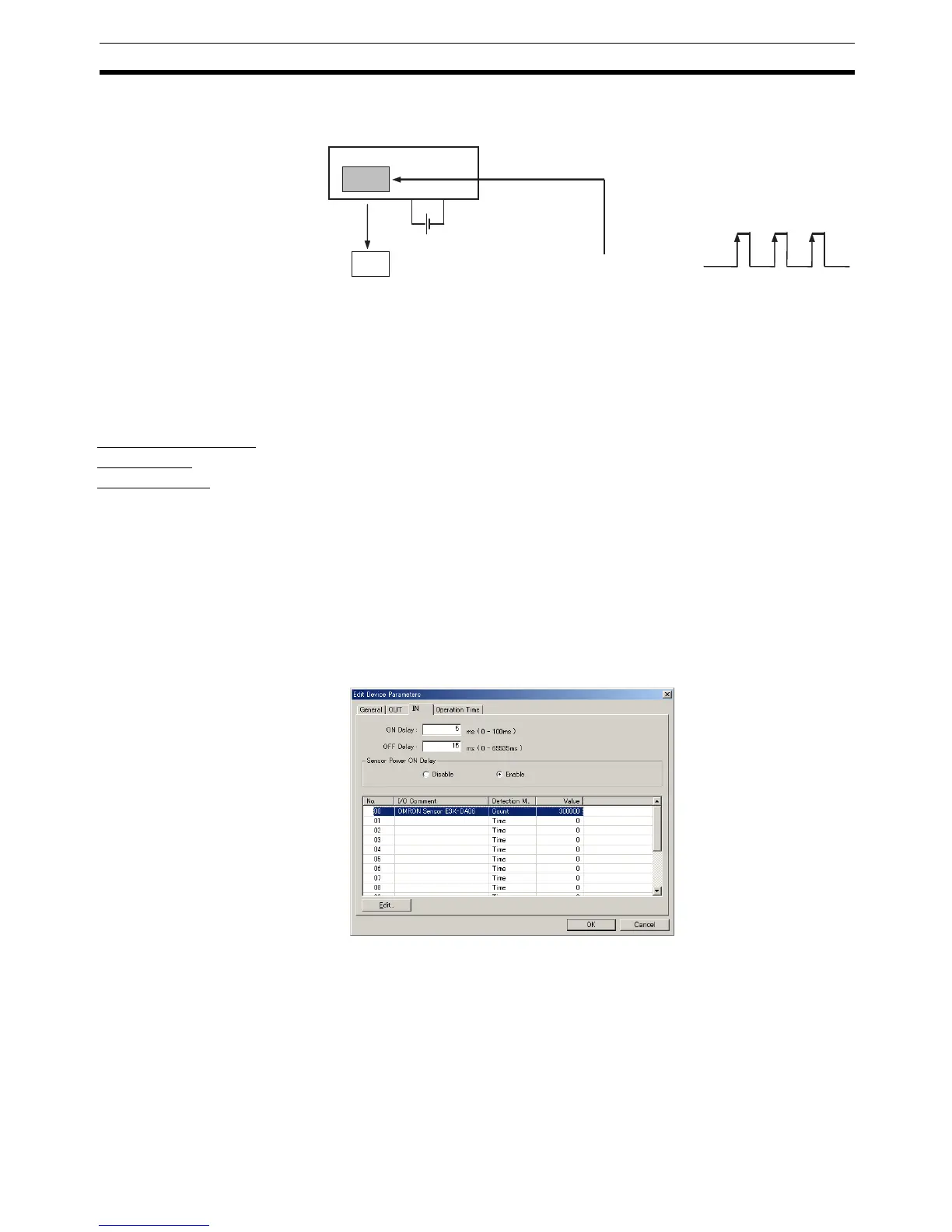

4. Double-click the I/O Comment field of the applicable contact to display the
following window. Select Count under Detection Mode, enter a value in the
123
OFF→ON
Slave
Number of
operations
Output device
(relay, etc.)
I/O power
Recorded in the Slave
Number of times output
contact changes to ON.
To Next Page
