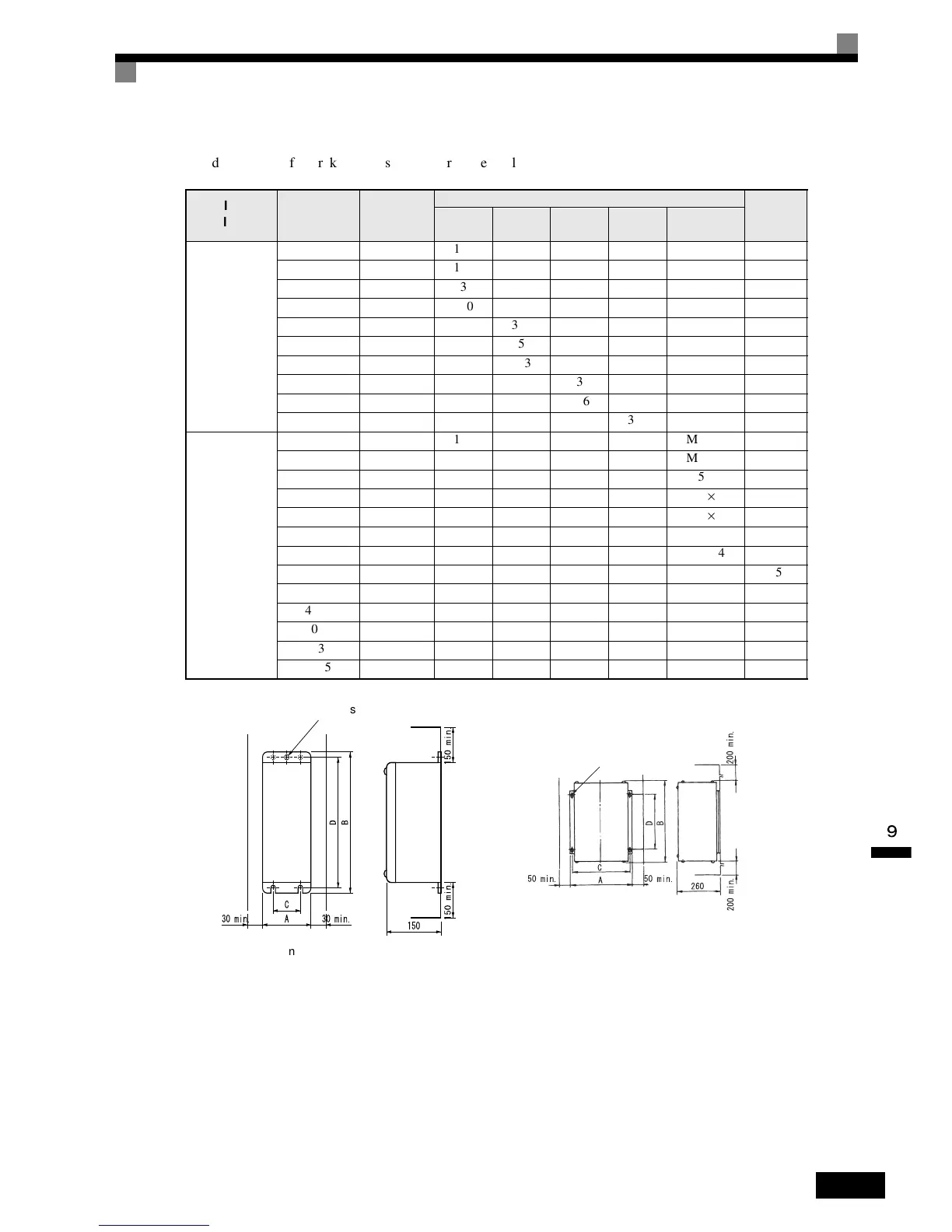

The dimensions of a Braking Resistor Unit are given below.
Voltage
Class
Model No.
3G3IV-
PLKEB
o
oo
o
Dimensions
Diagram
Dimensions (mm)
Weight
(kg)
A B C D
Mounting
Screws
200-V Class
20P7 1 105 275 50 260 M5 × 33.0
21P5 1 130 350 75 335 M5 × 44.5
22P2 1 130 350 75 335 M5 × 44.5
23P7 1 130 350 75 335 M5 × 45.0
25P5 1 250 350 200 335 M6 × 47.5
27P5 1 250 350 200 335 M6 × 48.5
2011 2 266 543 246 340 M8 × 410
2015 2 356 543 336 340 M8 × 415
2018 2 446 543 426 340 M8 × 419
2022 2 446 543 426 340 M8 × 419
400-V Class
40P7 1 105 275 50 260 M5 × 33.0
41P5 1 130 350 75 335 M5 × 44.5
42P2 1 130 350 75 335 M5 × 44.5
43P7 1 130 350 75 335 M5 × 45.0
45P5 1 250 350 200 335 M6 × 47.5
47P5 1 250 350 200 335 M6 × 48.5
4011 2 266 543 246 340 M8 × 410
4015 2 356 543 336 340 M8 × 415
4018 2 446 543 426 340 M8 × 419
4022 2 446 543 426 340 M8 × 419
4030 2 356 956 336 740 M8 × 425
4037 2 446 956 426 740 M8 × 433
4045 2 446 956 426 740 M8 × 433
Dimensions Diagram 1
Mounting screw
Dimensions Diagram 2
Mounting screw
