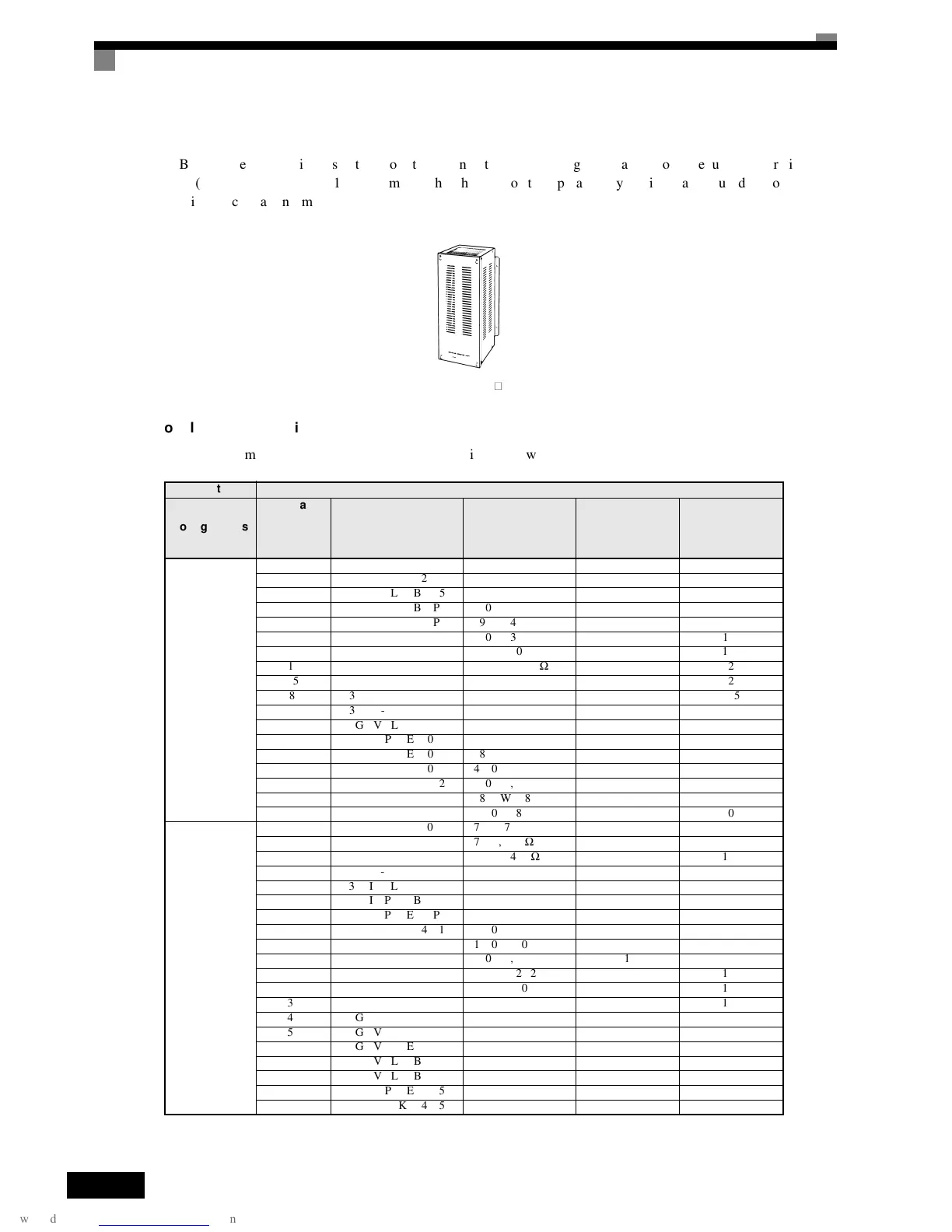

n Braking Resistor Unit
A Braking Resistor Unit is used to absorb the regenerative motor energy with a resistor to reduce deceleration
time (use rate: 10% ED). A 10% ED means that the 10% of the operating cycle time can be used to control
braking (deceleration time).
Models and Application
The standard models of Braking Resistor Units are listed below.
Inverter Braking Resistor Unit
Voltage Class
Applicable
Motor
Capacity
(kW)
Model No.
Resistor
Specifications
(per Unit)
Qty Used
Approx Braking
Torque (%)
200-V Class
0.4 3G3IV-PLKEB20P7 70 W, 200 Ω 1 220
0.75 3G3IV-PLKEB20P7 70 W, 200 Ω 1 125
1.5 3G3IV-PLKEB21P5 260 W, 100 Ω 1 125
2.2 3G3IV-PLKEB22P2 260 W, 100 Ω 1 120
3.7 3G3IV-PLKEB23P7 390 W, 40 Ω 1 125
5.5 3G3IV-PLKEB25P5 520 W, 30 Ω 1115
7.5 3G3IV-PLKEB27P5 780 W, 20 Ω 1 125
11 3G3IV-PLKEB2011 2400 W, 13.6 Ω 1 125
15 3G3IV-PLKEB2015 3000 W, 10 Ω 1 125
18.5 3G3IV-PLKEB2015 3000 W, 10 Ω 1 125
22 3G3IV-PLKEB2022 4800 W, 6.8 Ω 1 125
30 3G3IV-PLKEB2015 3000 W, 10 Ω 2 125
37 3G3IV-PLKEB2015 3000 W, 10 Ω 2 100
45 3G3IV-PLKEB2022 4800 W, 6.8 Ω 2 120
55 3G3IV-PLKEB2022 4800 W, 6.8 Ω 2 100
75 3G3IV-PLKEB2022 4800 W, 6.8 Ω 3110
90 3G3IV-PLKEB2022 4800 W, 6.8 Ω 4 120
110 3G3IV-PLKEB2018 4800 W, 8 Ω 5 100
400-V Class
0.4 3G3IV-PLKEB40P7 70 W, 750 Ω 1 230
0.75 3G3IV-PLKEB40P7 70 W, 750 Ω 1 130
1.5 3G3IV-PLKEB41P5 260 W, 400 Ω 1 125
2.2 3G3IV-PLKEB42P2 260 W, 250 Ω 1 135
3.7 3G3IV-PLKEB43P7 390 W, 150 Ω 1 135
5.5 3G3IV-PLKEB45P5 520 W, 100 Ω 1 135
7.5 3G3IV-PLKEB47P5 780 W, 75 Ω 1 130
11 3G3IV-PLKEB4011 1040 W, 50 Ω 1 135
15 3G3IV-PLKEB4015 1560 W, 40 Ω 1 125
18.5 3G3IV-PLKEB4018 4800 W, 32 Ω 1 125
22 3G3IV-PLKEB4022 4800 W, 27.2 Ω 1 125
30 3G3IV-PLKEB4030 6000 W, 20 Ω 1 125
37 3G3IV-PLKEB4037 9600 W, 16 Ω 1 125
45 3G3IV-PLKEB4045 9600 W, 13.6 Ω 1 125
55 3G3IV-PLKEB4030 6000 W, 20 Ω 2 135
75 3G3IV-PLKEB4045 9600 W, 13.6 Ω 2 145
90 3G3IV-PLKEB4045 9600 W, 13.6 Ω 2 100
110 3G3IV-PLKEB4030 6000 W, 20 Ω 3 100
132 3G3IV-PLKEB4045 9600 W, 13.6 Ω 4 140
160 3G3IV-PLKEB4045 9600 W, 13.6 Ω 4 140
3G3IV-PLKEB@
