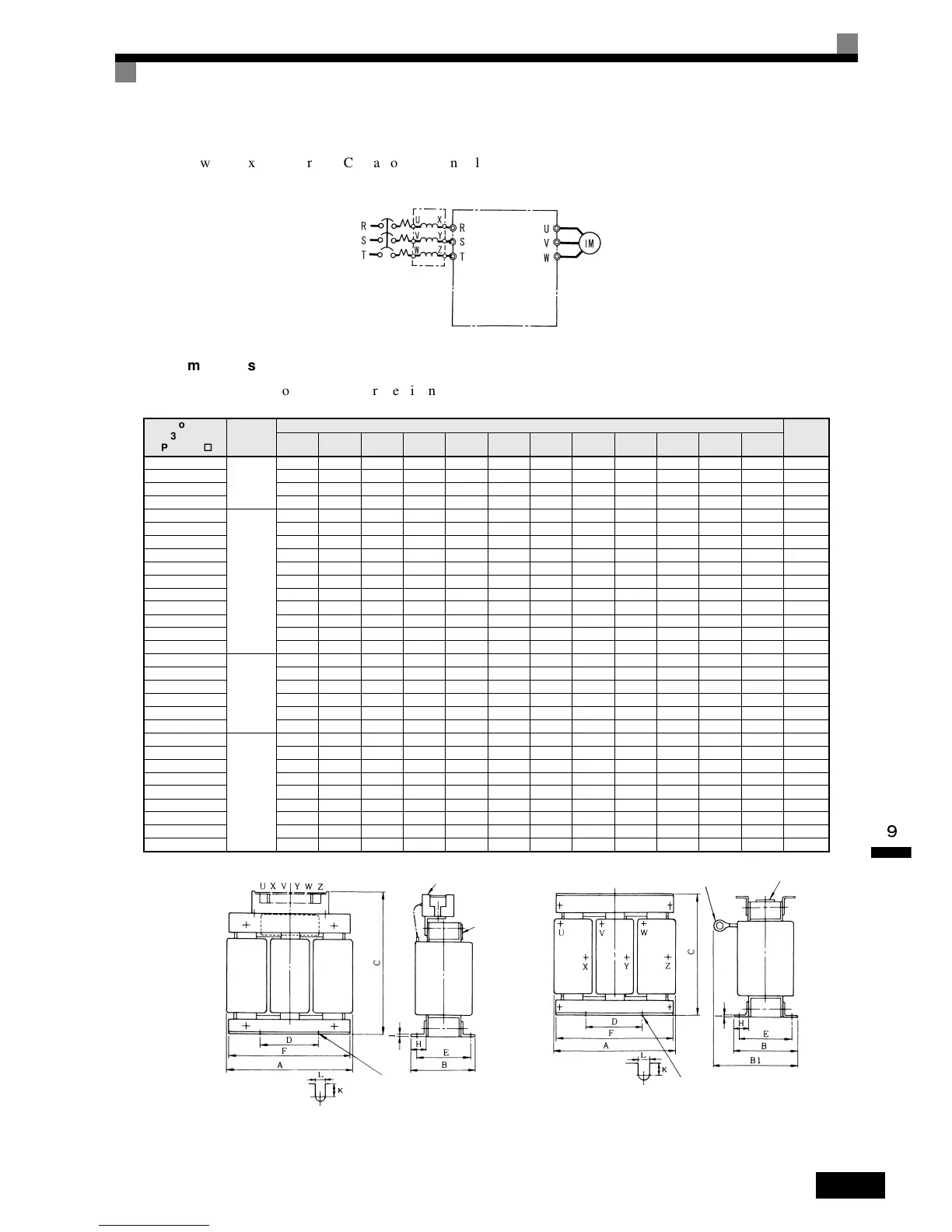

Wiring Example
A
wiring
example
for
an
AC
Reactor
is
shown
below.
Dimensions
The
dimensions
of
a
DC
Reactor
are
given
below.
Model
3G3IV
-PUZBABo
oo
o
Dimen-
sions
Diagram
Dimensions (mm)
Weight
(kg)
A B B1 C D E F H J K L M
2.5A4.2MH
1
12071 - 12040 5010520M610.57 M42.5
5A2.1MH 120 71 - 120 40 50 105 20 M6 10.5 7 M4 2.5
10A1.1MH 130 88 - 130 50 65 130 22 M6 11.5 7 M4 3
15A0.71MH 130 88 - 130 50 65 130 22 M6 11.5 7 M4 3
20A0.53MH
2
130 88 114 105 50 65 130 22 M6 11.5 7 M5 3
30A0.35MH 130 88 119 105 50 70 130 22 M6 9 7 M5 3
40A0.265MH 130 98 139 105 50 75 130 22 M6 11.5 7 M6 4
60A0.18MH 160 105 147.5 130 75 85 160 25 M6 10 7 M6 6
80A0.13MH 180 100 155 150 75 80 180 25 M6 10 7 M8 8
90A0.12MH 180 100 150 150 75 80 180 25 M6 10 7 M8 8
120A0.09MH 180 100 155 150 75 80 180 25 M6 10 7 M10 8
160A0.07MH 210 100 170 175 75 80 205 25 M6 10 7 M10 12
200A0.05MH 210 115 182.8 175 75 95 205 25 M6 10 7 M10 15
240A0.044MH 240 126 218 215±5 150 110 240 25 M6 8 7 M10 23
280A0.038MH 240 126 218 215±5 150 110 240 25 M8 8 10 M12 23
1.3A18.0MH
1
12071 - 12040 5010520M610.57 M42.5
2.5A8.4MH 120 71 - 120 40 50 105 20 M6 10.5 7 M4 2.5
5A4.2MH 130 88 - 130 50 70 130 22 M6 9 7 M4 3
7.5A3.6MH 130 88 - 130 50 70 130 22 M6 9 7 M4 3
10A2.2MH 130 88 - 130 50 65 130 22 M6 11.5 7 M4 3
15A1.42MH 130 98 - 130 50 75 130 22 M6 11.5 7 M4 4
20A1.06MH
2
160 90 115 130 75 70 160 25 M6 10 7 M5 5
30A0.7MH 160 105 132.5 130 75 85 160 25 M6 10 7 M5 6
40A0.53MH 180 100 140 150 75 80 180 25 M6 10 7 M6 8
50A0.42MH 180 100 145 150 75 80 180 25 M6 10 7 M6 8
60A0.36MH 180 100 150 150 75 75 180 25 M6 10 7 M6 8.5
80A0.26MH 210 100 150 175 75 80 205 25 M6 10 7 M8 12
90A0.24MH 210 115 177.5 175 75 95 205 25 M6 10 7 M8 15
120A0.18MH 240 126 193 205±5 150 110 240 25 M8 8 10 M10 23
150A0.15MH 240 126 193 205±5 150 110 240 25 M8 8 10 M10 23
Dimensions Diagram 1 Dimensions Diagram 2
Motor
MCCB
AC reactor
Inverter
Nameplate
M: Terminal
