9
-
20

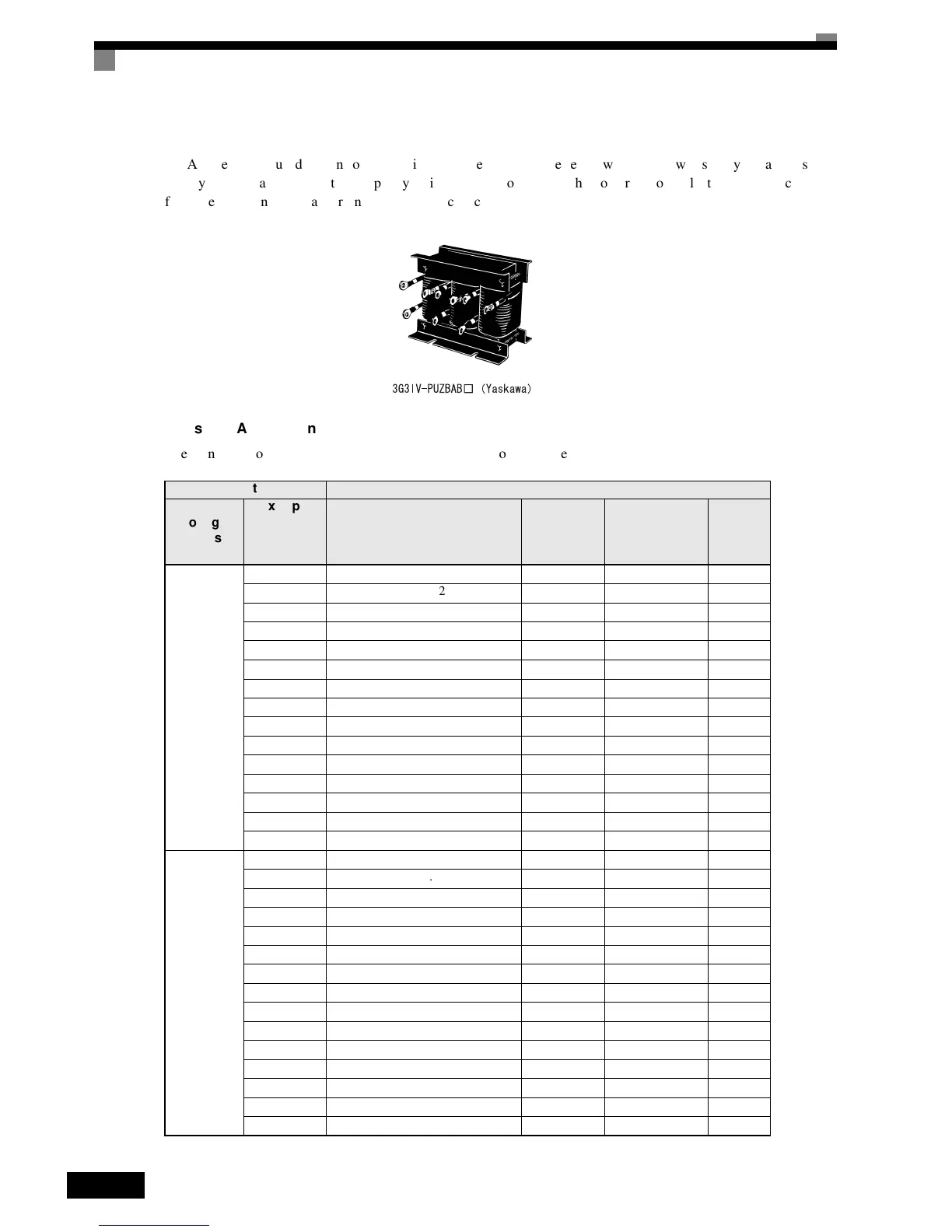

n AC Reactor
An
AC
Reactor
is
used
to
control
harmonics
generated
by
the
Inverter
or
when
the
power
supply
capacity
is
greatly
larger
than
the
Inverter’s
capacity.
It
is
also
used
to
increase
the
power
factor.
Select
the
AC
Reactor
from
the
following
table
according
to
the
motor
capacity.
Models and Application
The
standard
models
of
AC
Reactors
are
listed
in
the
following
table.
Inverter AC Reactor
Voltage
Class
Max. Appli-
cable Motor
Capacity
(kW)
Model No.
Current
(A)
Inductance
(mH)
Loss
(W)
200-V
Class
0.4 3G3IV-PUZBAB2.5A4.2MH 2.5 4.2 15
0.75 3G3IV-PUZBAB5A2.1MH 5 2.1 15
1.5 3G3IV-PUZBAB10A1.1MH 10 1.1 25
2.2 3G3IV-PUZBAB15A0.7MH 15 0.71 30
3.7 3G3IV-PUZBAB20A0.53MH 20 0.53 35
5.5 3G3IV-PUZBAB30A0.35MH 30 0.35 45
7.5 3G3IV-PUZBAB40A0.265MH 40 0.265 50
11 3G3IV-PUZBAB60A0.18MH 60 0.18 65
15 3G3IV-PUZBAB80A0.13MH 80 0.13 75
18.5 3G3IV-PUZBAB90A0.12MH 90 0.12 90
22 3G3IV-PUZBAB120A0.09MH 120 0.09 90
30 3G3IV-PUZBAB160A0.07MH 160 0.07 100
37 3G3IV-PUZBAB200A0.05MH 200 0.05 110
45 3G3IV-PUZBAB240A0.044MH 240 0.044 125
55 3G3IV-PUZBAB280A0.038MH 280 0.038 130
400-V
Class
0.4 3G3IV-PUZBAB1.3A18.0MH 1.3 18.0 15
0.75 3G3IV-PUZBAB2.5A8.4MH 2.5 8.4 15
1.5 3G3IV-PUZBAB5A4.2MH 5 4.2 25
2.2 3G3IV-PUZBAB7.5A3.6MH 7.5 3.6 35
3.7 3G3IV-PUZBAB10A2.2MH 10 2.2 43
5.5 3G3IV-PUZBAB15A1.42MH 15 1.42 50
7.5 3G3IV-PUZBAB20A1.06MH 20 1.06 50
11 3G3IV-PUZBAB30A0.7MH 30 0.7 65
15 3G3IV-PUZBAB40A0.53MH 40 0.53 90
18.5 3G3IV-PUZBAB50A0.42MH 50 0.42 90
22 3G3IV-PUZBAB60A0.36MH 60 0.36 90
30 3G3IV-PUZBAB80A0.26MH 80 0.26 95
37 3G3IV-PUZBAB90A0.24MH 90 0.24 110
45 3G3IV-PUZBAB120A0.18MH 120 0.18 130
55 3G3IV-PUZBAB150A0.15MH 150 0.15 150
