Omron SYSDRIVE 3G3RV Series User Manual

O
ptions and Peripheral Devices
9
-
2
9

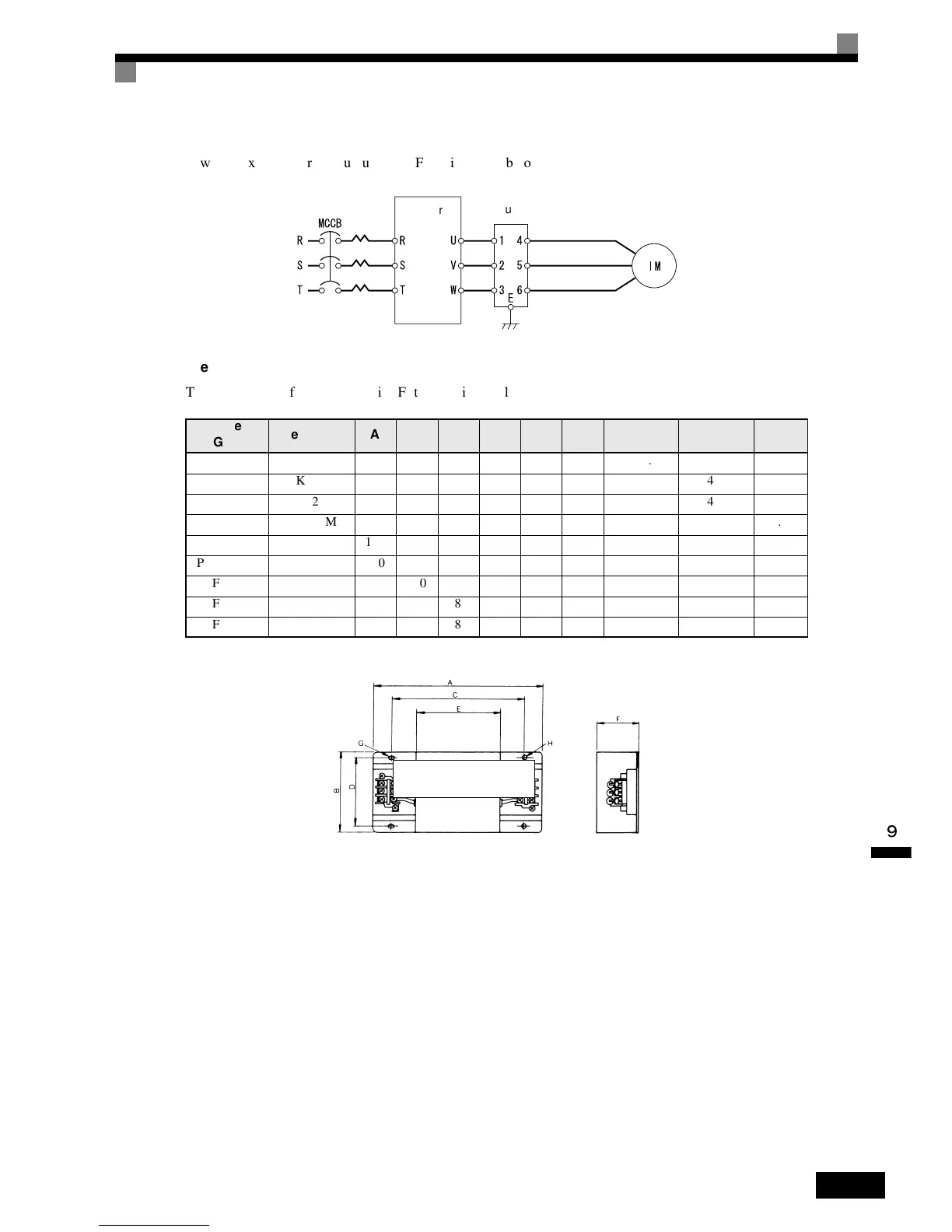

Wiring Example
A wiring example for an Output Noise Filter is shown below.
Dimensions
The dimensions of an Output Noise Filter are given below.
Model
3G3IV-
Terminal A B C D E F
G
(Diameter)
H
(Diameter)
Weight
(kg)
PLF310KA TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 4.5 0.5
PLF320KA TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 4.5 0.6
PLF350KA TE-K22 M6 260 180 180 160 120 65 7 × 4.5 4.5 2.0
PLF310KB TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 4.5 0.5
PLF320KB TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 4.5 0.6
PLF335KB TE-K5.5 M4 140 100 100 90 70 45 7 × 4.5 4.5 0.8
PLF345KB TE-K22 M6 260 180 180 160 120 65 7 × 4.5 4.5 2.0
PLF375KB TE-K22 M6 540 320 480 300 340 240 9 × 6.5 6.5 12.0
PLF3110KB TE-K60 M8 540 340 480 300 340 240 9 × 6.5 6.5 19.5
Output Noise Filter
Inverter
