5-6-3 BIT TEST: TST(350) and TSTN(351)
S: Source word CIO, G, A, DM, DR, IR
Operand Data AreasLadder Symbol
(350)
TST S N
(351)
TSTN S N
N: Bit number CIO, G, A, T, C, #, DM, DR, IR
Description TST(350) turns ON the execution condition when the specified bit in the speci-
fied word is ON and turns OFF the execution condition when the bit is OFF.
TSTN(351) turns OFF the execution condition when the specified bit in the spe-
cified word is ON and turns ON the execution condition when the bit is OFF.
The bit position is designated in N between 0000 and 0015 in BCD.
Precautions TST(350) and TSTN(351) cannot be used as right-hand instructions, i.e., anoth-
er instruction must appear between them and the right bus bar.
N must be BCD between 0000 and 0015.
Note: Refer to page 115 for general precautions on operand data areas.
Flags ER (A50003): N is not 0000 to 0015 BCD.
Content of *DM word is not BCD.

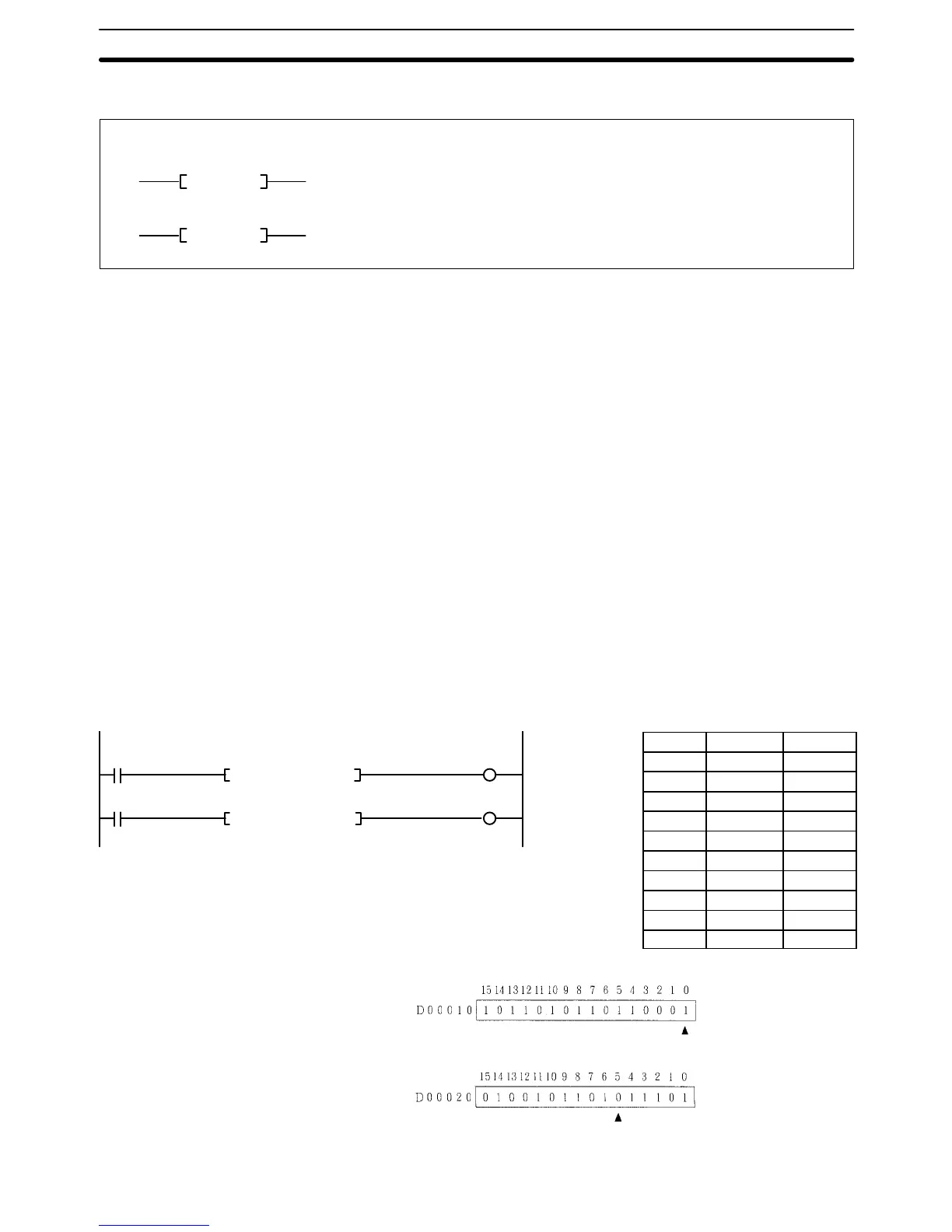

Example In the first instruction line below, when CIO 000000 turns ON, TST(350) checks
whether the designated bit (bit 00 in D00010) is ON or OFF. In this case, because
it is ON, CIO 005000 is turned ON.
In the second instruction line below, when CIO 000001 turns ON, TST(350)
checks whether the designated bit (bit 05 in D00020) is ON or OFF. In this case,
because it is OFF, CIO 005001 is turned ON.
Address Instruction Operands
00000 LD 000000
00001 TST(350)
D00010
#0000
00002 OUT 005000
00003 LD 000001
00004 TSTN(351)
D00020
#0005
00005 OUT 005001
Designated bit
Designated bit
