5-7-3 SET and RESET: SET(016) and RSET(017)
SET: SET(016)
(016)
SET B
B: Bit CIO, G, A
Operand Data AreaLadder Symbol
Variations
jSET(016)
!jSET(016)
iSET(016)
!iSET(016)
!SET(016)
RESET: RSET(017)
(017)
RSET B
B: Bit CIO, G, A
Operand Data AreaLadder Symbol
Variations
jRSET(017)
!jRSET(017)
iRSET(017)
!iRSET(017)
!RSET(017)
Description SET(016) turns the operand bit ON when the execution condition is ON, and
does not affect the status of the operand bit when the execution condition is OFF.
RSET(017) turns the operand bit OFF when the execution condition is ON, and
does not affect the status of the operand bit when the execution condition is OFF.
The operation of SET(016) differs from that of OUT because the OUT instruction
turns the operand bit OFF when its execution condition is OFF. Likewise,
RSET(017) differs from OUT NOT because OUT NOT turns the operand bit ON
when its execution condition is OFF.

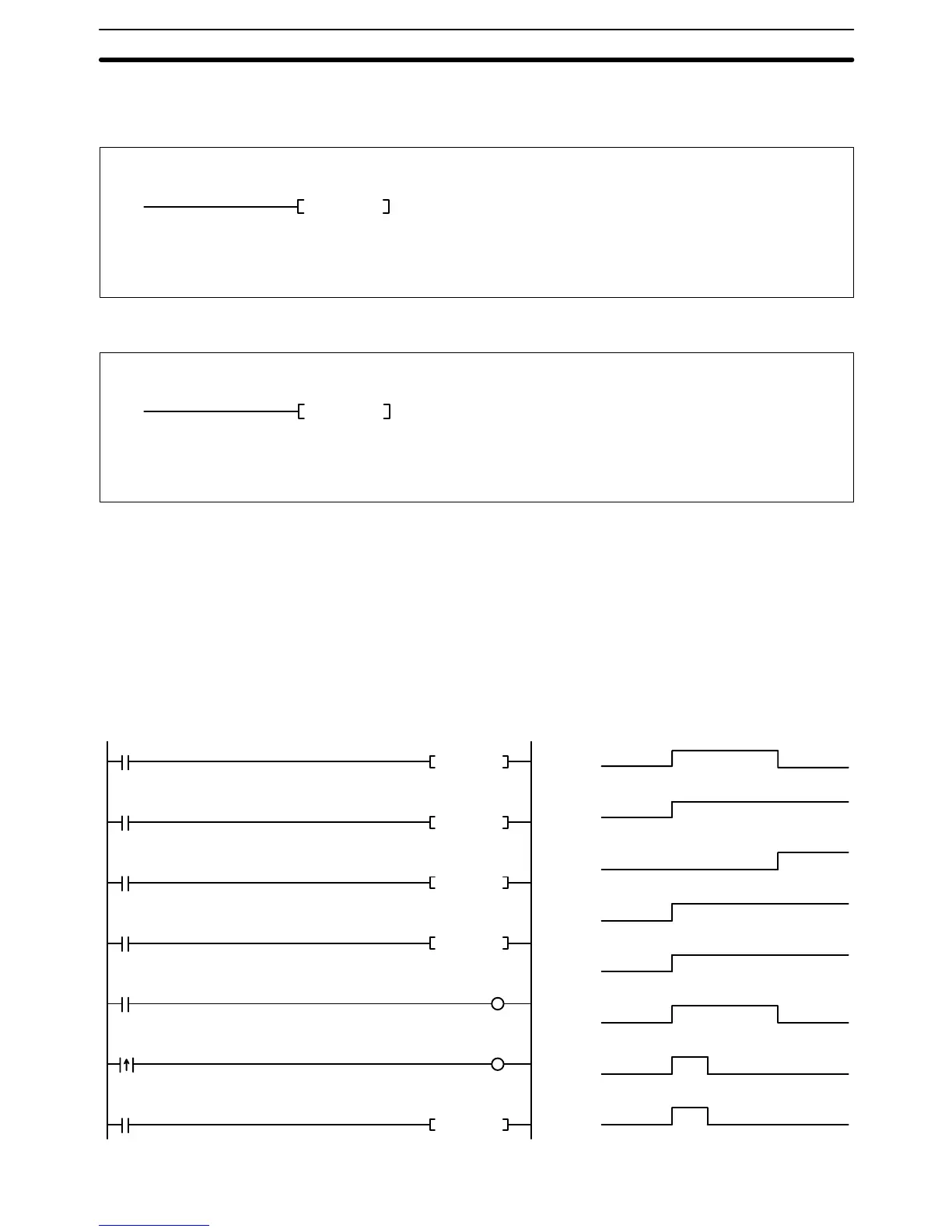

The following example shows the operations of the variations of SET(016).
0000
00
0000
00
0000
00
0000
00
0000
00
0000
00
0000
00
0001
05
0001
04
(013)
DIFU 000106
(016)
SET 000103
(016)
jSET 000102
(016)
iSET 000101
(016)
SET 000100
000100
000101
000102
000103
000104
000105
000106
000000
