N (A50008): The result is a negative number.
OF (A50009): The absolute value of the result is greater than the maximum
value that can be expressed for floating-point data.
UF (A50010): OFF when the computation is executed.
5-21-14 SINE TO ANGLE: ASIN(463)
(463)
ASIN S R
Ladder Symbol
Variations
↑ASIN(463)
Operand Data Areas
S: First source word CIO, G, A, T, C, #, DM
R: First result word CIO, G, A, DM

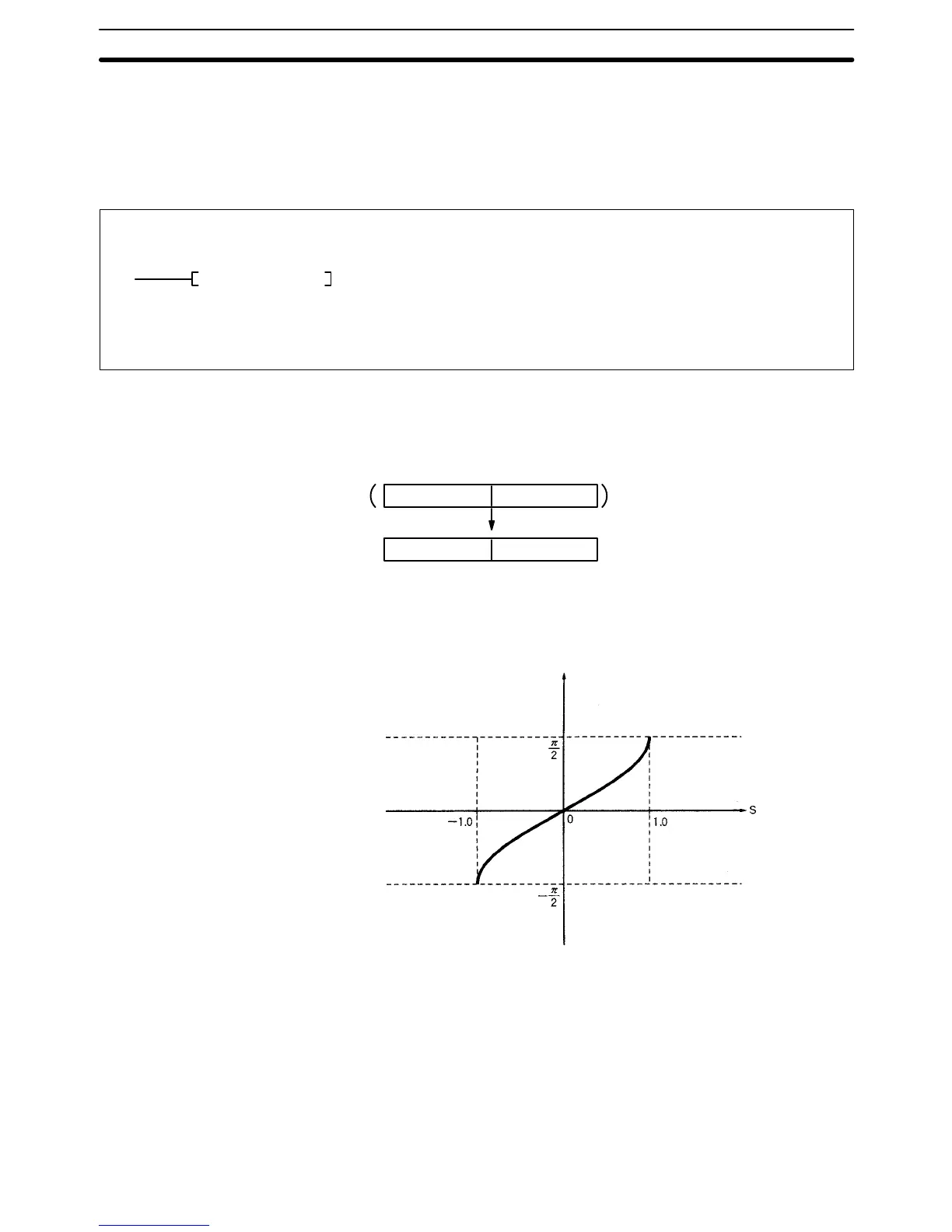

When the execution condition OFF, ASIN(463) is not executed. When the
execution condition is ON, ASIN(463) computes angle (in radians) for a sine ex-
pressed as the 32-floating-point content of S and S+1, and places the result in R
and R+1.
R+1 R
S Source (floating-point data, 32 bits)
S+1
Result (floating-point data, 32 bits)
SIN
–1
The result is output to words R+1 and R as an angle (in radians) within the range
of –π/2 to π/2.
Relation Between Input Data and Result
S: Input data (sine)
R: Result (radians)
R
Precautions The sine must be floating-point data within the range of –1.0 to 1.0.
Note Refer to page 115 for general precautions on operand data areas.
Flags ER (A50003): The sine data is not within the range of –1.0 to 1.0.
The sine data is not floating-point data.
The content of a*DM word is not BCD when set for BCD.
EQ (A50006): The exponent and mantissa of the result are 0.
N (A50008): The result is a negative number.
Description
(CVM1 V2)
Floating-point Math Instructions
Section 5-21
