Omron SYSMAC CV Series - Keep: Keep(011)

132
Unchanged
Unchanged
Unchanged
Unchanged
CIO 0005
CIO 0006
CIO 0007
CIO 0010
CIO 0011
CIO 0012

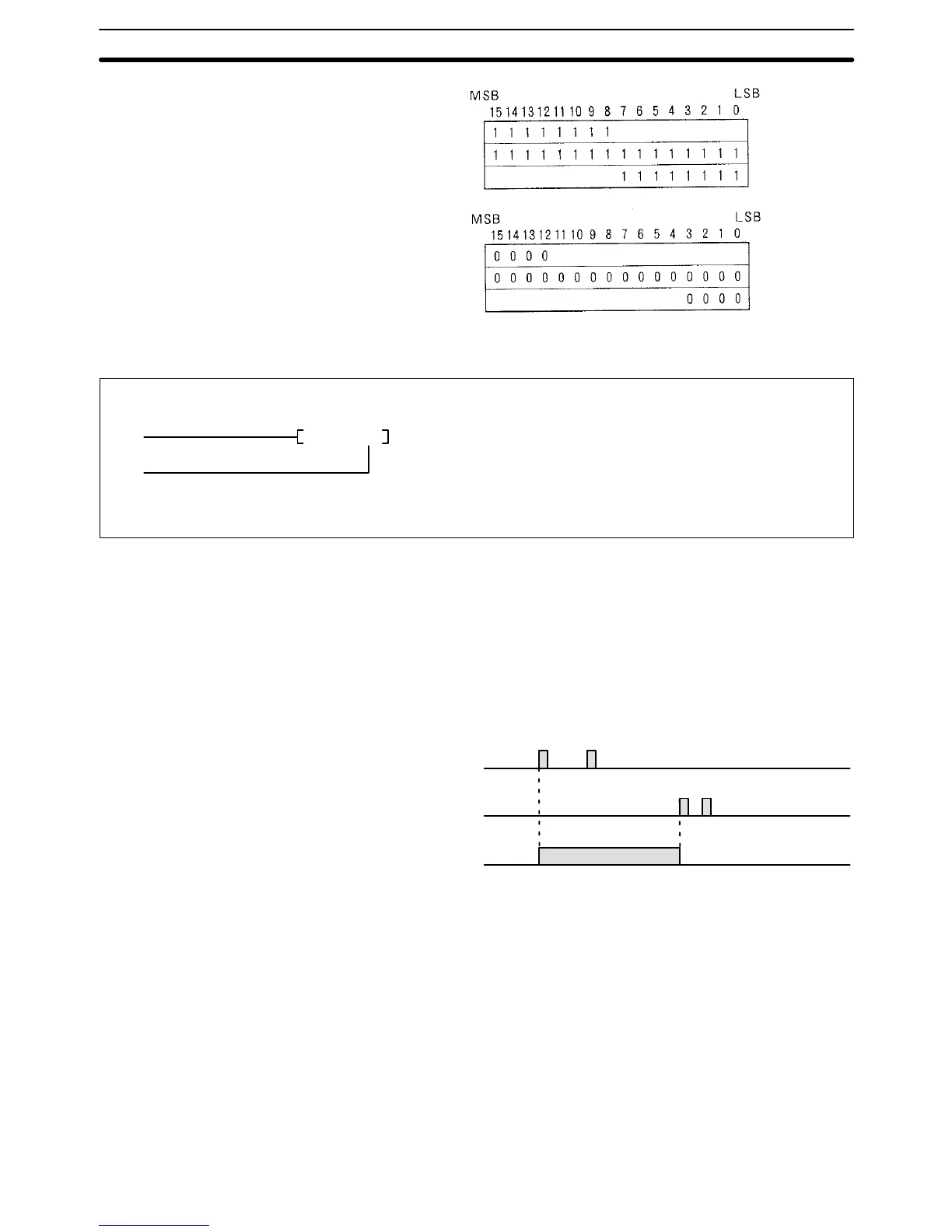

5-7-5 KEEP: KEEP(011)
(011)
KEEP B
B: Bit CIO, G, A
Operand Data AreaLadder Symbol
Variations
!KEEP(011)
S
R
Description KEEP(011) is used to maintain the status of the designated bit based on two
execution conditions. These execution conditions are labeled S and R. S is the
set input; R, the reset input. KEEP(011) operates like a latching relay that is set
by S and reset by R.
When S turns ON, the designated bit will go ON and stay ON until reset, regard-
less of whether S stays ON or goes OFF. When R turns ON, the designated bit
will go OFF and stay OFF until reset, regardless of whether R stays ON or goes
OFF. The relationship between execution conditions and KEEP(011) bit status is
shown below.
S execution condition
R execution condition
Status of B
Bit Control Instructions Section 5-7
