(048)
RSTA 0010 #0012 #0004
(047)
SETA 0005 #0008 #0008
0000
00
0000
01
(048)
RSTA 0010 #0012 #0024
(047)
SETA 0005 #0008 #0032
0000
00
0000
01
131
Precautions N
1
must be between 0000 and 0015 and must be BCD. N
2
must be BCD.
Note: Refer to page 115 for general precautions on operand data areas.
Flags ER (A50003): N
1
is not 0000 to 0015 BCD.
N
2
is not BCD.
Content of *DM word is not BCD.

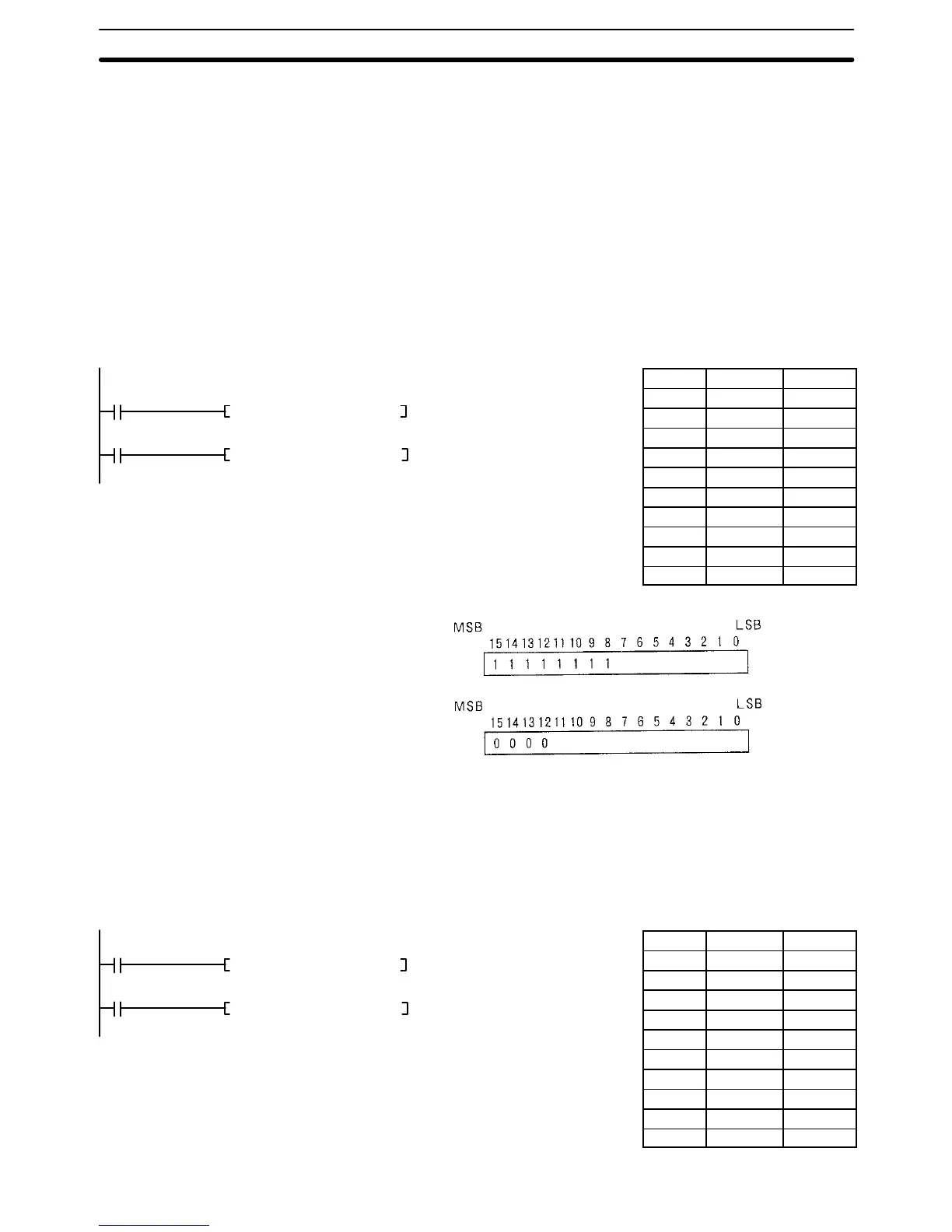

Example 1 SETA Operation
When CIO 000000 turns ON in the first instruction line in the following example,
eight bits beginning with bit 08 in CIO 0005 are all turned ON.
RSTA Operation
When CIO 000001 turns ON in the second instruction line, the eight bits begin-
ning with bit 12 in CIO 0010 are all turned OFF.
Address Instruction Operands
00000 LD 000000
00001 SETA(047)
0005
#0008
#0008
00002 LD 000001
00003 RSTA(048)
0010
#0012
#0004
Unchanged
Unchanged
CIO 0005
CIO 0010
Example 2 SETA Operation
When CIO 000000 turns ON in the first instruction line in the following example,
32 bits beginning with bit 08 in CIO 0005 are all turned ON.
RSTA Operation
When CIO 000001 turns ON in the second instruction line, 24 bits beginning with
bit 12 in CIO 0010 are all turned OFF.
Address Instruction Operands
00000 LD 000000
00001 SETA(047)
0005
#0008
#0032
00002 LD 000001
00003 RSTA(048)
0010
#0012
#0024
Bit Control Instructions Section 5-7
