4. Close the cover.

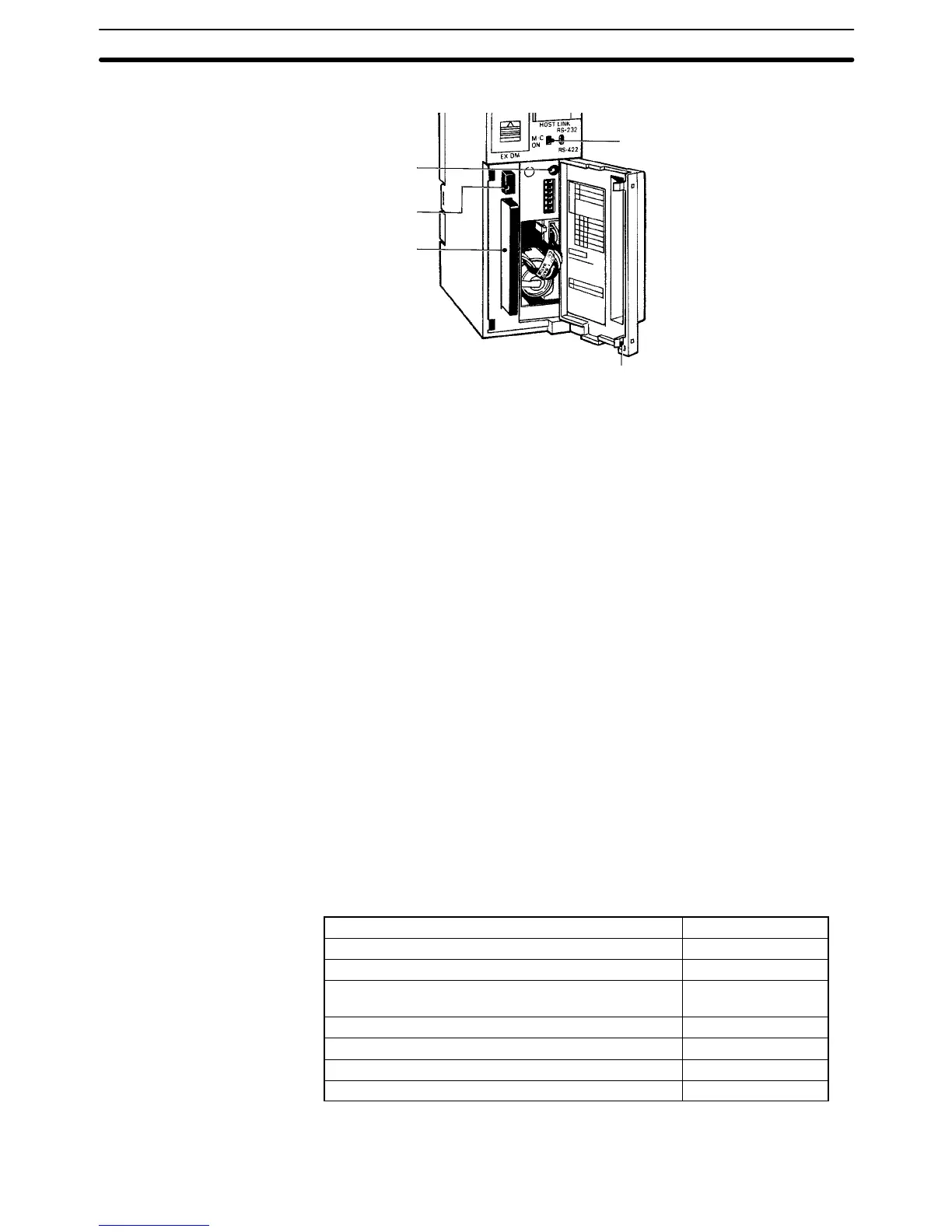

Memory Card indicator
Memory Card
ON/OFF switch
Memory Card
eject button
Memory Card
Cover
Removing a Memory Card
1, 2, 3... 1. Open the cover of the Memory Card compartment.
2. Press the Memory Card ON/OFF switch once if the Memory Card indicator
is lit. The Memory Card indicator will turn OFF.
3. Press the Memory Card eject button. The Memory Card will be released al-
lowing it to be removed.
4. Pull out the Memory Card.
5. Close the cover.
Note 1. Do not expose the Memory Card to high temperature, humidity, or direct
sunlight.
2. Do not bend the Card or subject it to shock.
3. Do not apply excess force to the Card when inserting or removing it.
4. Do not remove the Card while the Memory Card indicator is lit; doing so may
result in data errors in the memory.
2-3-2 File Transfer between the CPU and Memory Card
Data files can be transferred between the Memory Card and PC data areas with
the FILR(180) and FILW(181) instructions. A program file can be transferred
from the Memory Card with FILP(182) or FLSP(183) to change the program dur-
ing operation. Refer to details on these instructions later in the manual.
Memory Card files are identified by both their filename and filename extension.
The following table lists the filenames and filename extensions that are used
with the PC. Filenames are eight characters long and recorded in ASCII. If fewer
than eight characters are needed, enter spaces (ASCII 20) in the remaining by-
tes.
Type of file Filename
Extended PC Setup
1
filename .STD
Data files filename .IOM
Ladder program files (files saved with the partial save
operation)
filename .LDP
SFC program files (one step) filename .SFC
Program file (complete program) filename .OBJ
Extended PC Setup
1
(transferred at start-up) AUTOEXEC.STD
Program file (complete program transferred at start-up) AUTOEXEC.OBJ
Note 1. Extended PC Setup includes the PC Setup, I/O table, routing tables, data
link tables for data links in SYSMAC LINK and SYSMAC NET Link Systems,
Memory Card Files
