Omron SYSMAC CV Series - Write Step Timer: Tsw(125)

0000
00
(124)
TSR #0100 D00500
0000
00
(125)
TSW D00500 #0100
436
Flags ER (A50003): ON when the N is set outside of the range.
On when the content of *DM or *EM word is not BCD.

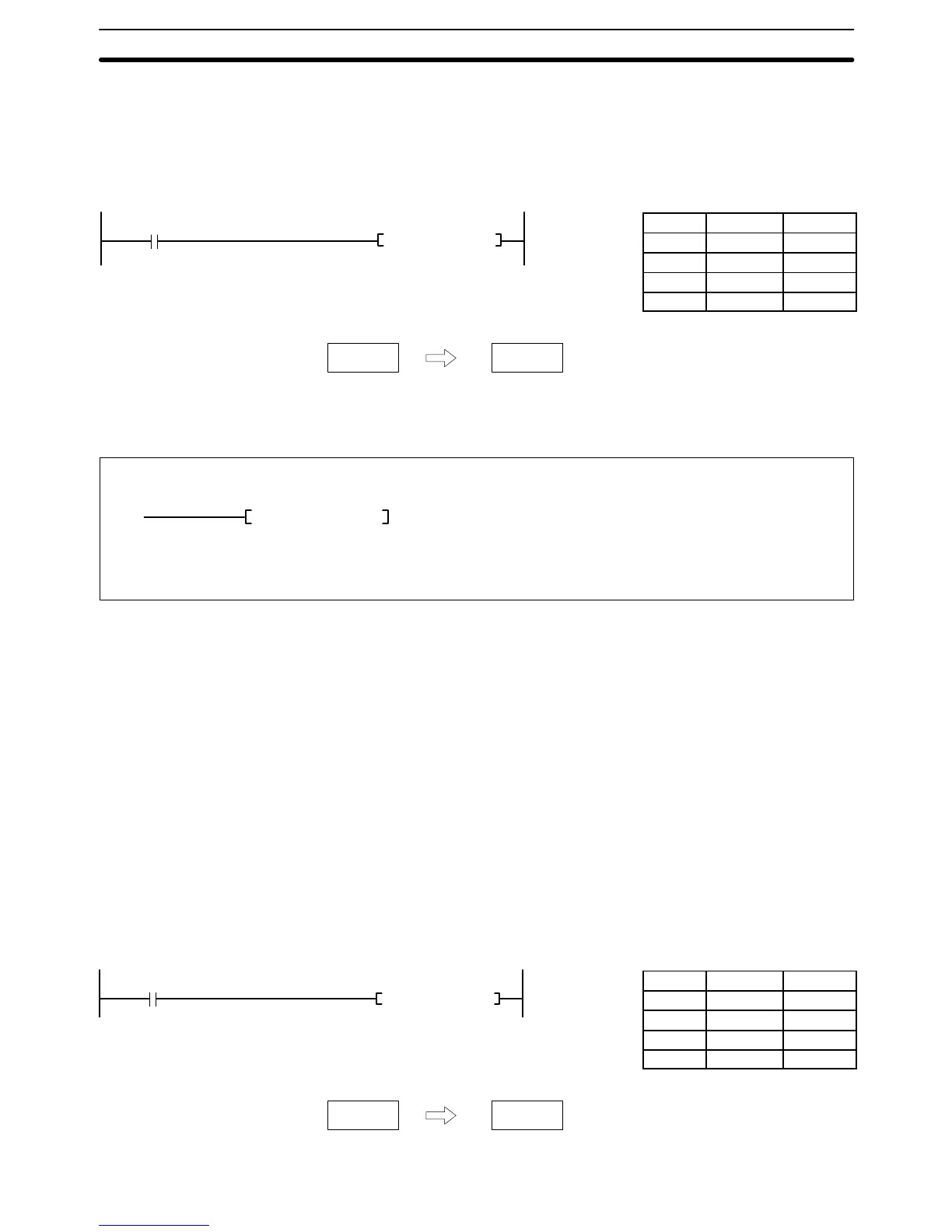

Example When CIO 000000 is ON in the following example, the present value of the step
timer for step ST0100 will be output to D00500 in binary data. This is unrelated to
the active/inactive status of the step.
Address Instruction Operands
00000 LD 000000
00001 TSR(124)
#0100
D00500
64A8 64A8
PV of step 0100 timer
Unit Time
0.1 s 2576.8 s
1 s 25768 s
D005000
5-37-10 WRITE STEP TIMER: TSW(125)
(125)
TSW S N
N: Step number CIO, G, A, T, C, #, DM, DR, IR
S: Source CIO, G, A, T, C, DM, DR, IR
Operand Data AreasLadder Symbol
Variations
j TSW(125)
Description When the execution condition is OFF, TSW(125) is not executed. When the
execution condition is ON, TSW(125) changes the present value (PV) of the step
timer. If TSW(125) is executed with an ON execution condition, the contents of
word S is written as the present value for the step timer for step N. When
executed with an OFF execution condition, TSW(125) does nothing.
Refer to the previous instruction for details on set timers.
Precautions The contents of S must be set with binary data.
Step timers are used to control the execution timing of actions with certain AQ.
Be careful when making changes with TSW(125).
Flags ER (A50003): ON when the N is set outside of the range.
ON when the content of *DM or *EM word is not BCD.
Example When CIO 000000 is ON in the following example, the contents of D00500
($7E3A) will be written as the present value for the step timer of step ST0100.
This is unrelated to the active/inactive status of the step.
Address Instruction Operands
00000 LD 000000
00001 TSW(125)
D00500
#0100
7E3A 7E3A
PV of step ST0100 timer
Unit Time
0.1 s 3231.4 s
1 s 32314 s
D005000
SFC Control Instructions Section 5-37
