Data can also be transferred to other BASIC Units mounted on the same PC, or
to BASIC Units mounted to other PCs connected by networks formed using a
SYSMAC NET Link or SYSMAC LINK System. RS-232C, RS-422, Centronics,
and GPIB interfaces are available.

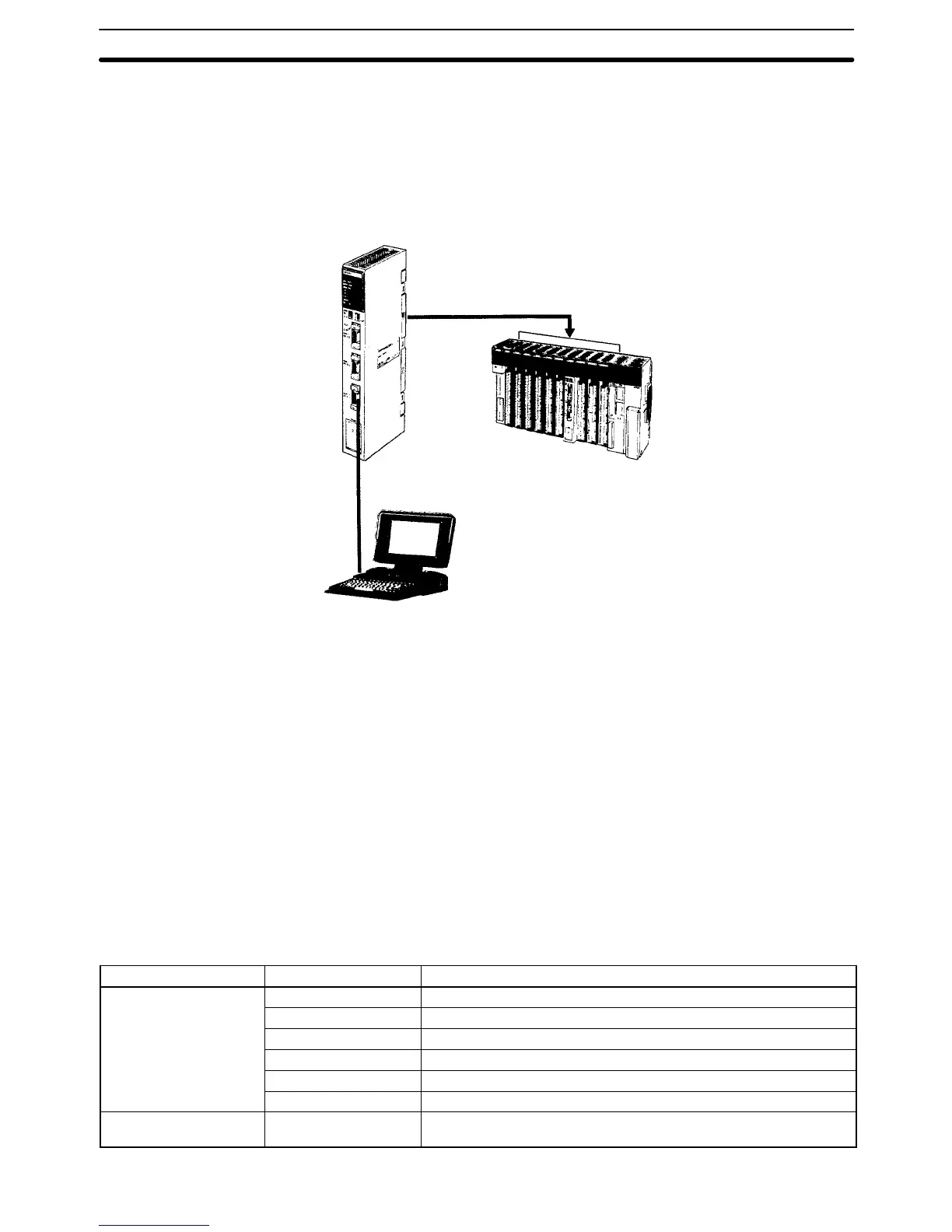

BASIC Unit
CV500-BSC1
Personal com-
puter
CV-series
CPU Rack/Expansion
CPU Rack
Personal Computer Unit The Personal Computer Unit is a full-fledged IBM PC/AT compatible that can be
used to run independent programming directly on a Rack to eliminate the need
for separate installation space. It can run along or connected to any of the normal
peripherals supported by IBM PC/AT compatibles (mice, keyboards, monitors,
data storage devices, etc.), and as a CPU Bus Unit, the Personal Computer Unit
interfaces directly to the PC’s CPU though the CPU bus to eliminate the need for
special interface hardware, protocols, or programming.
1-11 New CPUs and Related Units
The following new CV-series CPUs and related Units are included in this version
of the manual for the first time. Refer to relevant sections of this manual or the
CV-series PC Operation Manual: Ladder Diagrams for further details.
Unit Model number Main specifications
CPU
CVM1-CPU01-EV2 I/O capacity: 512 pts; Ladder diagrams only
CVM1-CPU11-EV2 I/O capacity: 1,024 pts; Ladder diagrams only
CVM1-CPU21-EV2 I/O capacity: 2,048 pts; Ladder diagrams only
CV500-CPU01-EV1 I/O capacity: 512 pts; Ladder diagrams or SFC + ladder diagrams
CV1000-CPU01-EV1 I/O capacity: 1,024 pts; Ladder diagrams or SFC + ladder diagrams
CV2000-CPU01-EV1 I/O capacity: 2,048 pts; Ladder diagrams or SFC + ladder diagrams
Temperature Controller
Data Link Unit
CV500-TDL21 Connects up to 64 temperature controllers via 2 ports.
New CPUs and Related Units Section 1-11
