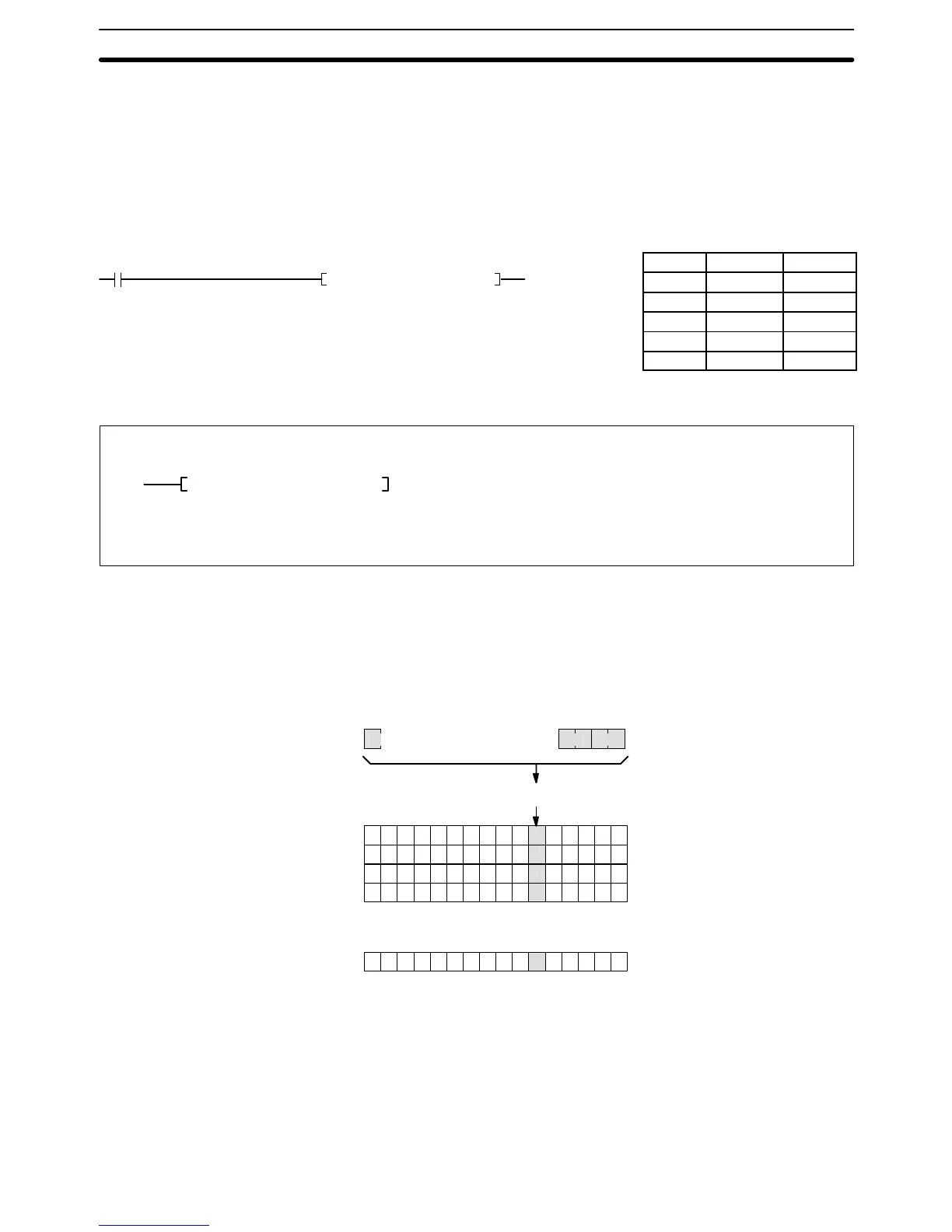

Omron SYSMAC CV Series - Line to Column: Colm(116)

0000
00
(115)
LINE D00100 #0008 D00005
238
Flags ER (A50003): Content of *DM word is not BCD when set for BCD.
The bit designator Bi is not BCD, or it is specifying a non-ex-
istent bit (i.e., bit specification must be between 00 and 15).
EQ (A50006): Content of D is 0 after execution
Example When CIO 000000 is ON in the following example, the status of bits number 08 in
D00100 through D00115 are output in order to D00005, with the status of bit 08
in D00100 being output to bit 00 of D00005.
Address Instruction Operands
00000 LD 000000
00001 LINE(115)
D00100
#0008
D00005
5-17-14 LINE TO COLUMN: COLM(116)
Variations
j COLM(116)
(116)
COLM S D Bi
Operand Data AreasLadder Symbol
S: Source word CIO, G, A, T, C, #, DM, DR, IR
Bi: Bit designator CIO, G, A, T, C, #(BCD), DM, DR, IR
D: 1
st
destination word CIO, G, A, DM
When the execution condition is OFF, COLM(116) is not executed. When the
execution condition is ON, COLM(116) copies the 16 bits of word S (00 to 15) to
bit Bi of the 16-word set D through D+15, i.e., bit n of S is copied to bit Bi of D+n,
for n=00 to 15. In the following example, Bi would be 5.
0
0 0 0 0 111000100001
Bit
15
Bit
00
D
Bi
1101001001110001
D+1
0001101100100111
D+2
.
.
.
.
.
.
.
.
.
.
0111000110001010
D+15
1000001100000111
D+3
0 1 1
S
1
Bit
15
Bit
00
. . . . . .
.
.
.
Bi must be BCD between 0000 and 0015.
Note Refer to page 115 for general precautions on operand data areas.
Flags ER (A50003): Content of *DM word is not BCD when set for BCD.
The bit designator Bi is not BCD, or it is specifying a non-ex-
istent bit (i.e., bit specification must be between 00 and 15).
EQ (A50006): Content of S is 0
Description
Precautions
Conversion Instructions Section 5-17
