Remote I/O can also be enabled by using the C-series SYSMAC BUS Remote
I/O System with CV-series PC.
Remote I/O Master Units can be mounted on any slot of the CPU Rack, Expan-
sion CPU Rack, or Expansion I/O Rack. Up to four Masters can be mounted for
the CV500 or CVM1-CPU01-EV2, up to eight Masters for the CV1000, CV2000,
CVM1-CPU11-EV2, or CVM1-CPU21-EV2.
For each Master, up to two Slave Racks can be connected for the CV500 or
CVM1-CPU01-EV2; up to eight Slave Racks for the CV1000, CV2000,
CVM1-CPU11-EV2, or CVM1-CPU21-EV2. No more than 16 Slave Racks can
be connected per PC.
Slaves can be used to provide up to 512 remote I/O points for the CV500 or
CVM1-CPU01-EV2; up to 1,024 remote I/O points for the CV1000, CV2000, or
CVM1-CPU11-EV2, and up to 2,048 remote I/O points for the
CVM1-CPU21-EV2.
Programming Devices cannot be connected to SYSMAC BUS Slave Racks.
When a C200H 10-slot Backplane is used is used as a SYSMAC BUS Slave
Rack, only the eight leftmost slots can be used.

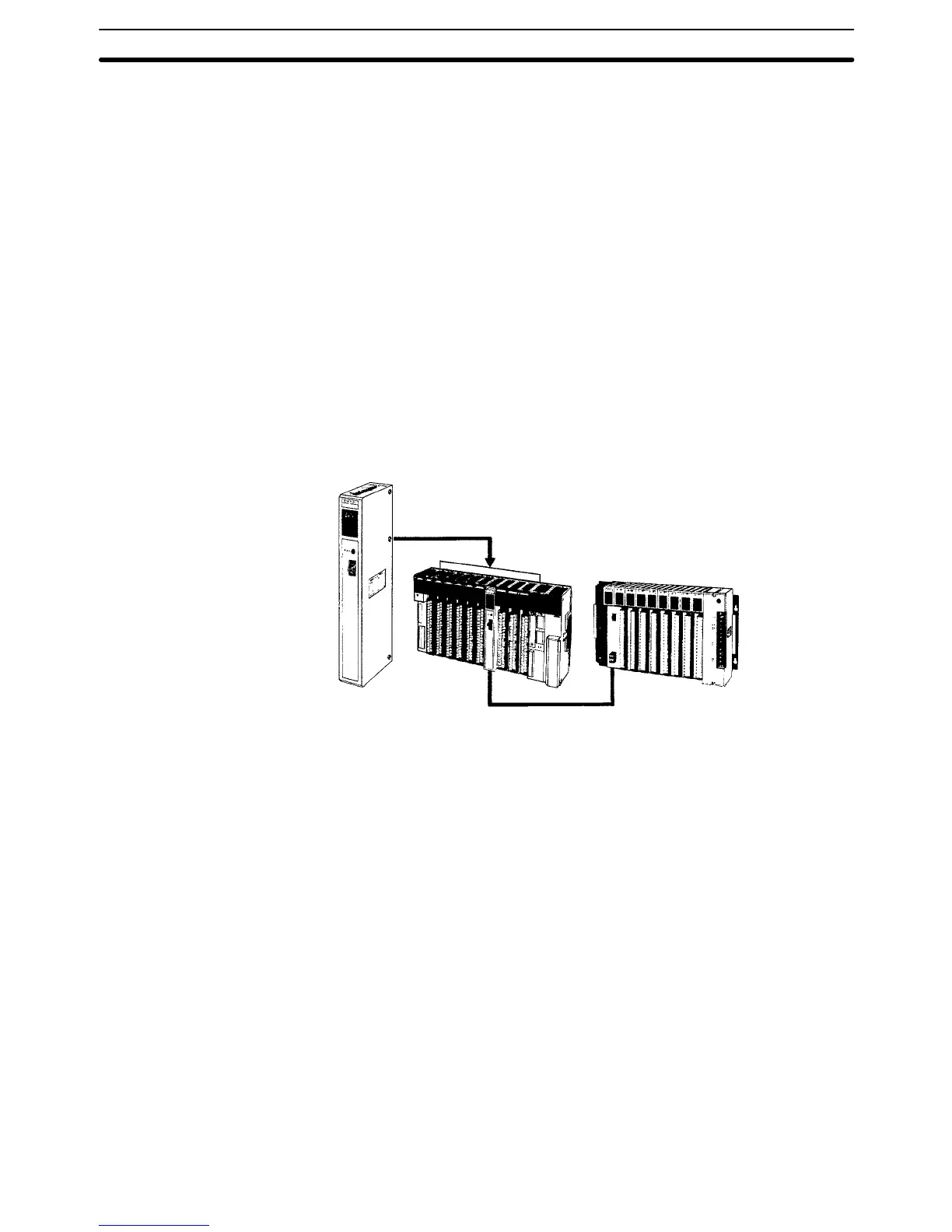

Remote I/O Master Unit
3G2A5-RM001-(P)EV1 (optical)
C500-RM201 (wired)
Up to 8 Units
CV-series
CPU Rack/Expansion CPU
Rack/Expansion I/O Rack
C-series
Remote I/O Slave Rack
SYSMAC BUS Remote I/O
System
