Omron SYSMAC CV Series - Page 307

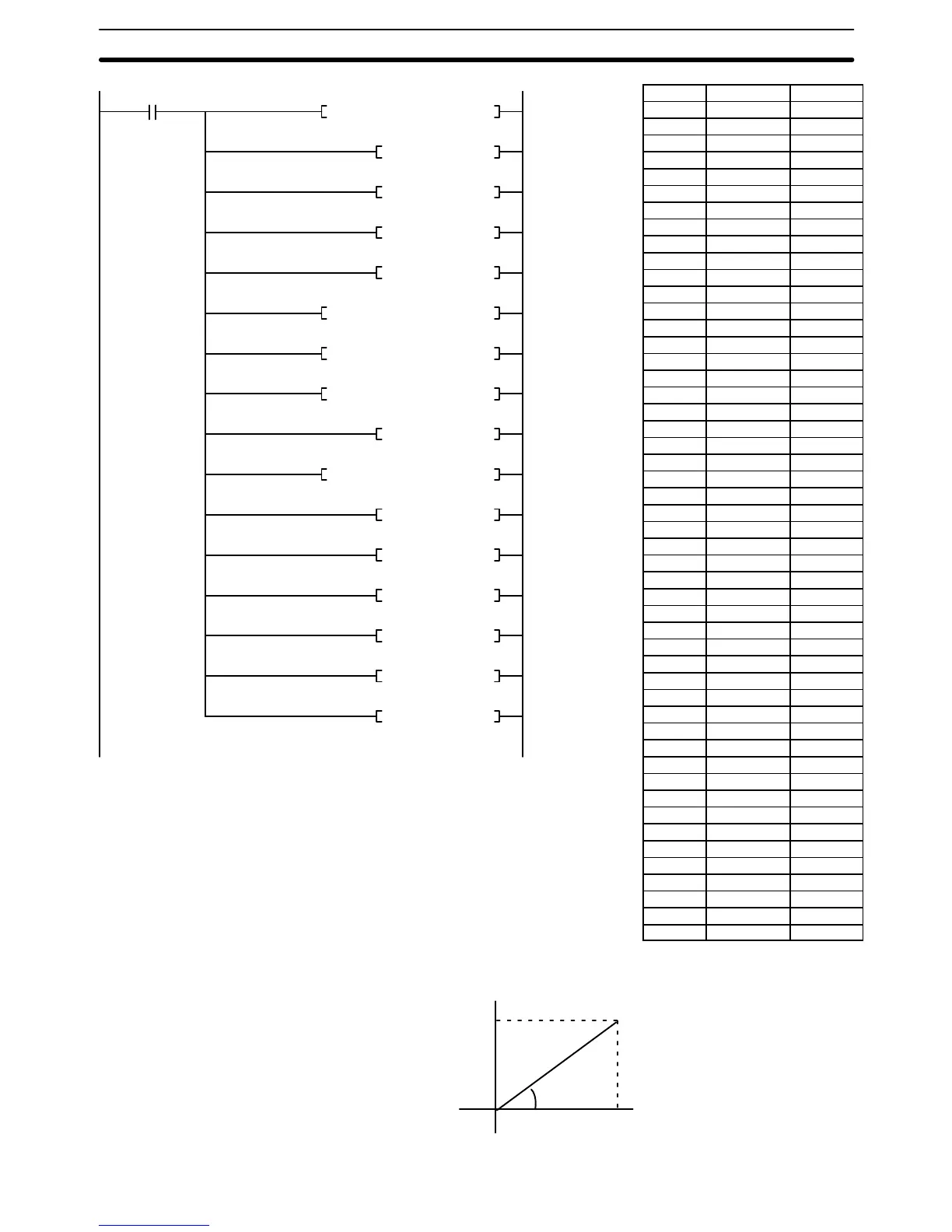

(041)
BSET #0000 D00100 D00101
0000
00
(100)
BIN D00000 D00200
(100)
BIN D00001 D00201
(452)
FLT D00200 D00202
(452)
FLT D00201 D00204
(456)
*F D00202 D00202 D00206
(456)
*F D00204 D00204 D00208
(454)
+F D00206 D00208 D00210
(466)
SQRT D00210 D00212
(457)
/F D00204 D00202 D00214
(465)
ATAN D00214 D00216
(459)
DEG D00216 D00218
(450)
FIX D00212 D00220
(450)
FIX D00218 D00221
(101)
BCD D00220 D00100
(101)
BCD D00221 D00101
(1)
(3)
(4)
(5)
(2)
295
Address Instruction Operands
00000 LD 000000
00001 BSET(041)
#0000
D00100
D00101
00002 BIN(100)
D00000
D00200
00003 BIN(100)
D00001
D00201
00004 FLT(425)
D00200
D00202
00005 FLT(425)
D00201
D00204
00006 *F(456)
D00202
D00202
D00206
00007 *F(456)
D00204
D00204
D00208
00008 SQRT(466)
D00210
D00212
00009 /F(457)
D00204
D00202
D00214
00010 ATAN(465)
D00212
D00216
00011 DEG(459)
D00216
D00218
00012 FIX(450)
D00212
D00220
00013 FIX(450)
D00218
D00221
00014 BCD(101)
D00220
D00100
00015 BCD(101)
D00221
D00101
0
y
x
P (100, 100)
θ
Floating-point Math Instructions
Section 5-21
