Omron SYSMAC CV Series - Page 393

010000
000000
010001
010000
010001
000001 000002
010500
000200
010501
010500
010501
000201 000202
012000
000500
012001
012000
012001
000501 000502
015000
001000
015001
015000
015001
001001 001002
381
Input
(Processing)
Output
Return
Call
Main Program Subroutine
CIO 0200
CIO 0201
CIO 0202
CIO 0203
CIO 0300
CIO 0301
CIO 0302
CIO 0303
A200
A201
A202
A203
A204
A205
A206
A207

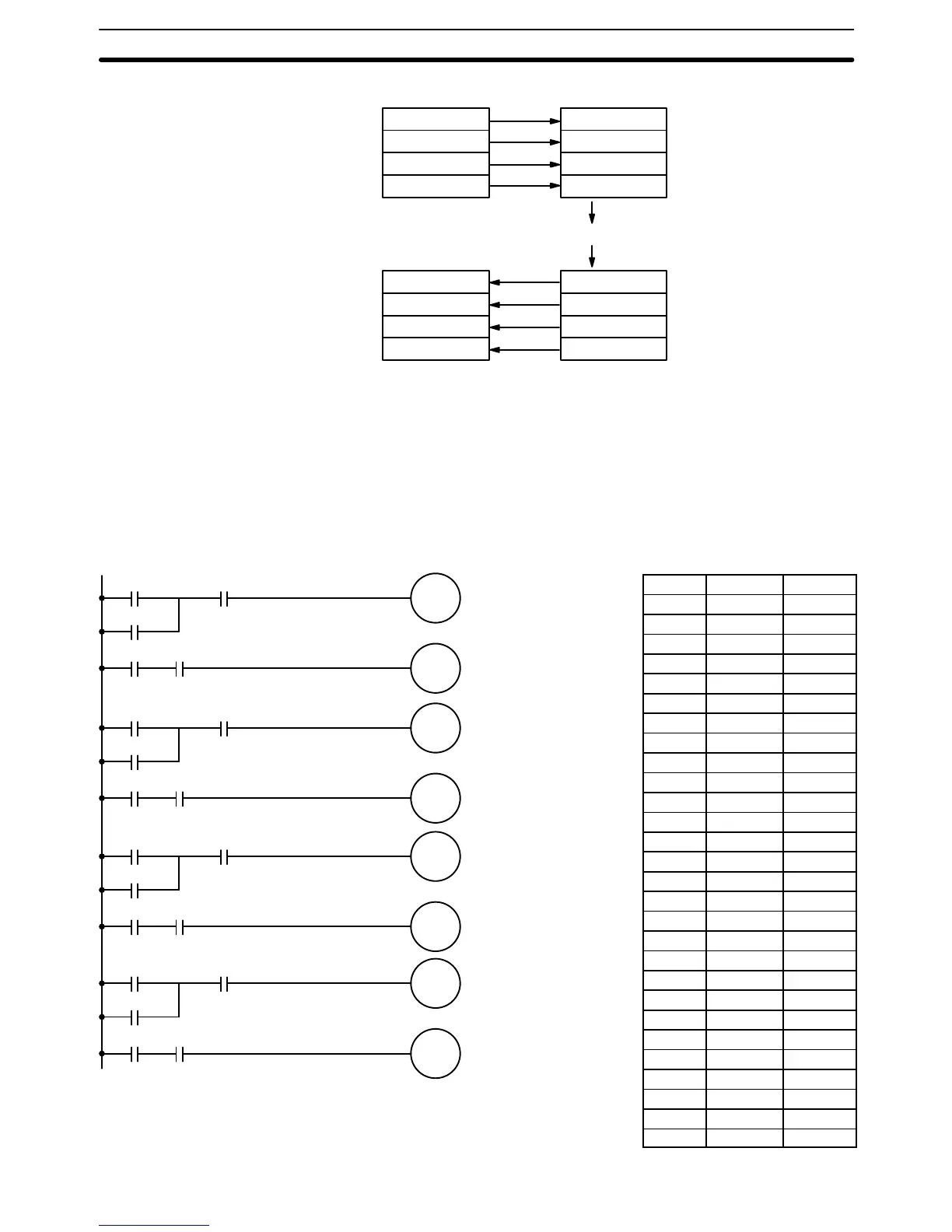

Program Examples The following examples show how MCRO(156) can be used to simplify a pro-
gram. The second program section uses MCRO(156), whereas the first one
does not.
Address Instruction Operand
00000 LD 000000
00001 OR 010000
00002 AND 010001
00003 OUT 010000
00004 LD 000001
00005 AND 000002
00006 OUT 010001
00007 LD 000200
00008 OR 010500
00009 AND 010501
00010 OUT 010500
00011 LD 000201
00012 AND 000202
00013 OUT 010501
00014 LD 000500
00015 OR 012000
00016 AND 012001
00017 OUT 012000
00018 LD 000501
00019 AND 000502
00020 OUT 012001
00021 LD 001000
00022 OR 015000
00023 AND 015001
00024 OUT 015000
00025 LD 001001
00026 AND 001002
00027 OUT 015011
Subroutines Section 5-30
