394

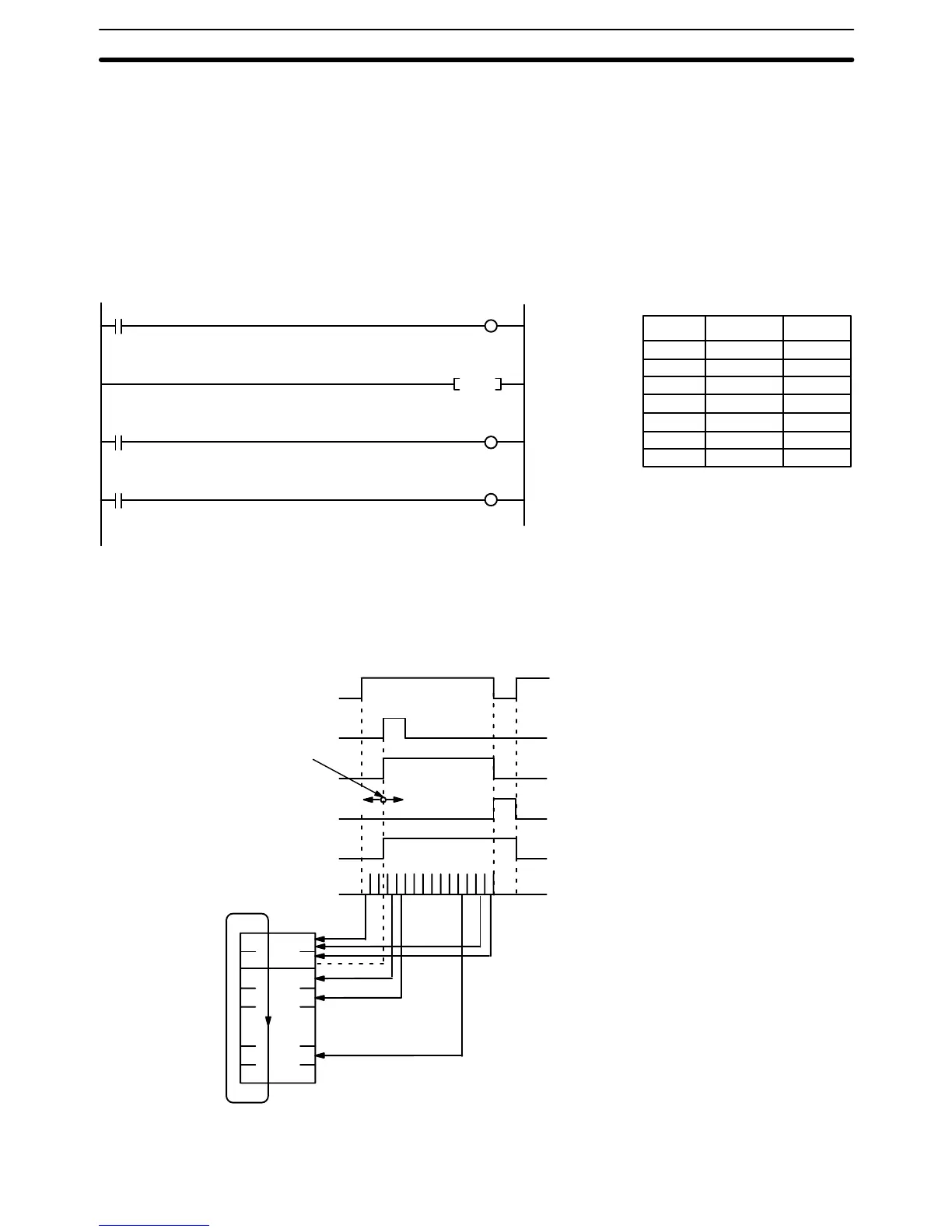

made will be recorded as the trace memory (negative delay), or that more sam-
ples will be made before they are recorded (positive delay). The sampled data is
written to trace memory, jumping to the beginning of the memory area once the
end has been reached and continuing up to the start marker. This might mean
that previously recorded data (i.e., data from this sample that falls before the
start marker) is overwritten (this is especially true if the delay is positive). The
negative delay cannot be such that the required data was executed before sam-
pling was started.
0002
01
0002
00
A008
13
A008
12
A008
14
0000
00
(170)
TRSM
Trace Trigger Bit
Indicates trace is
in progress.
Indicates trace is finished.
InstructionAddress Operands
00000 LD 000000
00001 OUT A00814
00002 TRSM(170)
00003 LD A00813
00004 OUT 000200
00005 LD A00812
00006 OUT 000201
A00815
A00814
A00813
A00812
Sampling
Trace memory
A00812 turns ON and the
trace is complete when
enough data to fill trace
memory has been sampled.
Sampling
Start tracing
Tracing Flag
Trace Completed Flag
Positive
delay
*Negative
delay
No delay
*Negative delays cannot be such that the
requested data was executed before the
sampling started.
A00811
Trace Start Monitor Flag
Data Tracing Section 5-33
