Omron SYSMAC CV Series User Manual

0000
00
A343
13
(182)
FILP 0500
401

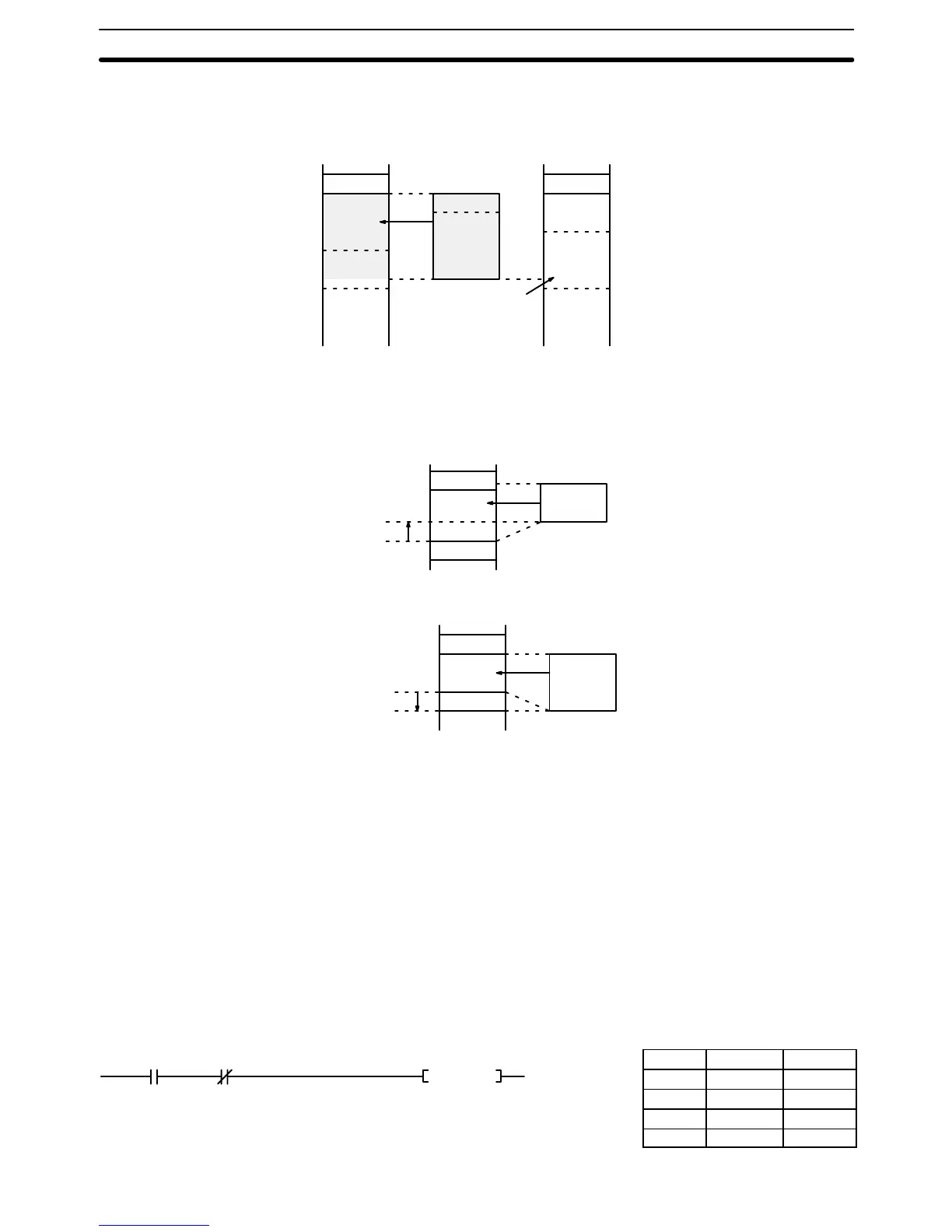

If the program file is shorter than the original ladder program from FILP(182) to
END(001) and doesn’t end in END(001), be sure that the program file doesn’t
overwrite only the first part of an instruction in the original ladder program creat-
ing an instruction format error.
FILP
M0V
0100
D00300
M0V
#ABCD
D02200
FILP
Program file
Improper
instruction
to
M0V
#00FF
D02000
to
M0V
#00FF
D02000
D00300
M0V
#ABCD
D02200
to
When the Write Method Bit (C bit 07) is OFF, FILP(182) will erase the current
ladder program from the instruction just after FILP(182) to END(001), then insert
the program file. It is not necessary for the program file to end in END(001).
If the program file is shorter than the original ladder program from FILP(182) to
END(001), the ladder program will be shorter after FILP(182) is executed.
FILP
END
Program
file
Area reduced
Delete
If the program file is longer than the original ladder program from FILP(182) to
END(001), the ladder program will be longer after FILP(182) is executed.
FILP
END
Program
file
Area increased
Delete
FILP(182) cannot be used in an interrupt program.
The instruction trace operation and online editing cannot be performed while
FILP(182) is being executed.
Write the execution condition for FILP(182) so that the instruction will not be
executed if the Memory Card Instruction Flag (A34313) is ON (when another
Memory Card instruction is being executed).
Note Refer to page 115 for general precautions on operand data areas.
Flags ER (A50003): A Memory Card is not mounted.
Content of *DM word is not BCD when set for BCD.
In the following example, the ladder program file “ABCD.LDP” is transferred
from the Memory Card using the “replace to END(001)” method. When
CIO 000000 is ON and A34313 (Memory Card Instruction Flag) is OFF, the
contents of ABCD.LDP is written over all instructions after the instruction line
containing FILP(182).
Address Instruction Operands
00000 LD 000000
00001 AND NOT A34313
00002 FILP(182)
0500
Replace to END(001)
Method
Precautions
Example
Memory Card Instructions Section 5-34
