IF<002> 000001
+B(404)
0001
#0001
D00000
ELSE<003>
+B(404)
0001
#0002
D00000
IEND<004>
BEND<001>
LD 000003
AND 000004
IF<002>
+B(404)
1200
0002
D00010
IF<002> A50004
MOV(030)
#0001
D00011
IEND<004>
ELSE<003>
SET(016) 000301
IEND<004>
BEND<001>
(250)
BPRG 00
0000
00
(250)
BPRG 01
0000
02
442

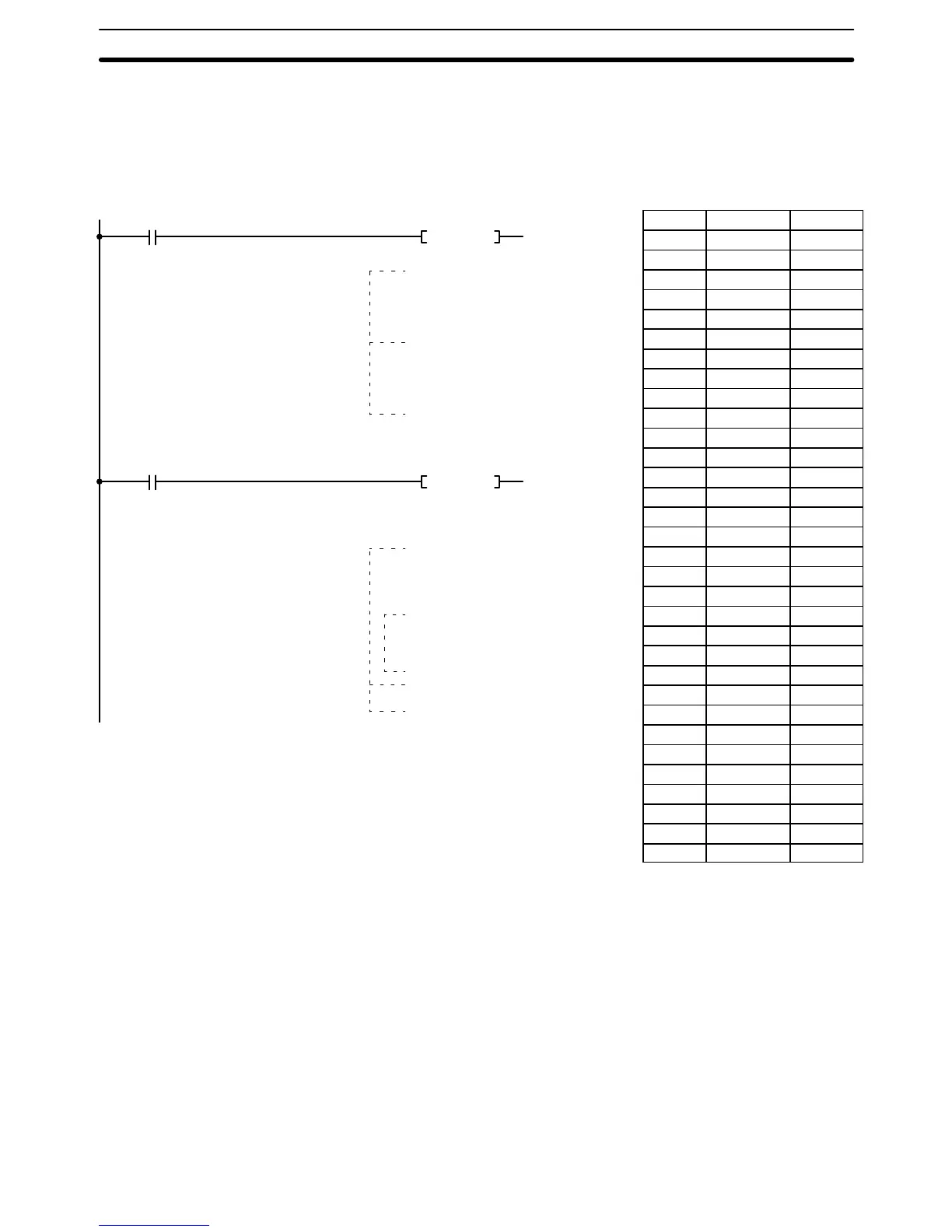

The second block is executed when CIO 000002 is ON and shows nesting two
levels. If CIO 000003 and CIO 000004 are both ON, the contents of CIO 1200
and CIO 0002 are added and the result is placed in D00010 and then 0001 is
moved into D00011 based on the status of CY. If either CIO 000003 or
CIO 000004 is OFF, then the entire addition operation is skipped and
CIO 000301 is turned ON.
Address Instruction Operands
00000 LD 000000
00001 BPRG(250) 00
00002 IF<002> 000001
00003 +B(404)
0001
#0001
D00000
00004 ELSE<003>
00005 +B(404)
0001
#0002
D00000
00006 IEND<004>
00007 BEND<001>
00008 LD 000002
00009 BPRG(250) 01
00010 LD 000003
00011 AND 000004
00012 IF<002>
00013 +B(404)
1200
0002
D00010
00014 IF<002> A50004
00015 MOV(030)
#0001
D00011
00016 IEND<004>
00017 ELSE<003>
00018 SET(016) 000301
00019 IEND<004>
00020 BEND<001>
Block Programming Instructions Section 5-38
